Toyota RAV4 — CRANKSHAFT & PISTON

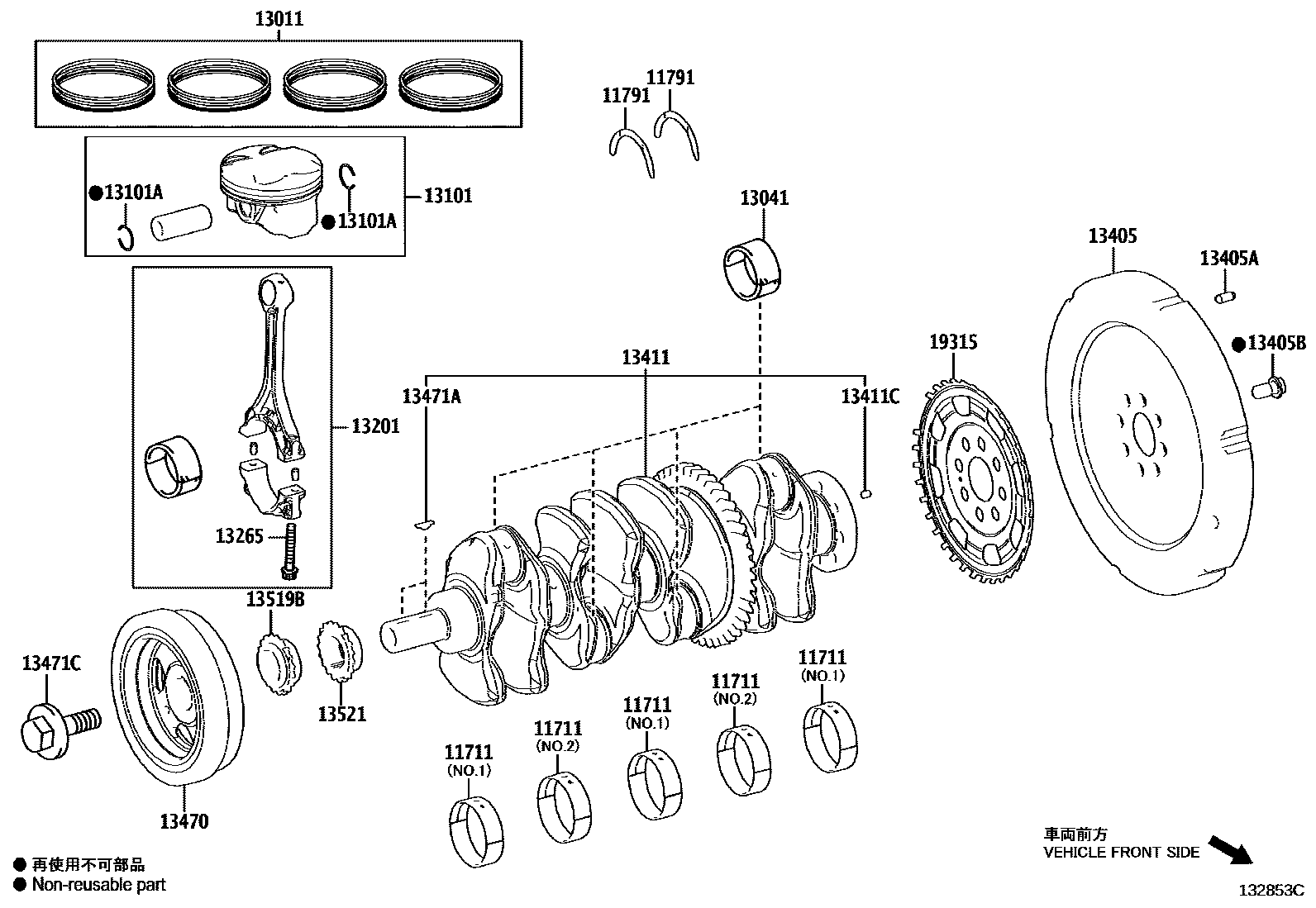

Parts diagram

11711BEARING, CRANKSHAFT

main11701-24010-01×5i201904-202007

main11701-24010-02×5i202210-202303

main11701-24010-03×5i202008-202209

main11701-24010-04×5i202008-202209

main11701-24010-05×5i201904-202007

main11701-24010-06×5i202210-202303

main11701-24011-01×5i202310-202410

main11701-24011-02×5i202310

main11701-24011-03×5i202310

main11701-24011-04×5i202303-202310

main11701-24011-05×5i202303-202310

main11701-24011-06×5i202310-202410

main11701-25010-01×3i201906-202007

main11701-25010-02×5i201904-201906

main11701-25010-03×5i202210-202310

main11701-25010-04×5i202210-202310

main11701-25010-05×5i202111-202210

main11701-25020-01×2i202008-202111

main11701-25020-02×2i202008-202111

main11701-25020-03×2i201906-202007

main11701-25020-04×2i201906-202007

main11701-25020-05×2i201906-202007

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202310-202410

main11791-24030×2i201904-201905

main11791-25030×2i202008-202102

main11791-25040×2i202310

13011RING SET, PISTON

main13011-24040i202008-202210

main13011-25080i202310-202410

13041BEARING, CONNECTING ROD

main13041-24020-01×4i201904-202007

main13041-24020-02×4i202310-202410

main13041-24020-03×4i202008-202210

main13041-25020-01×4i202008-202210

main13041-25020-02×4i202210-202310

main13041-25020-03×4i202310

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4i202008-202210

main13101-25040×4i202310

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202008-202210

main90520-21024×8i202310-202410

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4i202310-202410

main13201-29815-B0×4i202008-202210

main13201-29815-C0×4i202008-202210

main13201-29835-A0×4i202008-202210

main13201-29835-B0×4i202210-202310

main13201-29835-C0×4i202008-202210

13265BOLT, CONNECTING ROD

main13265-25020×8i201904-202007

13405FLYWHEEL SUB-ASSY

main13451-25030i201904-202007

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i201904-202007

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8i202210-202310

13411CRANKSHAFT

main13401-24020i202008-202210

main13401-25010i202310-202410

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202210-202310

13470PULLEY ASSY, CRANKSHAFT

main13470-24010i202310

main13470-25020i202008-202210

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i201904-202007

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202008-202210

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010i202008-202210

main13519-25010i202310-202410

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010i201904-202007

main13521-25010i202210-202310

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202310

main19315-25010i201904-201911

main19315-25011i202310

19 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota RAV4

This section contains 19 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RAV4. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
