Toyota RAV4 — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55524-12010-C0iAXAH5#,MXAA5#201904-202007

BLACK

main55524-42010-C0iAXAH52,MXAA52202310-202410

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-42030-C3iAXAH5#,MXAA5#..HBDX,X202008-202111

BLACK,TRIM1#,2#,4#

main58803-42050-C4iAXAH54,MXAA54..G,HBDG201904-202007

DK.BROWN,TRIM1#,2#,4#

main58803-42050-C5iMXAA54..ADVEN202008-202111

ORANGE,TRIM20,4#

main58803-42050-C6iMXAA54..ADVEN202008-202111

BLACK/SENSUAL RED,TRIM20

main58803-42090-C0iAXAH52,MXAA52202310-202410

BLACK,TRIM2#

main58803-42100-C1iMXAA54..ADVEN202112-202210

BLACK/SENSUAL RED,TRIM20

main58803-42100-C2iAXAH54,MXAA54..G202310

BLACK/DK.BROWN,TRIM2#

main58803-42100-C3iMXAA54..ADVEN202112-202210

BLACK/ORANGE,TRIM20,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42480iAXAH52,MXAA52202310-202410

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42100iAXAH5#,MXAA5#201904-202007

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42130-C0iMXAA54..ADVEN201904-202007

BLACK,TRIM1#,2#,4#

58810JBOX ASSY, CONSOLE

main58810-42050-C0iAXAH5#,MXAA5#..HBDX,X201904-202007

BLACK,TRIM1#,2#,4#

main58810-42060-C1iMXAA54..ADVEN201904-202007

BLACK,TRIM1#,2#,4#

58813BOX, CONSOLE, UPPER

main58813-42081-C2iAXAH54,MXAA54..ADVEN202310

BLACK/SENSUAL RED,TRIM20

main58813-42081-E4iAXAH54,MXAA54..ADVEN202310

ORANGE,TRIM20,4#

main58813-42090-C1supersedes 58813-42090-C1iAXAH52,MXAA52202310-202410

BLACK,TRIM2#

58815FCARPET, CONSOLE BOX

main58815-42040iAXAH5#,MXAA5#202210-202310

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-42030-C0iAXAH54,MXAA54..ADVEN202008-202210

BLACK,TRIM1#,2#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-42030-C0iAXAH5#,MXAA5#..G,X202210-202310

BLACK,TRIM2#

58825APOCKET, CONSOLE BOX

main58825-42030iAXAH54,MXAA54..G,HBDG201904-202007

58848COVER, SHIFT LEVER HOLE

main58848-42020iAXAH52,MXAA52202310-202410

58860AREGISTER ASSY, CONSOLE BOX

main58860-48050-C2iAXAH54,MXAA54..ADVEN202008-202210

BLACK,TRIM1#,2#,4#

58871CUSHION, CONSOLE BOX

main90541-03078×4iAXAH5#,MXAA5#201904-202007

58871ACUSHION, CONSOLE BOX, NO.2

main58871-42040iAXAH5#,MXAA5#201904-202007

58875SPACER, CONSOLE BOX

main58875-42010iAXAH52,MXAA52202310-202410

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42060-C0supersedes 58903-42050-C0iMXAA54..ADVEN201904-202007

58911BPANEL, BOX, NO.1

main58911-42080-C0iAXAH54,MXAA54..ADVEN202008-202210

BLACK,TRIM1#,2#,4#

58912DPANEL, BOX, NO.2

main58912-42070-C0iAXAH54,MXAA54..ADVEN202008-202210

BLACK,TRIM1#,2#,4#

58913APANEL, BOX, NO.3

main58913-42030supersedes 58913-42010iAXAH5#,MXAA5#202008-202112

main58913-42050iAXAH54,MXAA54202310

main58913-42040iAXAH54,MXAA54..ADVEN,G,HBDG202008-202112

58920AARMREST ASSY, REAR CONSOLE

main58920-42010-C0iAXAH52,MXAA52202310-202410

BLACK,TRIM2#

main58920-42020-C1iAXAH54,MXAA54..ADVEN202210-202310

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-42040iAXAH5#,MXAA5#..HBDX,X202008-202210

main58949-42050iAXAH54,MXAA54..ADVEN,G202310

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-42020iAXAH52,MXAA52202310-202410

58985RETAINER, CONSOLE BOX

main58985-42080iAXAH5#,MXAA5#201904-202007

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42080iAXAH5#,MXAA5#201904-202007

main58996-42081iAXAH5#,MXAA5#202208-202210

8121

8202

8615

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

9167380616

main91673-80616

9616000600

main96160-00600

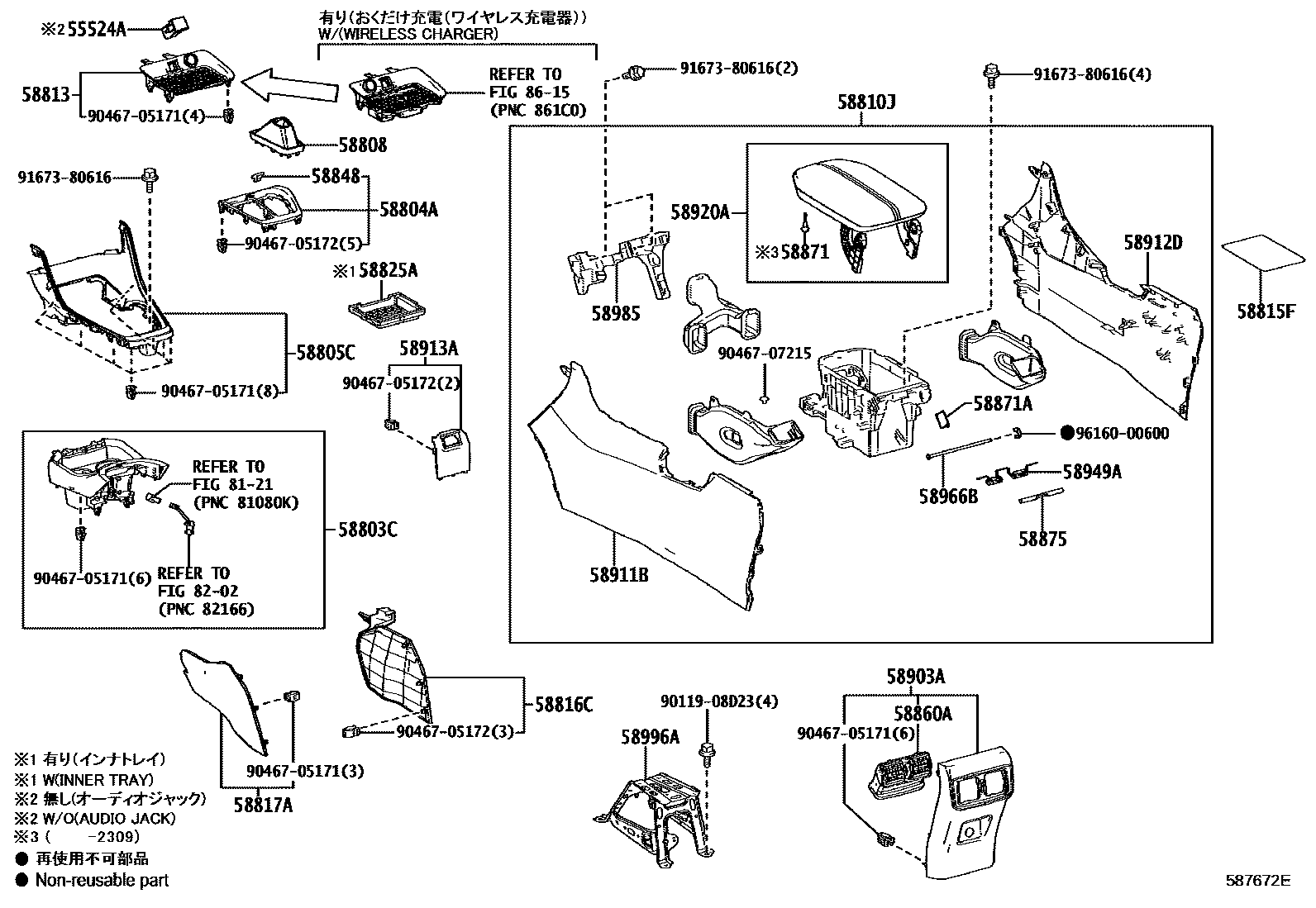

34 parts on this diagram · 1 diagram in section
