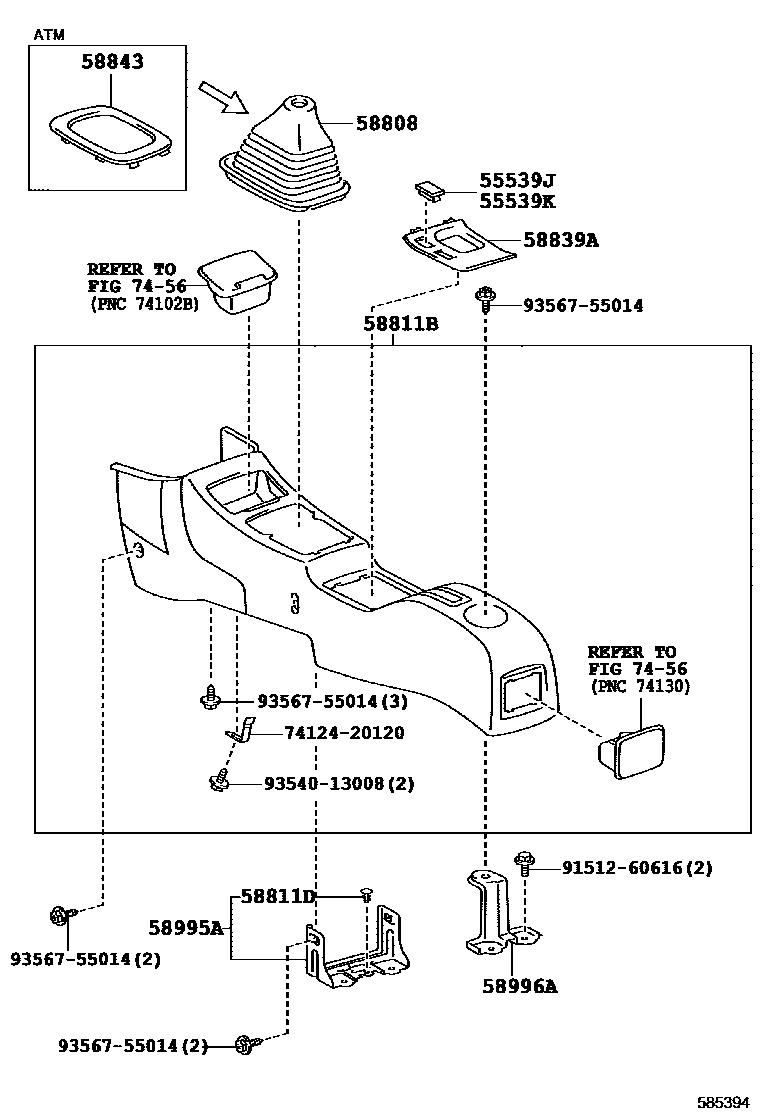

Toyota RAV4 — CONSOLE BOX & BRACKET

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-B1iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main55539-20020-P0iSXA10,15..STD,X199710-199808

SHADOW GRAY,TRIM10,11

55539KCOVER, SPARE SWITCH HOLE

main55539-20020-B1iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main55539-20020-P0iSXA10..X199808-200005

SHADOW GRAY,TRIM1#,10,11

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12112-C0iSXA1#..MTM199404-199709

BLACK,TRIM1#

58811BBOX, CONSOLE

main58801-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main58801-42010-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,19

58811DCLIP(FOR CONSOLE BOX)

main90467-10130iSXA1#..MTM199404

58839ACOVER, CONSOLE BOX HOLE

main58839-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main58839-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

58843BEZEL, SHIFTING HOLE

main58843-12080-B0iSXA10..ATM..G;SXA11..ATM..WIB199808-200005

SHADOW GRAY,TRIM10,11,12

main58843-12080-B1iSXA1#..ATM199404-199709

BLUISH GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iSXA1#..MTM199404

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42010iSXA1#199404

7456

7412420120SPRING, FRONT ASH RECEPTACLE RETAINER, RH

main74124-20120

9151260616

main91512-60616

9354013008

main93540-13008

9356755014

main93567-55014

14 parts on this diagram · 1 diagram in section
