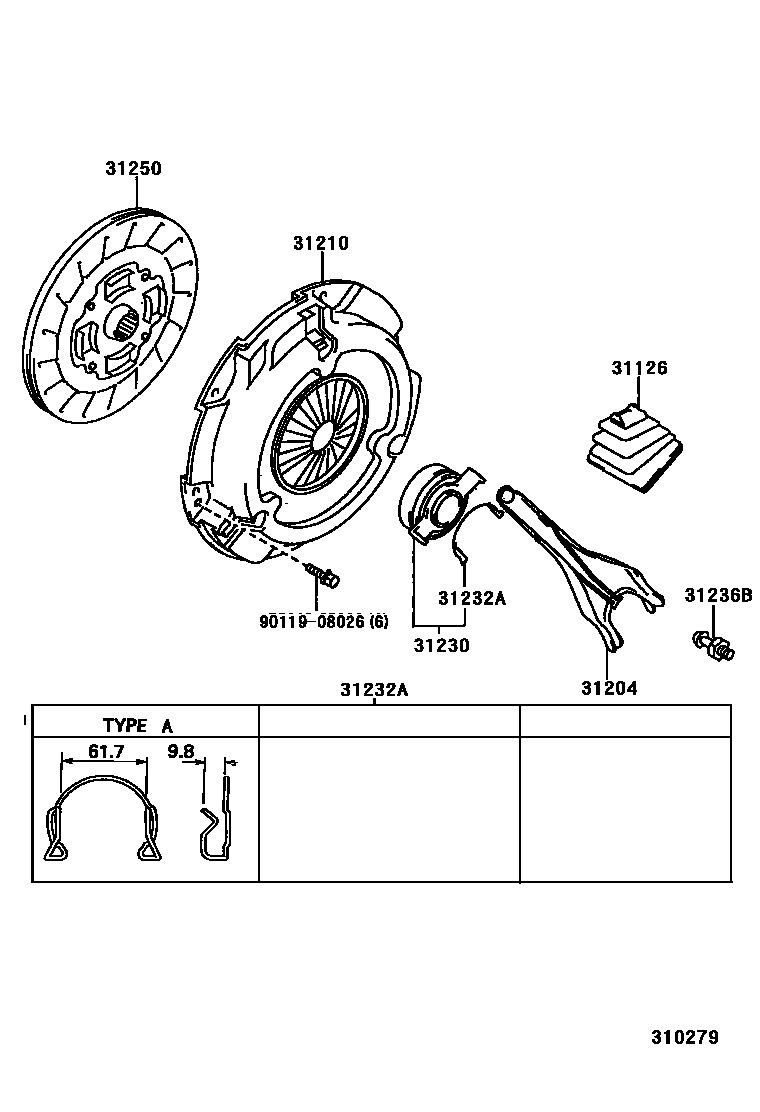

Toyota RAV4 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iSXA1#..MTM199404

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSXA1#..MTM199404

31210COVER ASSY, CLUTCH

main31210-20331iSXA1#..MTM199404

sub31210-20332

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iSXA1#..MTM199404

31232ACLIP, RELEASE BEARING HUB

main31232-20020iSXA1#..MTM199404

31236BSUPPORT, RELEASE FORK

main31236-20060iSXA1#..MTM199404

31250DISC ASSY, CLUTCH

main31250-20141iSXA1#..MTM199404-200005

sub31250-20142

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
