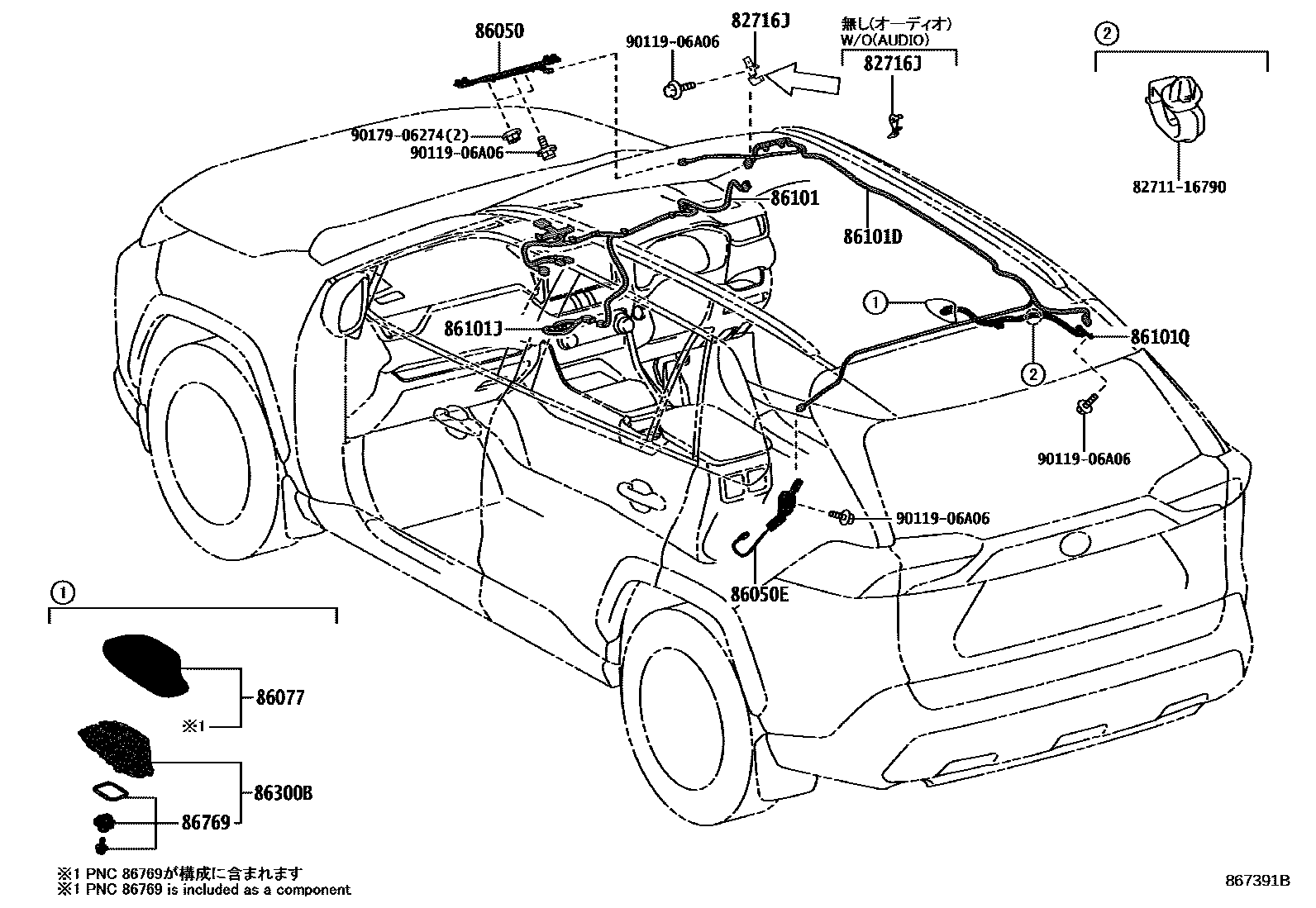

Toyota RAV4 — ANTENNA
82716JBRACKET, WIRING HARNESS CLAMP
86050ANTENNA ASSY, TELEVISION
86050EANTENNA ASSY, TELEVISION
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX ,2TU
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2VV ,2ZF
RED MC.,3T3
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
ATTITUDE BLACK MC.,218
RED MC.,3T3
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86300BANTENNA ASSY, AMPLIFIER, NO.1
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906A06
main90119-06A06
9017906274
main90179-06274
13 parts on this diagram · 1 diagram in section
ANTENNA for Toyota RAV4
This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota RAV4. Key components include: BRACKET, WIRING HARNESS CLAMP, ANTENNA ASSY, TELEVISION, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA.
