Toyota RAV4 — ANTENNA

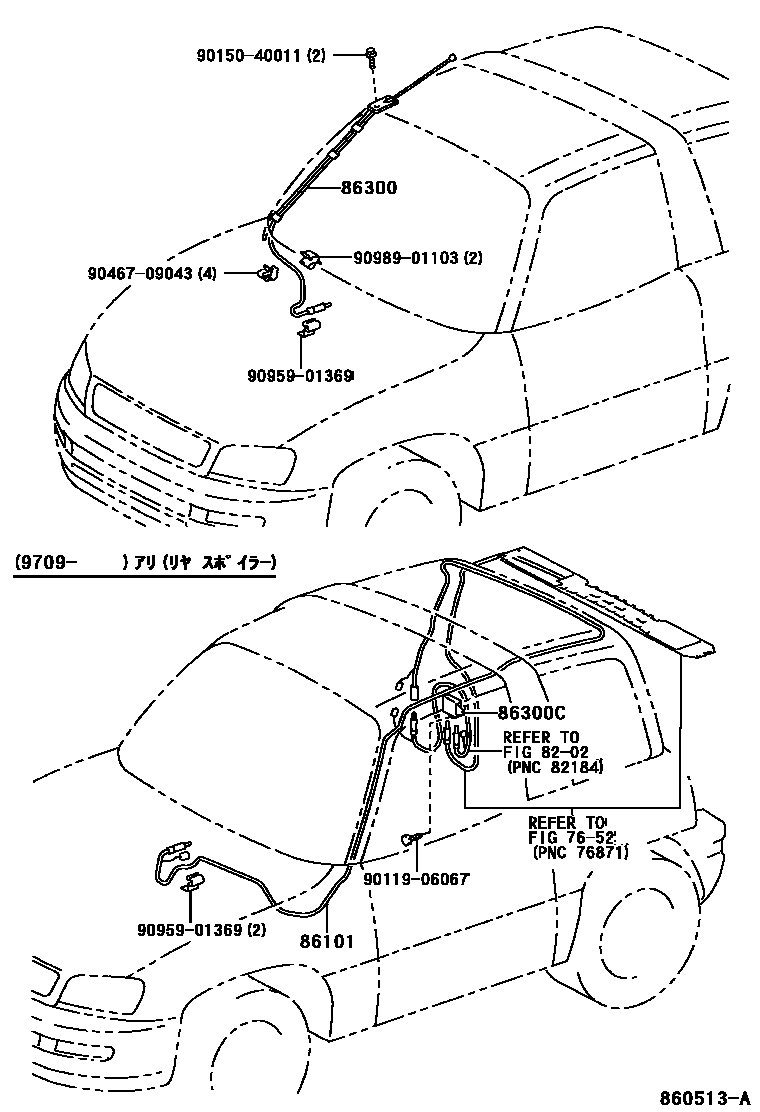

Parts diagram

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8202WIRING & CLAMP

→ Go to FIG 82-02

86101CORD SUB-ASSY, ANTENNA

main86101-42020i199709-200005

main86101-42030i199709-200005

86300ANTENNA ASSY, W/HOLDER

main86300-42010i199404-199612

main86300-42030i199504-199612

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-42050i199709-200005

9011906067

main90119-06067

9015040011

main90150-40011

9046709043

main90467-09043

9095901369

main90959-01369

9098901103

main90989-01103

10 parts on this diagram · 1 diagram in section

ANTENNA for Toyota RAV4

This section contains 10 genuine Toyota parts for the ANTENNA system of the Toyota RAV4. Key components include: SPOILER & SIDE MUDGUARD, WIRING & CLAMP, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2.
