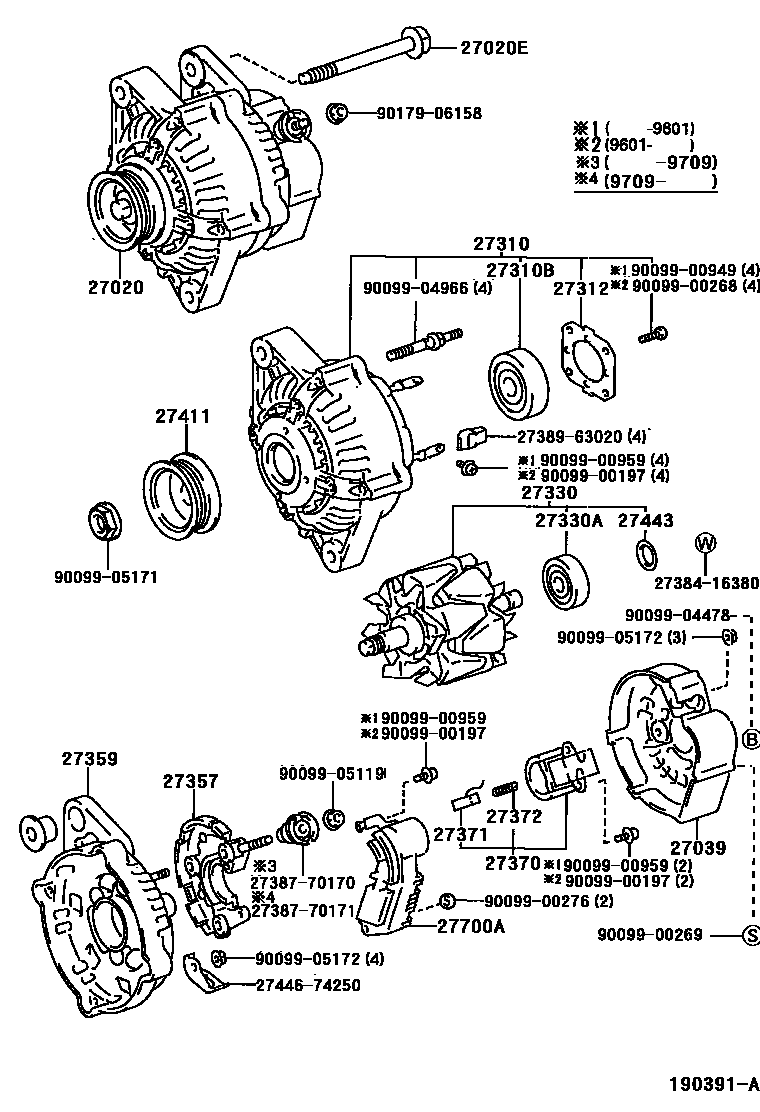

Toyota RAV4 — ALTERNATOR
27020ALTERNATOR ASSY
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2738416380WASHER
main27384-16380
2738770170INSULATOR, TERMINAL
main27387-70170
2738770171INSULATOR, TERMINAL
main27387-70171
2738963020INSULATOR, TERMINAL
main27389-63020
2744674250CLIP, ALTERNATOR CORD
main27446-74250
9009900197
main90099-00197
9009900268
main90099-00268
9009900269
main90099-00269
9009900276
main90099-00276
9009900949
main90099-00949
9009900959
main90099-00959
9009904478
main90099-04478
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
9331914025
main93319-14025
34 parts on this diagram · 4 diagrams in section
ALTERNATOR for Toyota RAV4
This section contains 47 genuine Toyota parts for the ALTERNATOR system of the Toyota RAV4. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR.
