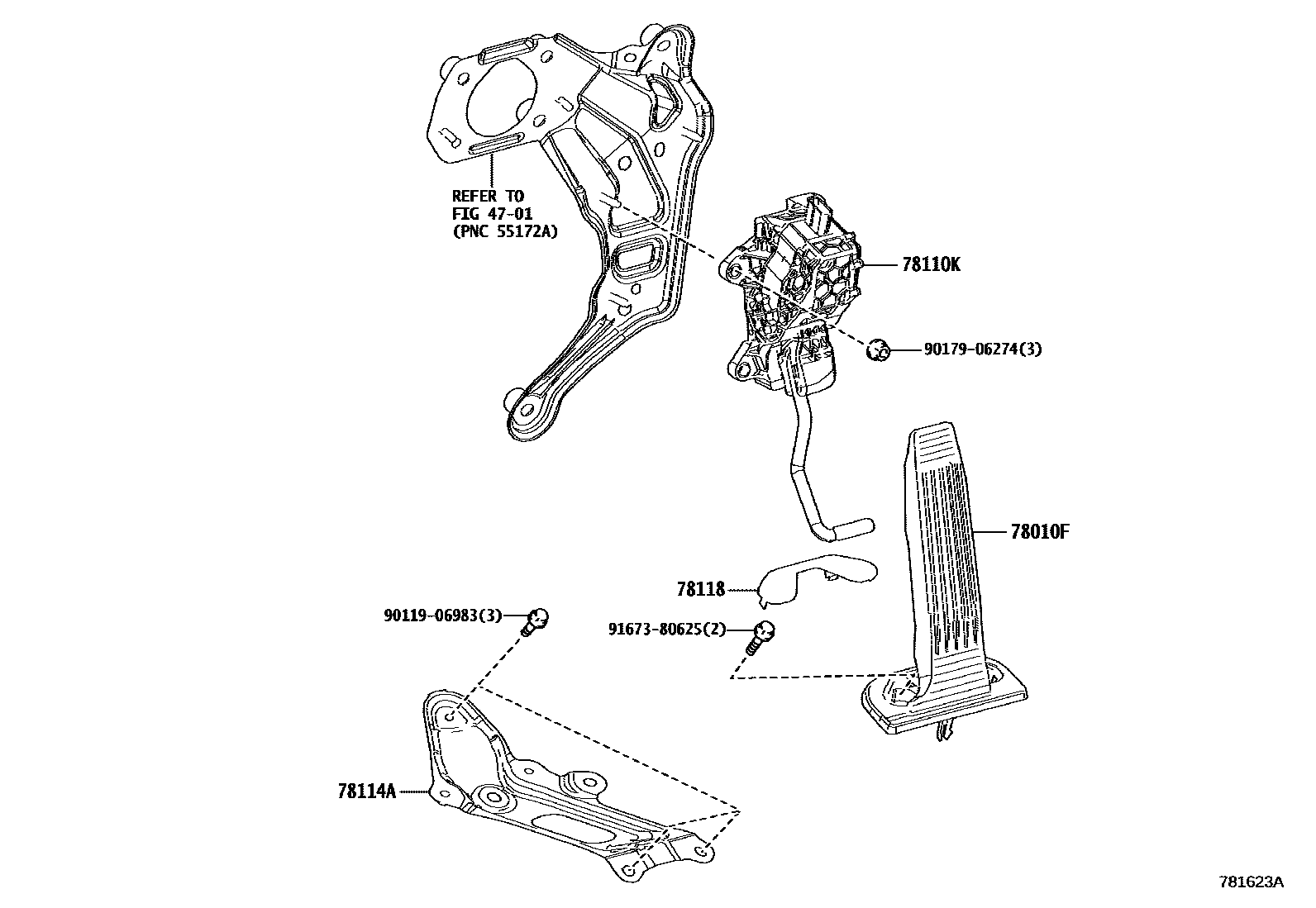

Toyota RAV4 — ACCELERATOR LINK

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iAXAH5#,MXAA5#201904-202007

main78101-33061iAXAH5#,MXAA5#202112-202210

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-42060iAXAH5#,MXAA5#201904-202007

main78110-42061iAXAH5#,MXAA5#202011-202210

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-42030iAXAH5#,MXAA5#201904-202007

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXAH5#,MXAA5#201904-202007

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section
