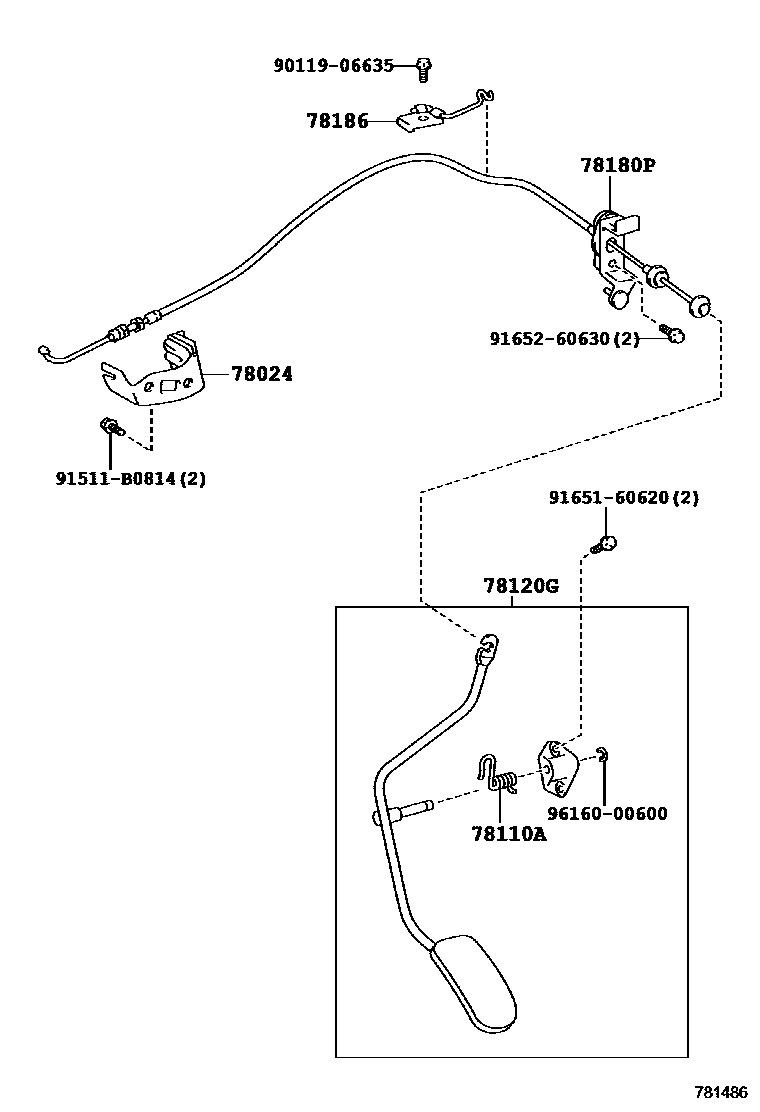

Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20140iSXA1#..STD199404-199709

main78024-44020iSXA1#..SOT,STD,X199709

main78024-88460iSXA10,11..G199608-199808

main78024-88561iSXA10,11..G199808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26075iSXA1#..MTM199404

main90959-03049iSXA1#..ATM199404

78120GROD ASSY, ACCELERATOR PEDAL

main78120-42010iSXA1#..MTM199404

main78120-42040iSXA1#..ATM199404

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-42010iSXA1#..STD199404-199709

main78180-42040iSXA10,11..G199608-199808

main78180-42050iSXA1#..SOT,STD,X199709

main78180-42080iSXA10,11..G199808

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-42010iSXA1#199404-199608

main78186-42020iSXA1#199608

9011906635

main90119-06635

91511B0814

main91511-B0814

9165160620

main91651-60620

9165260630

main91652-60630

9616000600

main96160-00600

10 parts on this diagram · 3 diagrams in section
