Toyota RAV4 — WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-42D20i200511-200604

main82111-42D21i200604-200808

main82111-42D22i200808-200812

main82111-42D30i200511-200604

WITHOUT(VSC)

main82111-42D31i200604-200612

WITHOUT(VSC)

main82111-42D32i200612-200808

WITHOUT(VSC)

main82111-42D33i200808-200812

WITHOUT(VSC)

main82111-42D40i200511-200604

main82111-42D41i200604-200808

main82111-42D42i200808-200812

main82111-42E20i200511-200604

main82111-42E21i200604-200808

main82111-42E30i200511-200604

main82111-42E31i200604-200808

main82111-42E50i200511-200604

main82111-42E51i200604-200812

main82111-42E70i200708-200808

main82111-42F00i200808-200912

TAIWAN SPEC

main82111-42F00i200808-200912

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42F00i200808-200912

SAUDI ARABIA SPEC

main82111-42F00i200812-201212

VSC-WITHOUT

main82111-42F10i200808-200912

VSC-WITH

main82111-42F10i200808-200912

VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

main82111-42F10i200808-200912

TAIWAN SPEC&VSC-WITH

main82111-42F10i200808-200912

TAIWAN SPEC&VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

main82111-42F10i200808-200912

SAUDI ARABIA SPEC&VSC-WITH

main82111-42F10i200812-201212

main82111-42F20i200812-201008

VSC-WITHOUT

main82111-42F30i200812-201008

main82111-42F40i200812-201008

COLD AREA SPEC

main82111-42F50i200812-201212

VSC-WITHOUT

main82111-42F60i200812-201002

main82111-42F70i200812-201002

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main82111-42F80i200812-201212

COLD AREA SPEC

main82111-42F80i200812-201002

COLD AREA SPEC&TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main82111-42F90i200808-200912

main82111-42F91i200912-201212

main82111-42F91i201112-201212

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&OUTSIDE REAR VIEW MIRROR-*RCM & COLORED & TURNSIGNAL

main82111-42G00i200812-201212

VSC-WITHOUT

main82111-42G10i200812-201212

main82111-42G20i200812-201002

VSC-WITHOUT

main82111-42G30i200812-201002

main82111-42G40i200812-201212

VSC-WITHOUT

main82111-42G50i200812-201212

main82111-42G80i200808-200912

main82111-42G81i200912-201206

sub82111-42G82

main82111-42G82i201207-201212

main82111-42G90i200808-200912

VSC-WITH

main82111-42G91i200912-201212

VSC-WITH

main82111-42J00i200808-201212

main82111-42J40i200808-200912

main82111-42J41i200912-201104

main82111-42J42i201104-201112

main82111-42J43i201112-201212

main82111-42J50i200808-200912

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42J50i200905-200912

BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & TRACKING&BLOCKING SYSTEM)

main82111-42J51i200912-201008

BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & TRACKING&BLOCKING SYSTEM)

main82111-42J51i200912-201104

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42J52i201104-201112

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42J53i201112-201212

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42J90i200906-201212

main82111-42K10i200903-201002

COLD AREA SPEC

main82111-42K20i200912-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS&VSC-WITHOUT

main82111-42K20i200912-201212

TAIWAN SPEC

main82111-42K20i200912-201212

SAUDI ARABIA SPEC

main82111-42K20i201108-201212

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&OUTSIDE REAR VIEW MIRROR-*RCM & COLORED & HEATER & TURN SIGNAL

main82111-42K20i201104-201108

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&SIDE TURN SIGNAL LAMP-WITHOUT

main82111-42K20i200912-201104

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main82111-42K30i200912-201212

VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

main82111-42K30i200912-201212

TAIWAN SPEC&VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

main82111-42K30i200912-201212

SAUDI ARABIA SPEC&VSC-WITH

main82111-42K30i200912-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main82111-42K30i200912-201212

VSC-WITH

main82111-42K30i200912-201212

TAIWAN SPEC&VSC-WITH

main82111-42K70i201002-201212

VSC-WITHOUT

main82111-42K80i201002-201212

main82111-42K90i201002-201212

COLD AREA SPEC

main82111-42L00i201002-201212

VSC-WITHOUT

main82111-42L10i201002-201212

main82111-42L20i201002-201212

main82111-42L40i201002-201212

COLD AREA SPEC

main82111-42L50i201002-201212

COLD AREA SPEC

main82111-42L60i201002-201212

VSC-WITHOUT

main82111-42L70i201002-201212

main82111-42L80i201002-201212

VSC-WITHOUT

main82111-42L90i201002-201212

main82111-42M00i200912-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS&VSC-WITHOUT

main82111-42M10i200912-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main82111-42M30i201007-201009

SPECIAL EDITION

main82111-42M40i201007-201009

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&SPECIAL EDITION

main82111-42M50i201011-201103

SPECIAL EDITION

main82111-42M60i201011-201103

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&SPECIAL EDITION

main82111-42Q50i201107-201109

SPECIAL EDITION

main82111-42Q60i201112-201212

OUTSIDE REAR VIEW MIRROR-*RCM & COLORED & TURN SIGNAL

main82111-4A330i200511-200604

WITHOUT(VSC)

main82111-4A330i200511-200604

SAUDI ARABIA SPEC

main82111-4A331i200604-200808

SAUDI ARABIA SPEC

main82111-4A331i200604-200808

WITHOUT(VSC)

main82111-4A332i200808-200812

WITHOUT(VSC)

main82111-4A332i200808-200812

SAUDI ARABIA SPEC

main82111-4A340i200511-200604

SAUDI ARABIA SPEC&WITH(VSC)

main82111-4A340i200511-200604

WITH(VSC)

main82111-4A341i200604-200808

SAUDI ARABIA SPEC&WITH(VSC)

main82111-4A341i200604-200808

WITH(VSC)

main82111-4A342i200808-200812

SAUDI ARABIA SPEC&WITH(VSC)

main82111-4A342i200808-200812

WITH(VSC)

main82111-4A350i200511-200604

WITHOUT(VSC)

main82111-4A351i200604-200612

WITHOUT(VSC)

main82111-4A352i200612-200808

WITHOUT(VSC)

main82111-4A353i200808-200812

WITHOUT(VSC)

main82111-4A360i200511-200604

main82111-4A361i200604-200808

main82111-4A362i200808-200812

main82111-4A370i200511-200604

235/55R18H ALMINUM 7.5J

main82111-4A371i200604-200808

235/55R18H ALMINUM 7.5J

main82111-4A372i200808-200812

235/55R18H ALMINUM 7.5J

main82111-4A380i200511-200604

COLD AREA SPEC&235/55R18H ALMINUM 7.5J

main82111-4A380i200511-200604

COLD AREA SPEC

main82111-4A381i200604-200808

COLD AREA SPEC&235/55R18H ALMINUM 7.5J

main82111-4A381i200604-200808

COLD AREA SPEC

main82111-4A382i200808-200812

COLD AREA SPEC

main82111-4A382i200808-200812

COLD AREA SPEC&235/55R18H ALMINUM 7.5J

main82115-42020i200511-200604

WITHOUT(VSC)

main82115-42021i200604-200808

WITHOUT(VSC)

main82115-42022i200808-200812

WITHOUT(VSC)

82671BLOCK, JUNCTION

main82671-30360i200511-201212

82671JBLOCK, JUNCTION, NO.2

main82671-30370i200511-201212

82824CONNECTOR, WIRING HARNESS

main82824-47210i200511-201212

82824GCONNECTOR, WIRING HARNESS

main82824-30220i200808-201212

82824JCONNECTOR, WIRING HARNESS

main82824-12430i200812-201212

82824KCONNECTOR, WIRING HARNESS

main82824-50340i200910-201212

8401

9011906915

main90119-06915

9017906274

main90179-06274

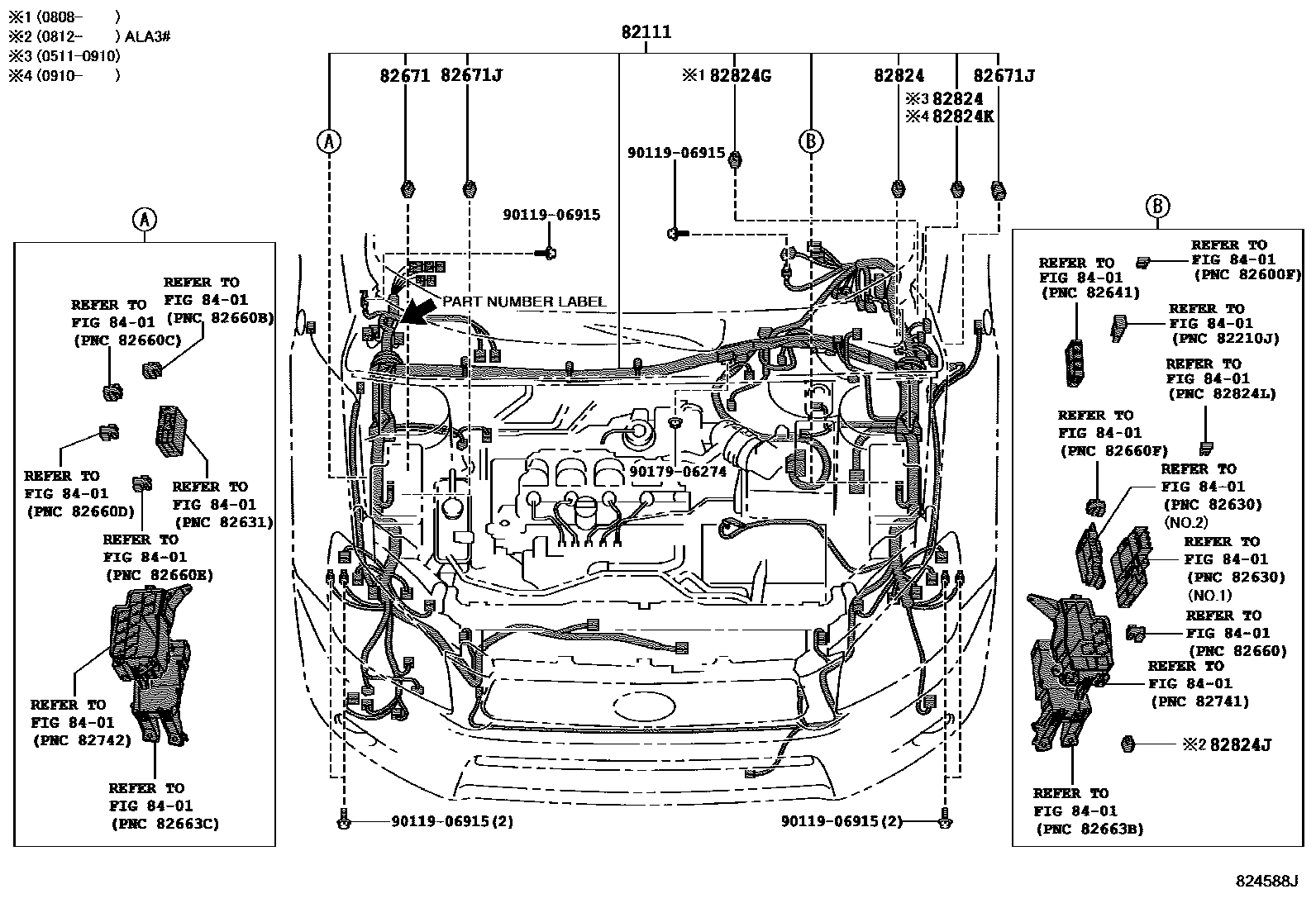

10 parts on this diagram · 23 diagrams in section
