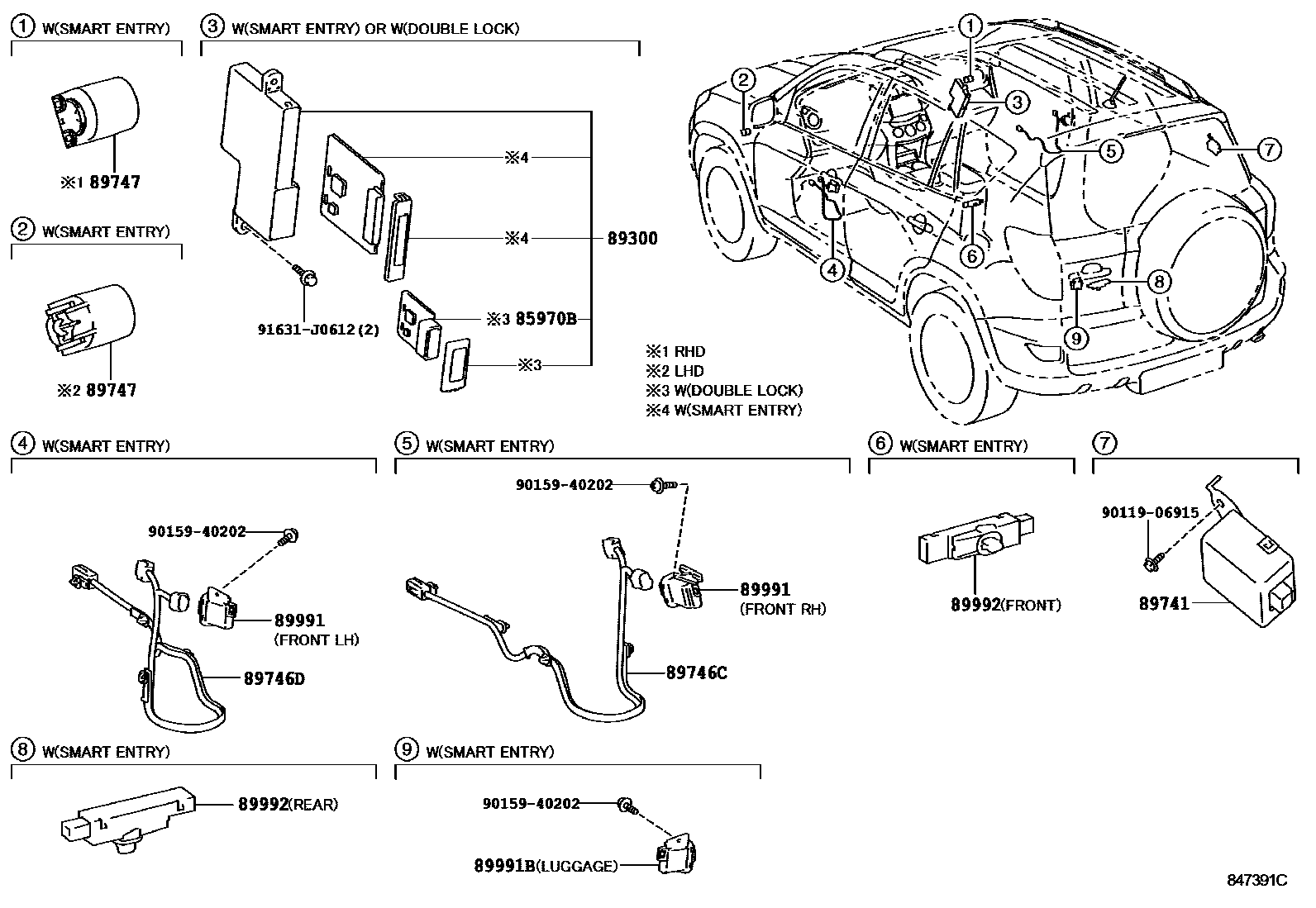

Toyota RAV4 — WIRELESS DOOR LOCK

85970BRELAY ASSY, DOUBLE LOCK DOOR CONTROL

main85970-52010iACA30,ALA30..RHD200511-201212

89300BOX ASSY, ECU AGGREGATION

main89300-52030iACA30,ALA30..RHD200511-201212

89741RECEIVER, DOOR CONTROL

main89741-42220iACA33..ARL200511-200701

sub89741-42221

main89741-42220iACA3#,ALA30..EUR,GCC,GEN200511-200805

HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY

sub89741-42221

main89741-42220iACA3#,ALA30..EUR,GCC,GEN200511-200805

WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY

sub89741-42221

main89741-42221iACA30,33,38,ALA3#,ZSA3#..EUR,GCC,GEN200806-201004

SINGAPORE SPEC

sub89741-42222

main89741-42221iACA33..G..GCC;ACA30,31,ALA30200806-200812

HONG KONG SPEC&WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY

sub89741-42222

main89741-42221iACA33..G..GCC;ACA30,31,ALA30200806-200812

WITH(SMART KEY & CRUISE CONTROL)&WIRELESS DOOR LOCK-SMART ENTRY

sub89741-42222

main89741-42222iACA33..4FC..ARL201005-201212

SINGAPORE SPEC

main89741-42222iACA3#,ALA3#,ZSA3#..EUR,GCC,GEN201005-201212

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

main89741-42222iACA3#,ALA3#,ZSA3#..EUR,GCC,GEN201005-201212

HONG KONG SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

main89741-42222iACA3#,ALA3#,ZSA3#..EUR,GCC,GEN201005-201212

NEW ZEALAND SPEC&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

main89741-42230iACA33,GSA33..ARL200701-200807

sub89741-42231

main89741-42231iACA33,38..G..GEN200808-201011

TAIWAN SPEC

sub89741-42232

main89741-42231iACA33,38..G..GEN200808-201011

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

sub89741-42232

main89741-42232iALA30..RHD..6F..G..(DCR,DCRL)..BTYPE201012-201212

NEW ZEALAND SPEC

main89741-42232iACA33,38,GSA33..ARL201012-201212

TAIWAN SPEC

main89741-42232iACA33,38,GSA33..ARL201012-201212

TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010

main89747-48020

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040

main89991-30050

89991BOSCILLATOR, DOOR ELECTRICAL KEY(FOR LUGGAGE)

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-42010

main89992-42020

main89992-52020

9011906915

main90119-06915

9015940202

main90159-40202

91631J0612

main91631-J0612

12 parts on this diagram · 1 diagram in section
