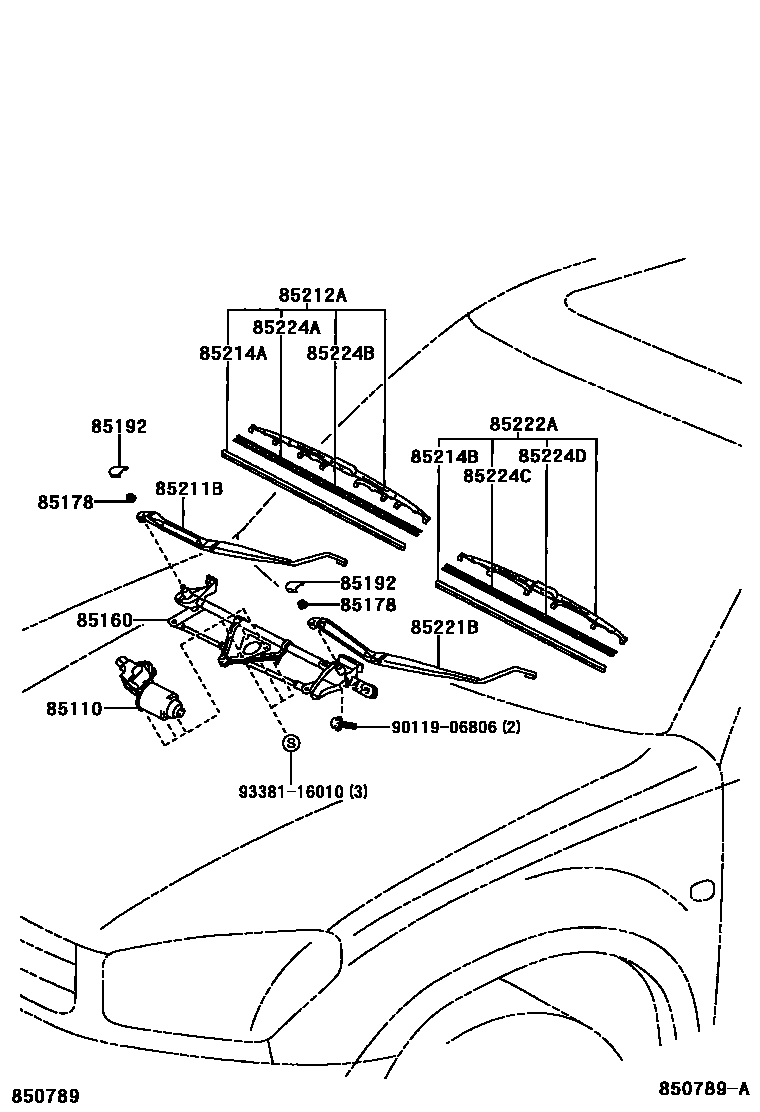

Toyota RAV4 — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42100iACA21,22,23..RHD..(ARL,GEN)200307

main85110-42110iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main85110-42120iACA20,21..LHD..(GCC,GEN)200307

main85110-42130iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

85160LINK ASSY, WINDSHIELD WIPER

main85150-42070iACA21,22,23..RHD..(ARL,GEN)200307

main85150-42080iACA20,21..LHD..(GCC,GEN)200307

main85150-42100iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main85150-42110iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iACA2#,CLA2#,ZCA2#200005-200307

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iACA2#,CLA2#,ZCA2#200307

85211BARM, FRONT WIPER, RH

main85211-42070iACA2#..RHD..(ARL,GEN)200005-200307

main85211-42080iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main85211-42090iACA2#,CLA2#,ZCA2#..LHD200005-200307

85212ABLADE, FR WIPER, RH

main85212-24100iACA21,22,23..RHD..(ARL,GEN)200307

sub85212-30370

main85212-33180iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

sub85212-12390

main85212-33190iACA2#..RHD..(ARL,GEN)200207-200307

main85212-42070iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main85212-42090iACA2#..RHD..(ARL,GEN)200005-200207

main85212-53030iACA2#,CLA2#,ZCA2#..LHD200005-200207

main85212-53050iACA20,21,CLA2#,ZCA2#..LHD200307

sub85212-53051

85214ARUBBER, WIPER, RH

main85214-30290iACA2#..RHD..(ARL,GEN)200005-200307

sub85214-50120

main85214-30330iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main85214-33080iACA2#,CLA2#,ZCA2#..LHD200005-200307

main85214-50100iACA2#,CLA2#,ZCA2#..RHD200307

main85214-53040iACA20,21,CLA2#,ZCA2#..LHD200307

sub85214-53041

85214BRUBBER, WIPER, LH

main85214-17050iACA2#,CLA2#,ZCA2#..RHD200005-200307

sub85214-48020

main85214-30320iACA2#,CLA2#,ZCA2#..LHD200005-200307

main85214-50100iACA20,21,CLA2#,ZCA2#..LHD200307

main85214-53040iACA2#,CLA2#,ZCA2#..RHD200307

sub85214-53041

85221BARM, FRONT WIPER, LH

main85221-42070iACA2#,CLA2#,ZCA2#..RHD200307

main85221-42080iACA2#..LHD..(GCC,GEN)200008-200307

main85221-42090iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

85222ABLADE, FR WIPER, LH

main85222-17050iACA2#,CLA2#,ZCA2#..RHD200005-200207

main85222-24080iACA2#..LHD..(GCC,GEN)200207-200307

main85222-33200iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

main85222-42070iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200207

main85222-42080iACA2#..LHD..(GCC,GEN)200008-200207

main85222-48030iACA2#,CLA2#,ZCA2#..RHD200207-200307

sub85222-48111

main85222-53010iACA2#,CLA2#,ZCA2#..RHD200307

sub85222-53011

main85222-60211iACA20,21..LHD..(GCC,GEN)200307

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35040iACA2#,CLA2#,ZCA2#..LHD200005-200307

main85224-44010iACA2#,CLA2#,ZCA2#..RHD200005-200307

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35040iACA2#,CLA2#,ZCA2#..LHD200005-200307

main85224-44010iACA2#,CLA2#,ZCA2#..RHD200005-200307

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040iACA2#,CLA2#,ZCA2#..RHD200005-200307

main85224-44040iACA2#,CLA2#,ZCA2#..LHD200005-200307

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040iACA2#,CLA2#,ZCA2#..RHD200005-200307

main85224-44040iACA2#,CLA2#,ZCA2#..LHD200005-200307

9011906806

main90119-06806

9338116010

main93381-16010

16 parts on this diagram · 2 diagrams in section
