Toyota RAV4 — WINDSHIELD WASHER

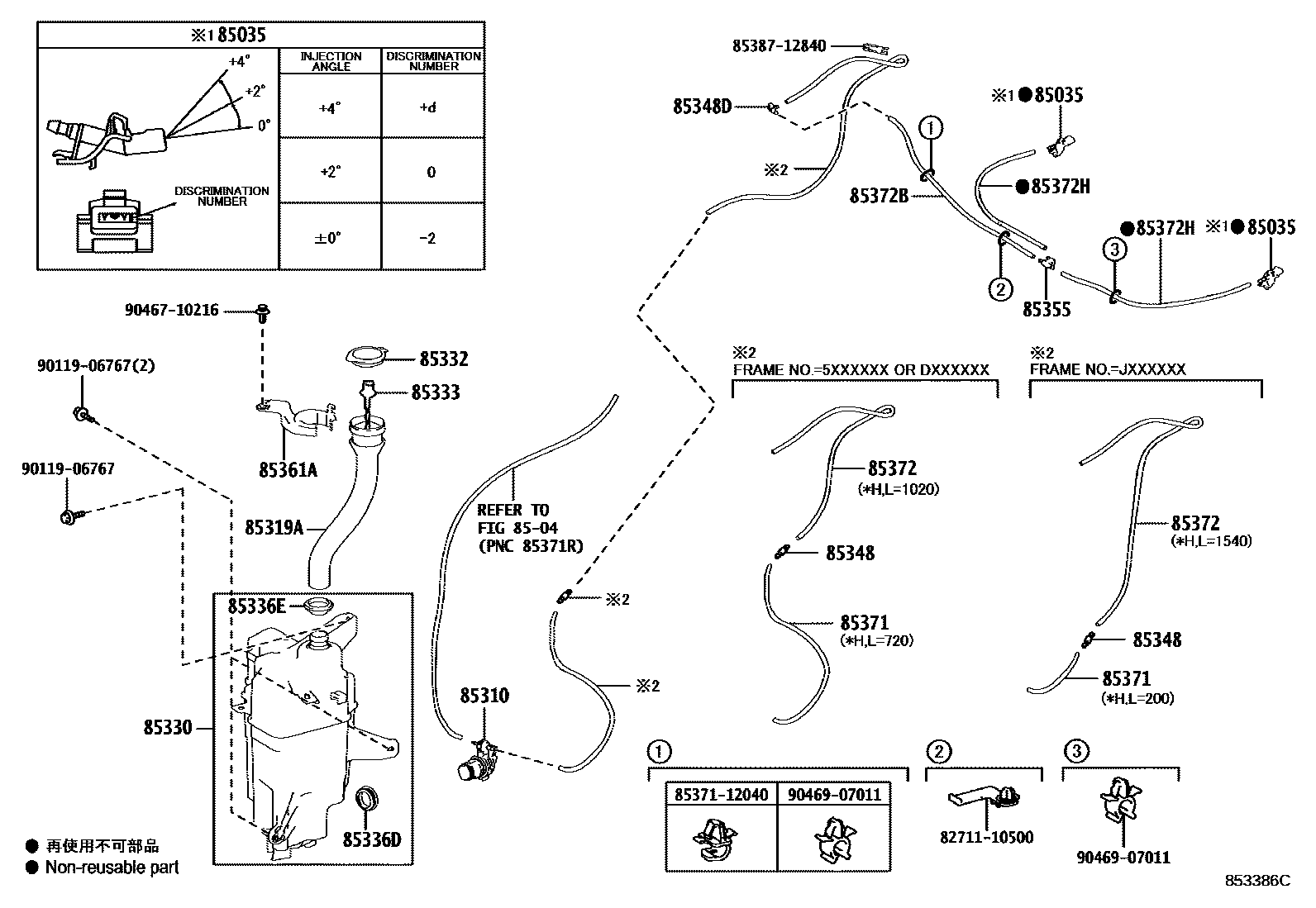

0001 1 0002 1W(HEADLAMP CLEANER) 0005 1W(LEVEL SENSOR & HEADLAMP CLE

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iASA4#,ZSA4#201212-201510

ANGLE 0

main85381-12420×2iASA4#,ZSA4#201212-201510

ANGLE +2

sub85381-0K060

main85381-12430×2iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

ANGLE +4

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-42010iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

85319AHOSE, INLET

main85319-42230iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85330JAR ASSY, WINDSHIELD WASHER

main85315-42350iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

main85355-42100iZSA4#..GEN;ASA44..G..GEN201212-201410

UKURAINE SPEC&HEADLAMP-DISCHARGE,*562

main85355-42120iASA4#..LHD..G..GEN201708-201812

HEAD LAMP CLEANER-WITH

main85355-42130iZSA4#..GEN;ASA44..G..GEN201410-201510

UKURAINE SPEC&HEADLAMP-DISCHARGE

main85355-42170iASA44..(G,M)..GCC201708-201812

HEAD LAMP CLEANER-WITH

85332CAP, WINDSHIELD WASHER JAR

main85316-42360iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85333FILTER, WINDSHIELD WASHER JAR

main85312-47020iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-60290iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42350iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

L=1450(*H,L=720),*561,*562

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

L=1450(*H,L=1020),*562

main90099-33803iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

L=1540,*561

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iASA4#,ZSA4#201212-201312

L=1450(*H,L=680)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080×2iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

L=1450(*H,L=440)

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8538712840CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840

9011906767

main90119-06767

9046710216

main90467-10216

9046907011

main90469-07011

23 parts on this diagram · 3 diagrams in section
