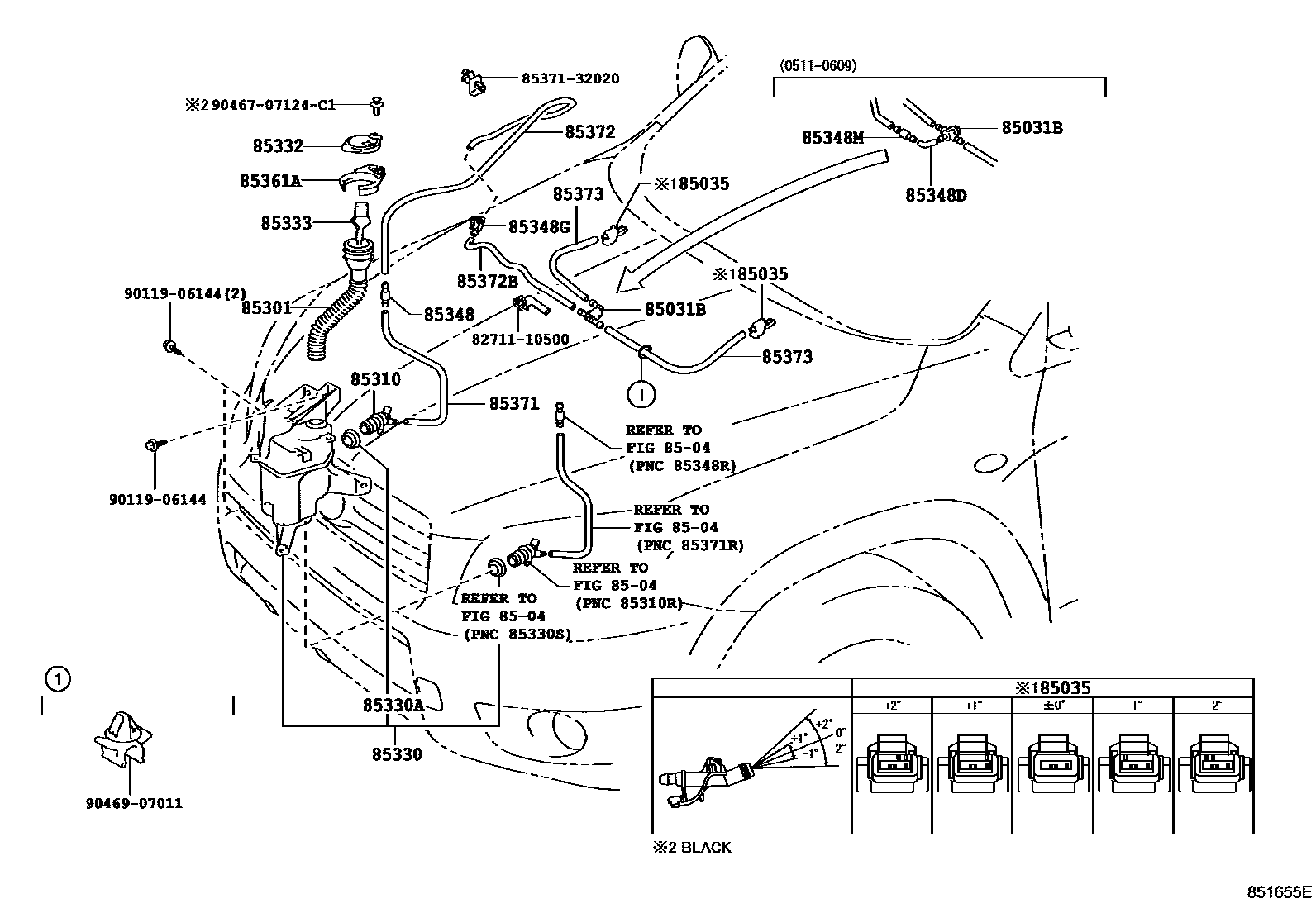

Toyota RAV4 — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +1
ANGLE -1
ANGLE +2
ANGLE -2
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
BEIJING SPEC
CHINA SPEC
COLD AREA SPEC&HEADLAMP CLEANER-WITH
85330JAR ASSY, WINDSHIELD WASHER
COLD AREA SPEC,4.8L
4.8L
2.5L
4.8L
COLD AREA SPEC&HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
COLD AREA SPEC&HEADLAMP CLEANER-WITH
COLD AREA SPEC
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=740),COLD AREA SPEC
L=1450(*H,L=740),COLD AREA SPEC&HEADLAMP CLEANER-WITH
L=1450(*H,L=690)
L=1450(*H,L=710)
L=1450(*H,L=710),CHINA SPEC
L=1450(*H,L=710),BEIJING SPEC
L=1450(*H,L=710),COLD AREA SPEC
L=1450(*H,L=710),COLD AREA SPEC&HEADLAMP CLEANER-WITH
L=1450(*H,L=710),HEADLAMP CLEANER-WITH
L=1450(*H,L=740)
L=1450(*H,L=720)
L=1450(*H,L=740),CHINA SPEC
L=1450(*H,L=740),BEIJING SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=810)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=710)
L=1450(*H,L=730)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=500)
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-32020
9011906144
main90119-06144
9046707124C1
main90467-07124C1
9046907011
main90469-07011
23 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota RAV4
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4. Key components include: SWITCH & RELAY & COMPUTER, VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER.
