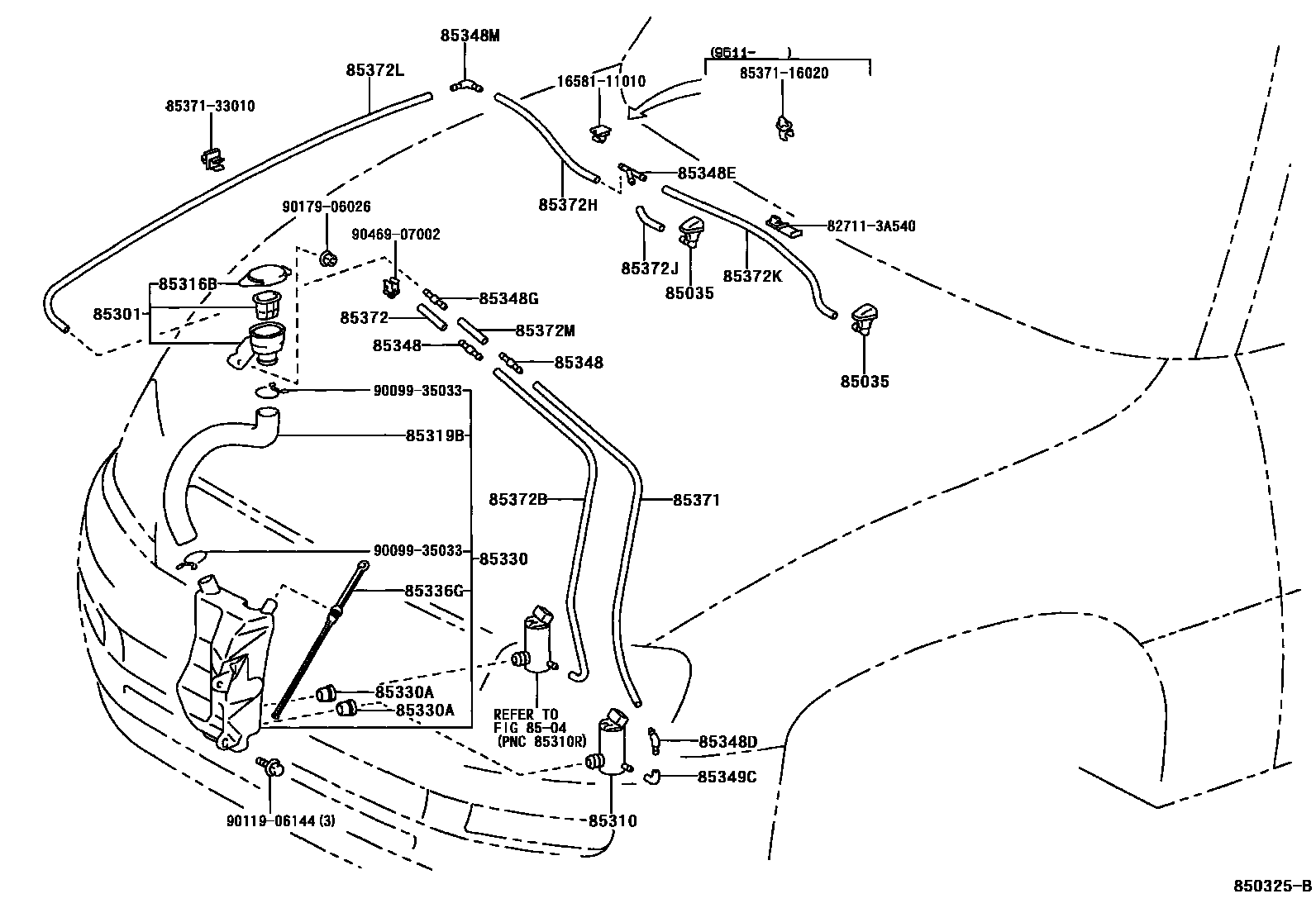

Toyota RAV4 — WINDSHIELD WASHER

0001 1W/0(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iSXA1#199404

8504

85301INLET SUB-ASSY, WASHER

main85301-42010iSXA1#199404-199608

main85301-42011iSXA1#199608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iSXA1#199404-199608

main85330-10280iSXA11;SXA10..EUR..HT;SXA10..ARL,GCC,GEN199608

main85330-33020iSXA10..EUR..CVT199712

85316BCAP, WASHER, INLET

main85316-26030iSXA1#199404-199608

main85316-42011iSXA1#199608

85319BHOSE, WINDOW WASHER

main85139-42010iSXA10..LHD..EUR199404-199709

SWEDEN OR FINLAND OR ICELAND SPEC

main85319-42010iSXA1#199404

85330JAR ASSY, WINDSHIELD WASHER

main85315-42010iSXA10199404-199412

main85315-42011iSXA1#..HT199412

main85315-42020iSXA10..LHD..EUR199404-199412

COLD AREA SPEC (EUROPE)

main85315-42021iSXA1#..LHD..EUR..HT199412

COLD AREA SPEC (EUROPE)

main85315-42070iSXA10..CVT199712

main85355-42010iSXA10..LHD..EUR199405-199412

SWEDEN,FINLAND,ICELAND SPEC

main85355-42011iSXA1#..LHD..EUR199412-199608

SWEDEN,FINLAND,NORWAY,ICELAND SPEC

main85355-42012iSXA1#..LHD..EUR199608-199709

SWEDEN,FINLAND,NORWAY,ICELAND SPEC

main85355-42013iSXA1#..LHD..EUR..HT199709

SWEDEN,FINLAND,NORWAY,ICELAND SPEC

main85355-42020iSXA10..LHD..CVT199712

SWEDEN,FINLAND,NORWAY,ICELAND SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iSXA1#..HT199404

85336GGAGE, WATER LEVEL

main85336-42010iSXA1#199404

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iSXA1#199404

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200×2iSXA1#199404

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85348-14390iSXA1#199404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iSXA1#..ARL,GCC,GEN199404-199809

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85376-10250iSXA1#199404

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-14481iSXA1#..ARL,GCC,GEN199404

main85355-16192iSXA1#..EUR199404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iSXA1#..EUR199404

L=1450(*H,L=700)

main90446-07001iSXA1#..ARL,GCC,GEN199404

L=1800(*H,L=700)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iSXA1#..HT199404

L=1450(*H,L=40)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iSXA1#..HT199404

L=1800(*H,L=650)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080×2iSXA1#..EUR199404-199511

L=1450(*H,L=350)

main90099-59175iSXA1#..ARL,GCC,GEN199511

L=1800(*H,L=390)

main90446-07001iSXA1#..ARL,GEN199404-199511

L=1800(*H,L=350)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iSXA1#..EUR199404-199511

L=1450(*H,L=50)

main90099-33382iSXA1#..ARL,GCC,GEN199809

L=1200

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iSXA1#..EUR199404

L=1450(*H,L=540)

main90099-33299iSXA1#..ARL,GCC,GEN199404

L=1000(*H,L=540)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33224iSXA1#..EUR199511

L=1200

main90099-33902iSXA1#..EUR199404-199511

L=1160

main90446-07001iSXA1#..ARL,GEN199404-199511

L=1800(*H,L=1140)

main90446-07013iSXA1#..ARL,GCC,GEN199404-199709

L=750

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iSXA1#..ARL,GCC,GEN199404

L=1450(*H,L=40)

1658111010CLAMP, HOSE(FOR WATER HOSE)

main16581-11010

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16020

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009935033

main90099-35033

9011906144

main90119-06144

9017906026

main90179-06026

9046907002

main90469-07002

31 parts on this diagram · 2 diagrams in section
