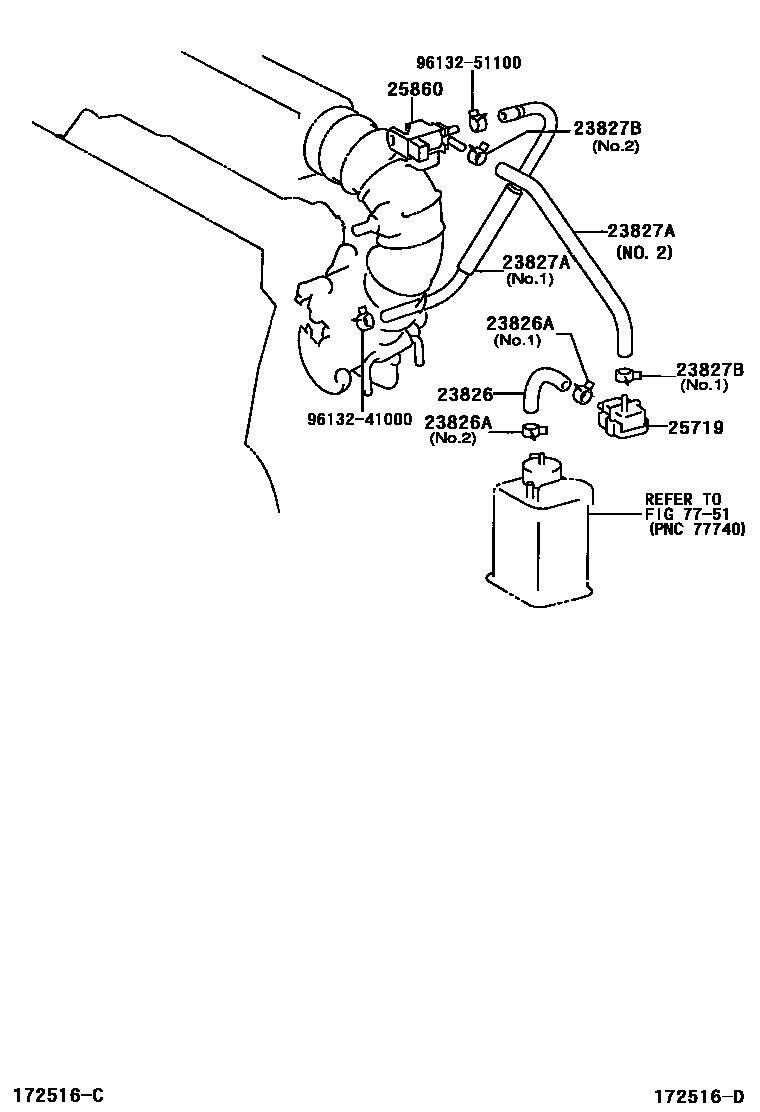

Toyota RAV4 — VACUUM PIPING
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
NO.1
NO.2
NO.2
NO.1
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1
NO.2
25719TANK, VACUUM SURGE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7751
9613241000
main96132-41000
9613251100
main96132-51100
9 parts on this diagram · 4 diagrams in section
