Toyota RAV4 — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

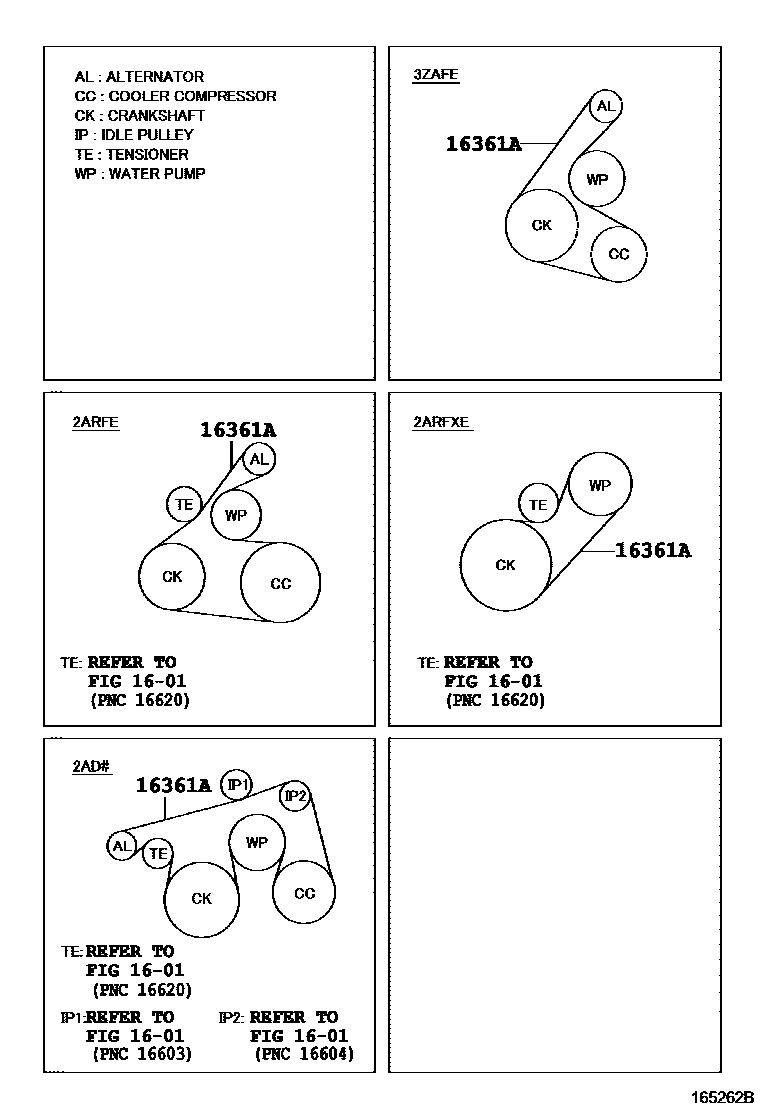

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02664i201510-201812

main90916-02667i201510-201812

BANDO

main90916-02668i201510-201812

MITSUBOSHI

main90916-02720i201510-201810

main90916-02721i201510-201810

BANDO

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota RAV4

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota RAV4. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
