Toyota RAV4 — V-BELT

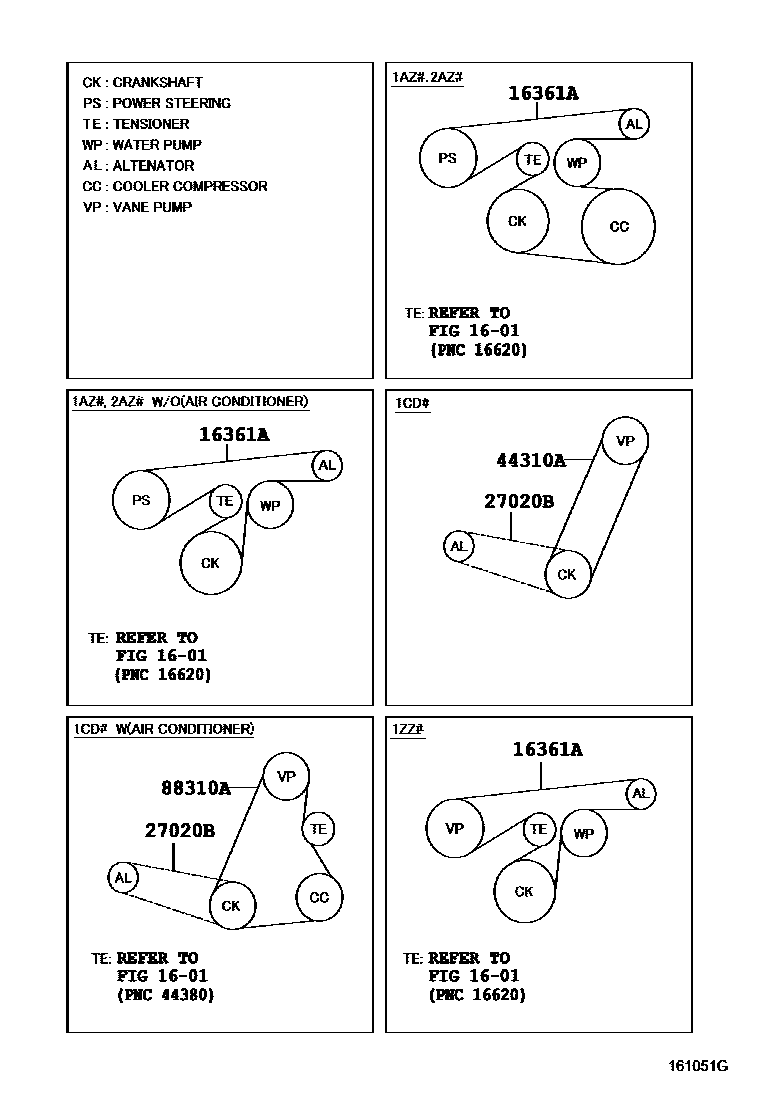

Parts diagram
1601WATER PUMP
→ Go to FIG 16-01
16361ABELT, V(FOR FAN & ALTERNATOR)
main90080-91214i200307-200402
MARK 90080-91214
main90916-02432i200005-200104
W(AIR CONDITIONER)
main90916-02468i200005-200104
main90916-02491i200005-200307
MARK 90916-02491
main90916-02494i200005-200307
W/O(AIR CONDITIONER),MARK 90916-02494
main90916-02502i200307-200403
W(AIR CONDITIONER),MARK 90916-02502
main90916-02503i200307-200403
W(AIR CONDITIONER),MARK 90916-02503
main90916-02534i200104-200207
W(AIR CONDITIONER)
main90916-02535i200104-200307
main90916-02547i200307-200511
W(AIR CONDITIONER)
main90916-02596i200403-200511
MARK 90916-02596
main90916-02597i200403-200511
MARK 90916-02597; W/O(AIR CONDITIONER),MARK 90916-02597
main90916-02598i200403-200511
MARK 90916-02598
main90916-02599i200403-200511
W(AIR CONDITIONER),MARK 90916-02599
27020BBELT, V(FOR ALTERNATOR)
main90916-02517i200307
44310ABELT, V(FOR VANE PUMP)
main99365-31120i200105-200307
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main90916-02647i200508-200511
L=1190
main99365-21190i200105-200307
L=1190
main99365-D1190i200406-200508
L=1190

5 parts on this diagram · 2 diagrams in section

V-BELT for Toyota RAV4

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota RAV4. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
