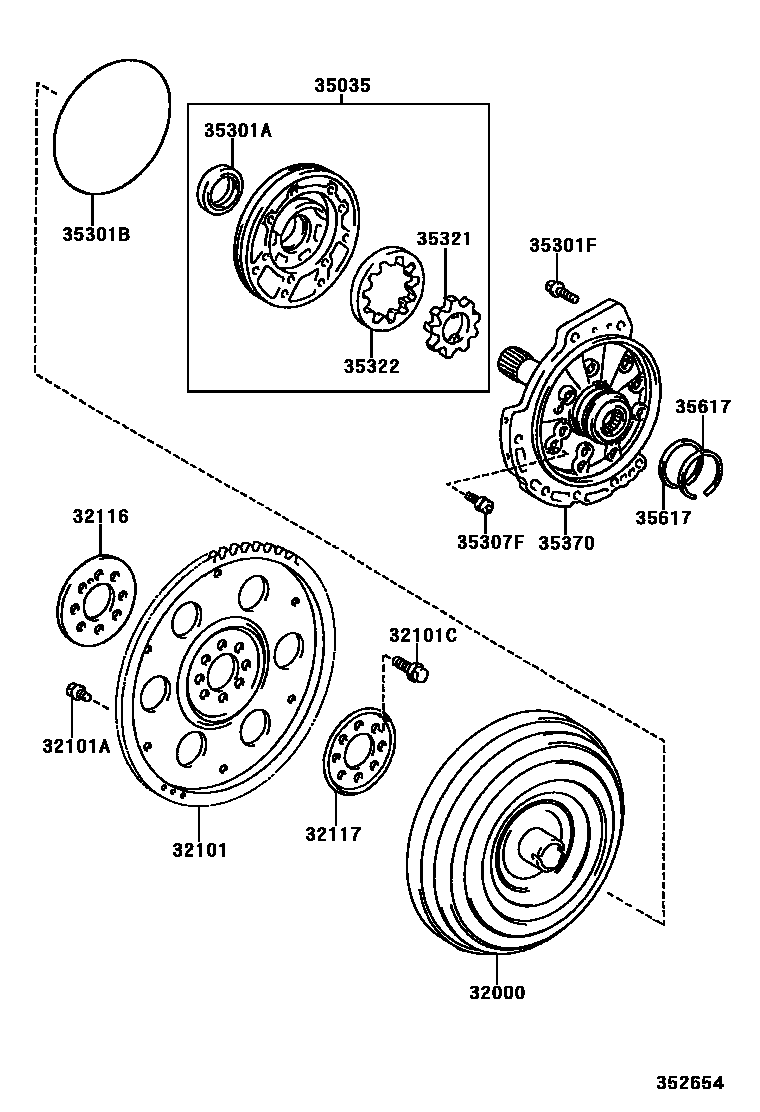

Toyota RAV4 — TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,GREEN
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
sub35035-12070
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
35370SHAFT ASSY, STATOR
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 1 diagram in section
