Toyota RAV4 — TIRE PRESSURE WARNING SYSTEM

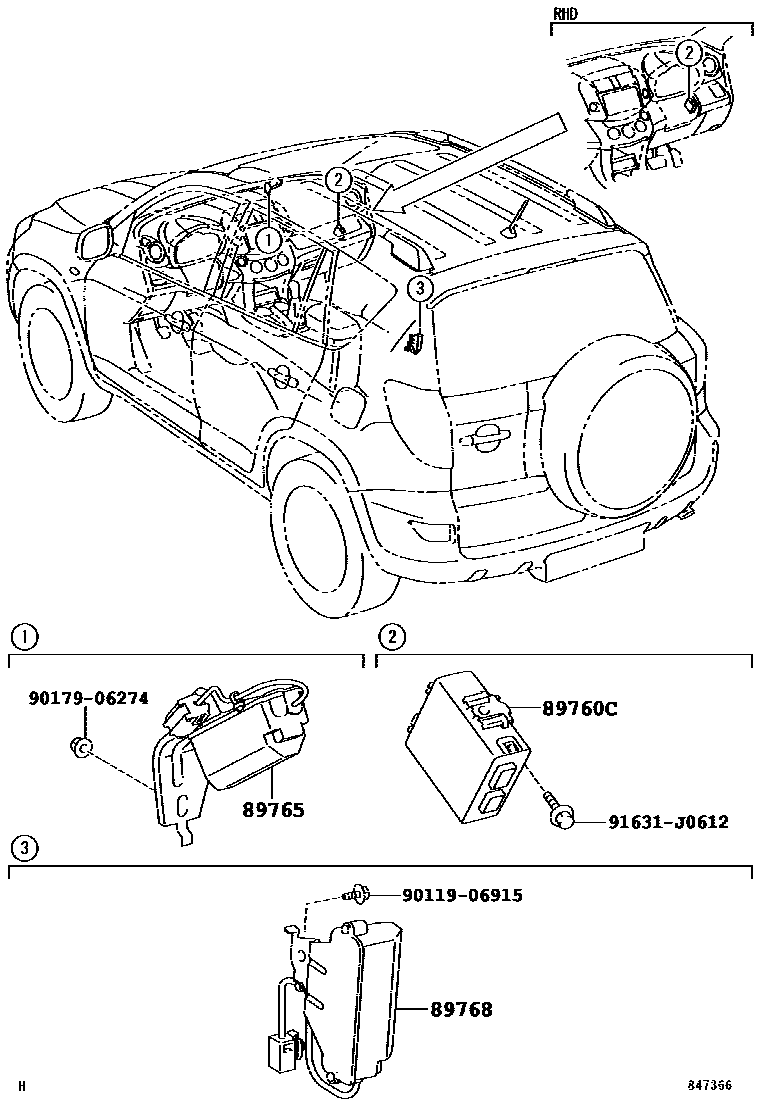

Parts diagram

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-42010

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-42010

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

6 parts on this diagram · 1 diagram in section
