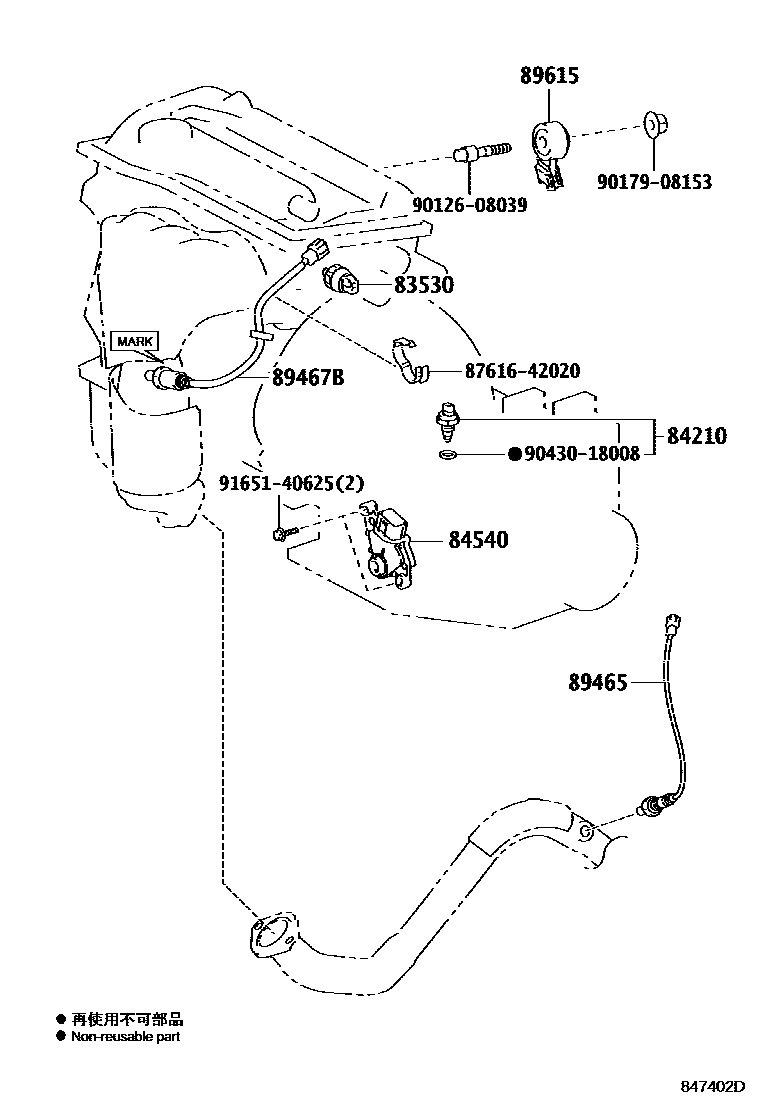

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACA30,33,38,GSA33,ZSA3#200511-201212

main83530-60010iALA30200511-201212

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACA33,38..5F200511-201206

sub84210-52050

main84210-52050iACA3#,ALA3#,ZSA3#..MTM201206-201212

84540SWITCH ASSY, NEUTRAL START

main84540-33010iALA30..6FC200903-201212

main84540-42010iACA3#,GSA33..ATM200511-201212

main84540-52070iZSA30..CVFC200812-201212

89465SENSOR, OXYGEN

main89465-42150iGSA33200708-201212

RR LH

main89465-42170iACA30,31;ACA33..G..GCC200511-200812

main89465-42170iACA30,33,38200808-201212

MARK=89465-42170

main89465-42190iGSA33200708-201212

RR RH

main89465-42210iZSA3#..LHD200812-201212

main89465-42220iZSA3#..RHD200812-201212

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZSA3#200812-201212

main89467-28010iACA30,33,38..LHD200511-201008

MARK 89467-28010

sub89467-72010

main89467-28120iACA30,33..RHD200511-201008

MARK 89467-28120

main89467-42070iALA30..DCRE,DCRL200511-200812

main89467-42080iGSA33200708-200808

LH, MARK=89467-42080

main89467-42080iGSA33200808-201212

FR LH

main89467-42090iGSA33200708-200808

RH, MARK=89467-42090

main89467-42090iGSA33200808-201212

FR RH

main89467-42100iACA3#..RHD201008-201212

MARK 89467-42100

main89467-42130iALA30..6FC200903-201212

main89467-42140iALA3#..6F..(DCRE,DCRL)200812-201212

main89467-58030iACA3#..LHD201008-201212

MARK 89467-58030

89615SENSOR, KNOCK CONTROL

main89615-20090iACA33..X..GCC;ACA33,38..ARL,GEN200511-201212

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 24 diagrams in section
