Toyota RAV4 — SWITCH & RELAY & COMPUTER

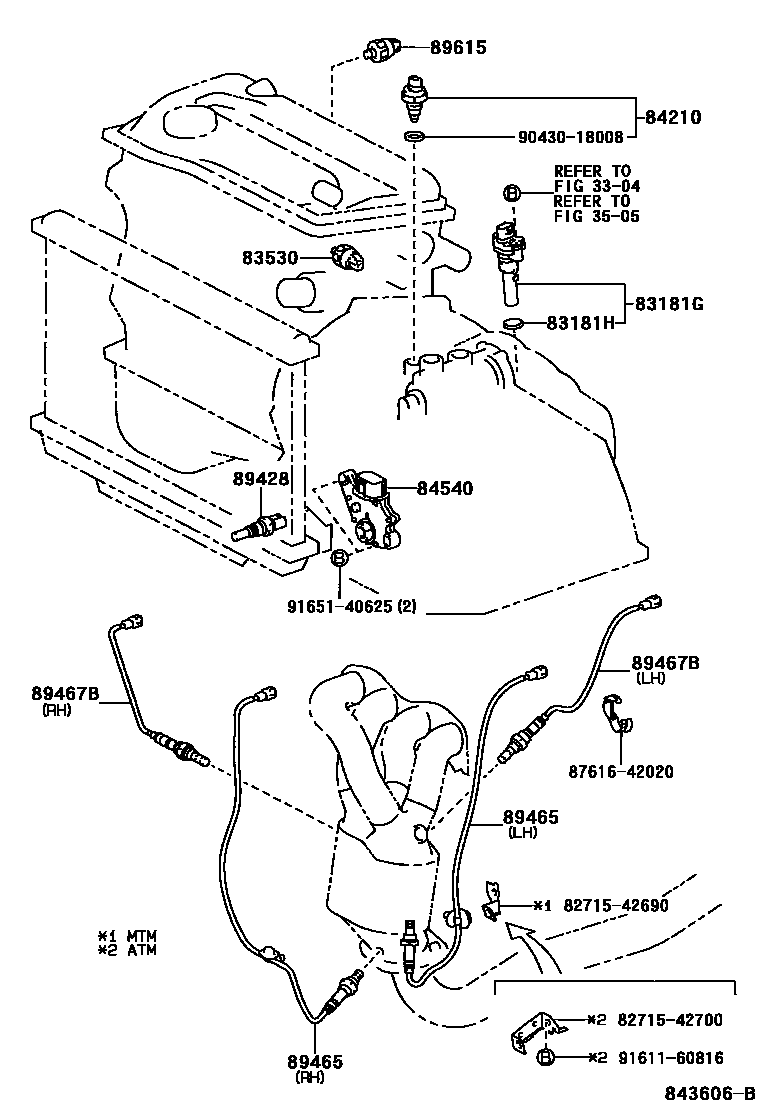

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1IGNITION & COMBINATION SWITCH0012 1IGNITION & COMBINATION SWITCH0013 1IGNITION & COMBINATION SWITCH0014 1DOOR,ROOF & FLOOR

3304

3505

83181GSENSOR, SPEEDOMETER

main83181-12020iZCA2#200005-200511

main83181-12050iACA2#..MTM200005-200511

main83181-42010iACA2#..ATM200005-200511

main83181-42020iCLA2#200105-200511

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18018iACA2#..ATM200005-200307

main96711-24030iACA2#,CLA2#,ZCA2#..MTM200005-200307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACA2#,ZCA2#200005-200307

DENSO

main83530-60010iCLA2#200105-200307

main83530-60020iACA2#,ZCA2#200005-200307

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACA2#,CLA2#,ZCA2#..MTM200005-200511

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12230iACA2#..ATM200005-200307

sub84540-32110

main84540-48010iACA2#..ATM200307-200511

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iACA2#,CLA2#200005-200307

89465SENSOR, OXYGEN

main89465-42060iZCA2#200005-200307

FRONT

main89465-42070iZCA2#200005-200307

REAR

main89465-42090iACA2#..ARL,EUR,GCC200005-200307

LH

main89465-42100iACA2#..ARL,EUR,GCC200005-200307

RH

main89465-42120iACA20,21..EUR,GCC200307

main89465-42130iACA22,23200307

89467BSENSOR, AIR FUEL RATIO

main89467-28010iACA20,21..EUR,GCC200307

sub89467-72010

main89467-42010iACA2#..ARL,EUR200005-200307

LH

main89467-42020iACA2#..ARL,EUR200005-200307

RH

main89467-42040iACA22,23200307

89615SENSOR, KNOCK CONTROL

main89615-12120iZCA2#200005-200307

main89615-20090iACA2#..ARL,EUR,GCC200307

main89615-30080iACA2#200005-200104

MATSUSHITA

main89615-32030iACA2#200005-200104

DENSO

main89615-44010iACA2#200104-200307

8271542690BRACKET,WIRING HARNESS CLAMP

main82715-42690

8271542700BRACKET,WIRING HARNESS CLAMP

main82715-42700

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9043018008

main90430-18008

9161160816

main91611-60816

9165140625

main91651-40625

17 parts on this diagram · 14 diagrams in section
