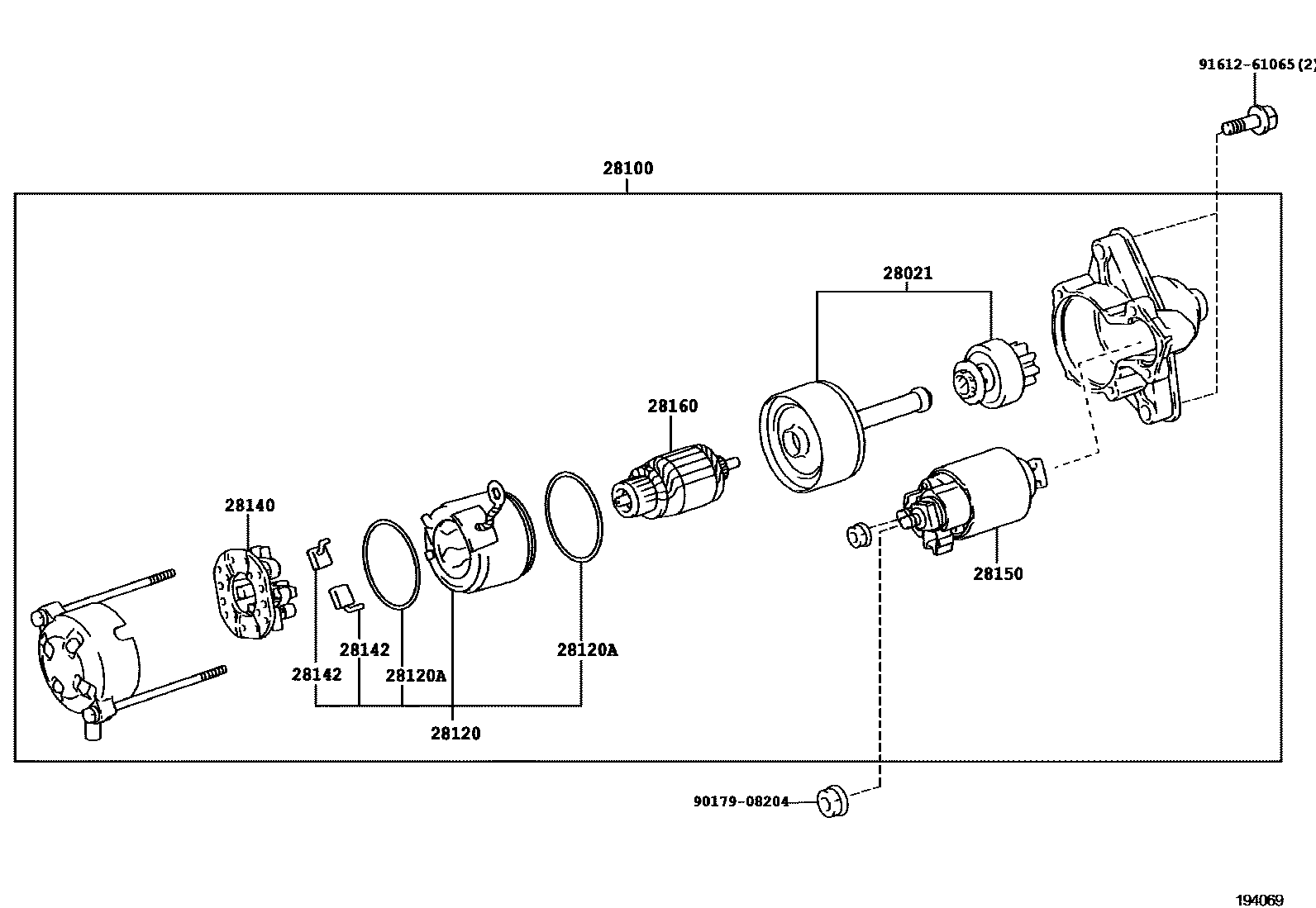

Toyota RAV4 — STARTER

0001 112V 1.0KW 0002 112V 1.3KW 0003 112V 1.6KW 0004 112V 1.7KW 0005 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-26180i2AD#..ALA49201510-201810

main28021-70020i3ZRFE..ZSA4#201510-201812

main28021-21060i3ZRFE..ZSA42..GEN201212-201510

RUSSIA SPEC

28100STARTER ASSY

main28100-26181i2AD#..ALA49201510-201810

12V 2.0KW

main28100-28062i2ARFE..ASA4#201212-201510

12V 1.6KW

main28100-37031i3ZRFE..ZSA4#201212-201407

12V 1.0KW

main28100-37032i3ZRFE..ZSA4#201510-201812

12V 1.0KW

main28100-20021i2ARFE..ASA44..G..GEN201212-201407

12V 1.7KW,UKURAINE SPEC

main28100-20022i2ARFE..ASA44..G..GEN201408-201510

12V 1.7KW,UKURAINE SPEC

main28100-37090i3ZRFE..ZSA42..GEN201410-201510

12V 1.3KW,*334

28120YOKE ASSY, STARTER

main28120-26180i2AD#..ALA49201510-201810

main28120-28060i2ARFE..ASA4#201510-201812

main28120-40130i3ZRFE..ZSA4#201212-201510

main28120-28080i3ZRFE..ZSA42..GEN201212-201510

RUSSIA SPEC

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i3ZRFE..ZSA4#201212-201510

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i2AD#..ALA49201510-201810

main28140-70020i3ZRFE..ZSA4#201510-201812

28142BRUSH, STARTER

main28142-70020×2i3ZRFE..ZSA4#201510-201812

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i3ZRFE..ZSA4#201510-201812

main28150-37020i2AD#..ALA49201510-201810

main28150-40090i2ARFE..ASA4#201510-201812

main28226-28051i2ARFE..ASA44..G..GEN201212-201510

RUSSIA SPEC

28160ARMATURE ASSY, STARTER

main28160-26180i2AD#..ALA49201510-201807

main28160-28040i2ARFE..ASA4#201212-201510

main28160-70050i3ZRFE..ZSA4#201212-201510

main28160-21060i3ZRFE..ZSA42..GEN201212-201510

RUSSIA SPEC

9017908204

main90179-08204

9161261065

main91612-61065

10 parts on this diagram · 5 diagrams in section
