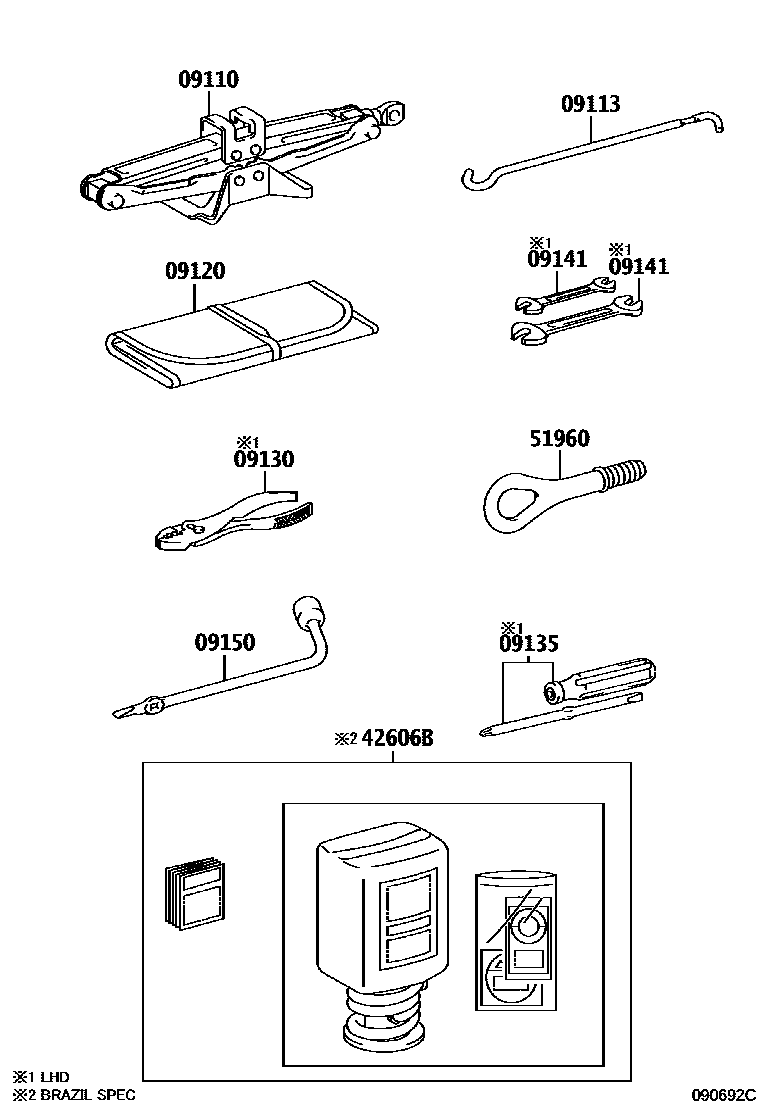

Toyota RAV4 — STANDARD TOOL

09110JACK ASSY

main09110-42070iALA49..DCRL;ALA49..X..DCRE201510-201810

main09111-0E011iAVA4#201510-201602

main09111-0R030iALA49..6F..(G,M)..DCR;ASA4#,ZSA4#..GCC,GEN,SA201605-201812

main09111-0W140iASA4#,ZSA4#..LHD201212-201510

main09111-0W150iAVA4#201603-201810

sub09111-0W151

09113HANDLE, JACK

main09113-42030iASA4#,ZSA4#201212-201510

09120BAG, TOOL

main09120-10040iASA4#,ZSA4#201212-201510

09130PLIERS

main99913-11500iASA4#,ZSA4#..LHD201212-201510

09135DRIVER, SCREW

main99915-10700iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201510-201812

09141SPANNER

main99914-10810iASA4#,ZSA4#..LHD201212-201510

8 X 10

main99914-11214iASA4#,ZSA4#..LHD201212-201510

12 X 14

09150WRENCH, HUB NUT BOX

main09150-42010iASA4#,ZSA4#201212-201510

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iASA4#,ZSA44..G..GEN201212-201410

BRAZIL SPEC

51960HOOK ASSY, FRONT

main51961-42040×2iASA4#,ZSA4#201212-201510

9 parts on this diagram · 1 diagram in section
