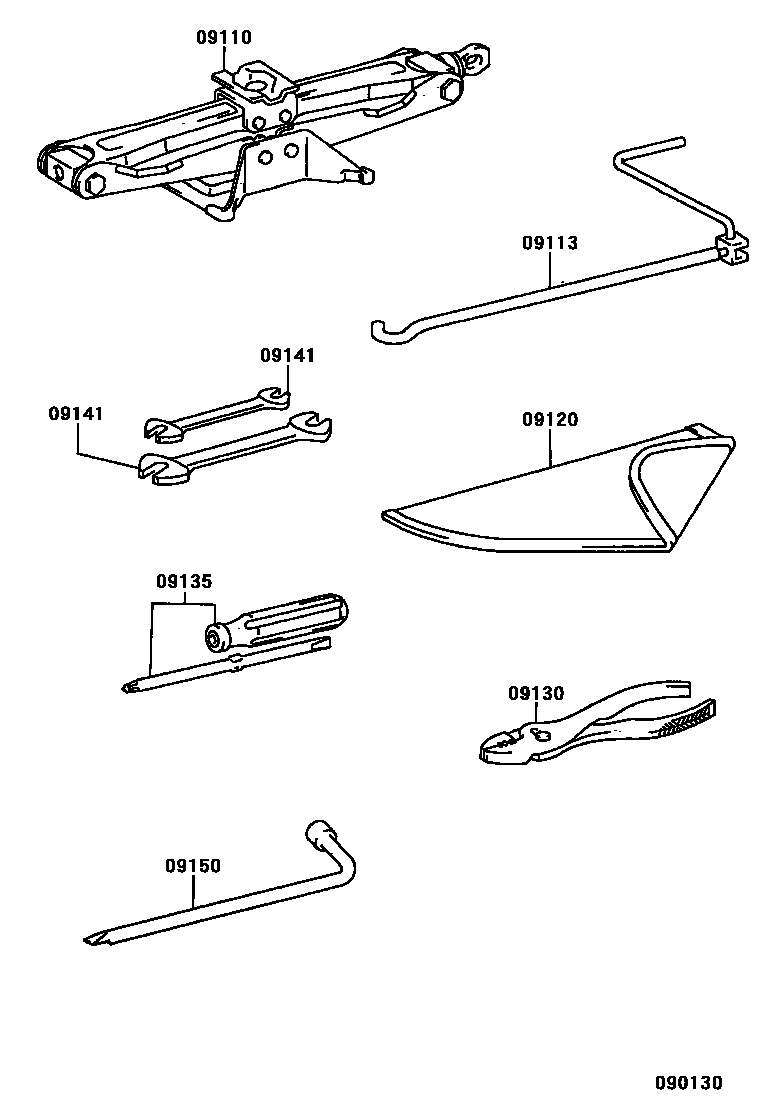

Toyota RAV4 — STANDARD TOOL

09110JACK ASSY

main09110-42030i200005-200511

main09110-42040i200005-200410

main09110-42041i200411-200511

W(DESTINATION PACKAGE CHINA)

09113HANDLE, JACK

main09113-42010i200005-200307

09120BAG, TOOL

main09120-30050i200005-200307

09130PLIERS

main99913-11500i200005-200307

09135DRIVER, SCREW

main99915-10700i200005-200307

09141SPANNER

main99914-10810i200005-200307

8 X 10

main99914-11214i200005-200307

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i200005-200511

7 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota RAV4

This section contains 7 genuine Toyota parts for the STANDARD TOOL system of the Toyota RAV4. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
