Toyota RAV4 — STANDARD TOOL

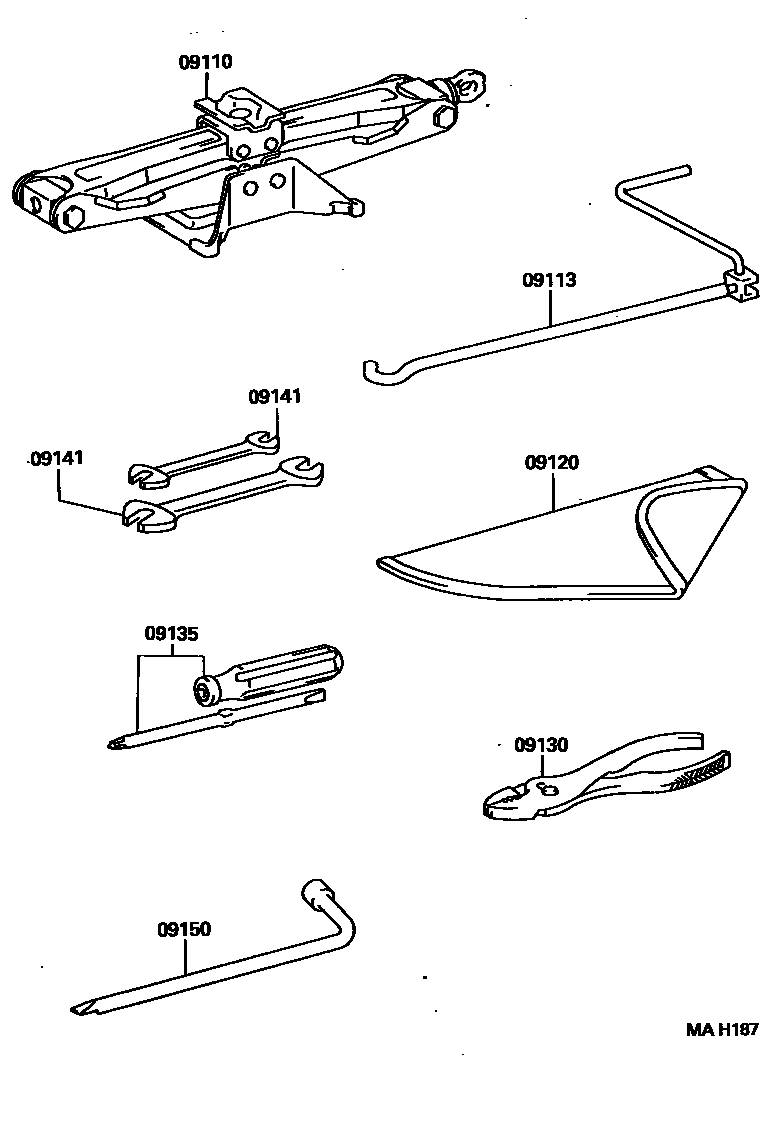

Parts diagram

09110JACK ASSY

main09110-42010i199404

main09110-42020i199608

main09111-42010i199404-199608

09113HANDLE, JACK

main09113-42010i199404

09120BAG, TOOL

main09120-30050i199404

09130PLIERS

main99913-11500i199404

09135DRIVER, SCREW

main99915-10700i199404

09141SPANNER

main99914-10810i199404

8 X 10

main99914-11214i199404

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i199404

7 parts on this diagram · 1 diagram in section
