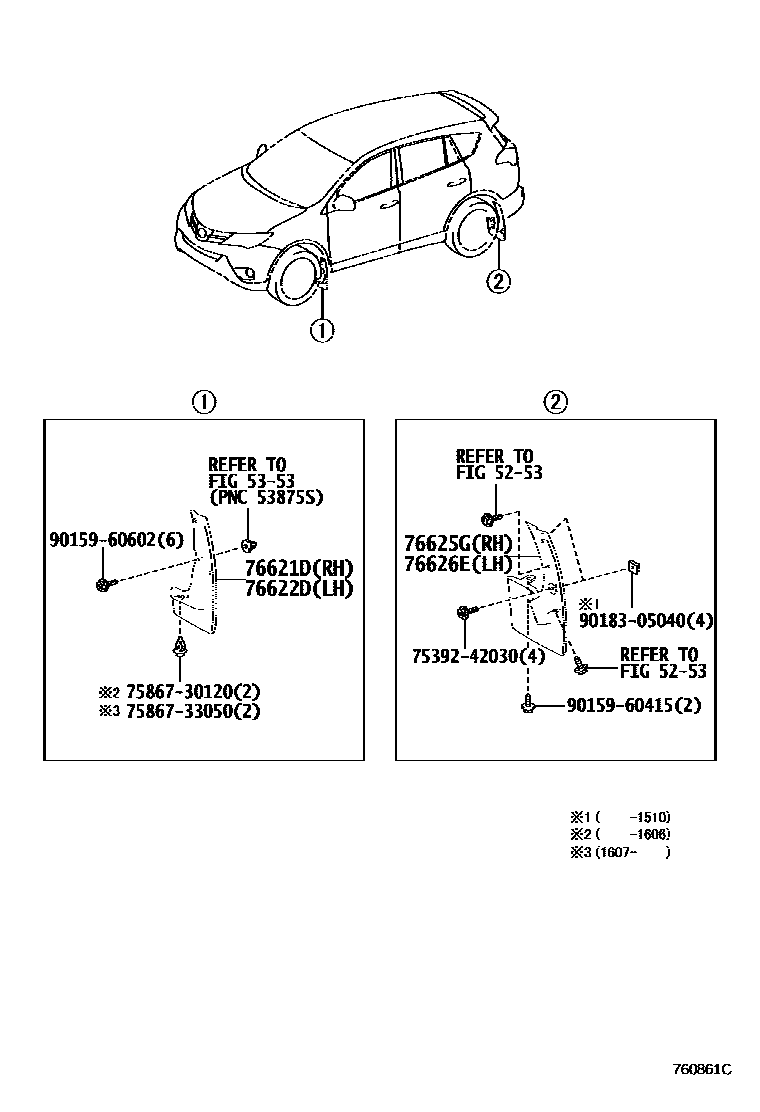

Toyota RAV4 — SPOILER & SIDE MUDGUARD
5253REAR BUMPER & BUMPER STAY
5353HOOD & FRONT FENDER
76621DMUDGUARD, FRONT FENDER, RH
main76621-42110iASA44,ZSA42..G..ARL; ASA44..6FC..X..ARL; ASA44..X..ARL; ZSA44;ZSA42..X;ASA4#..X..GEN;ASA4#,ZSA42..LHD..G201212-201510
MUD GUARD-WITH(FRONT & REAR); NEW ZEALAND SPEC; PAPUA NEW GUINEA SPEC
MUD GUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
main76622-42110iASA44,ZSA42..G..ARL; ASA44..6FC..X..ARL; ASA44..X..ARL; ZSA44;ZSA42..X;ASA4#..X..GEN;ASA4#,ZSA42..LHD..G201212-201510
MUD GUARD-WITH(FRONT & REAR); NEW ZEALAND SPEC; PAPUA NEW GUINEA SPEC
MUD GUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-42140iASA4#,ZSA4#..LHD; ASA44,ZSA42..ARL; ZSA4#..GEN;ASA4#..LHD..G;ASA4#..X..GEN; ZSA42..X..ARL;ASA44,ZSA42..(6FC,A)..G..ARL201212-201510
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY); MUD GUARD-WITHOUT
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-42200iASA4#,ZSA4#..LHD; ASA44,ZSA42..ARL; ZSA4#..GEN;ASA4#..LHD..G;ASA4#..X..GEN; ZSA42..X..ARL;ASA44,ZSA42..(6FC,A)..G..ARL201212-201510
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY); MUD GUARD-WITHOUT
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
7586730120MOULDING, FRONT PANEL
main75867-30120
7586733050MOULDING, FRONT PANEL
main75867-33050
9015960415
main90159-60415
9015960602
main90159-60602
9018305040
main90183-05040
12 parts on this diagram · 3 diagrams in section
SPOILER & SIDE MUDGUARD for Toyota RAV4
This section contains 59 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RAV4. Key components include: REAR BUMPER & BUMPER STAY, HOOD & FRONT FENDER, PAD, FRONT WHEEL OPENING EXTENSION, NO.1, PAD, FRONT WHEEL OPENING EXTENSION, NO.3, PAD, FRONT WHEEL OPENING EXTENSION, NO.5.
