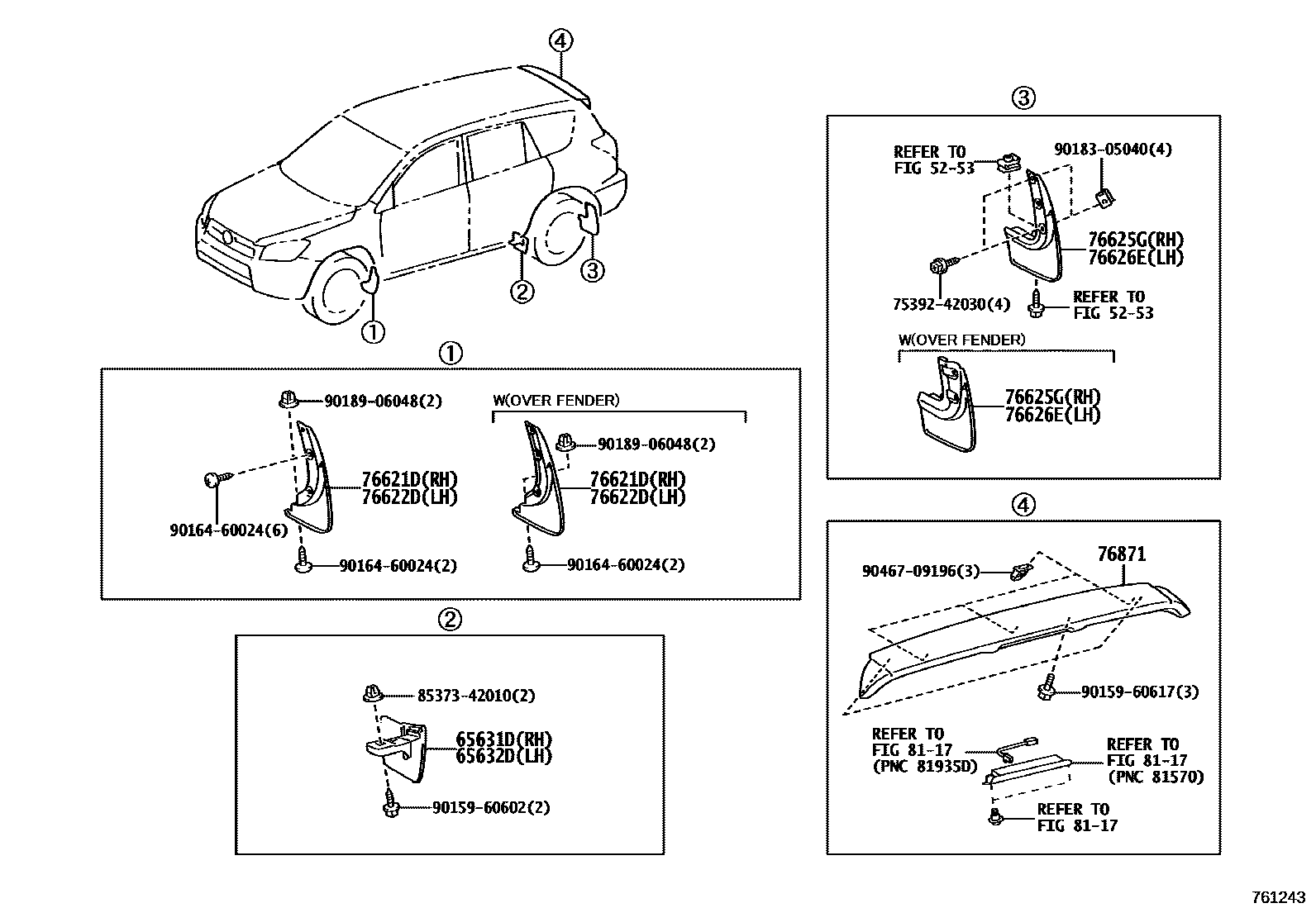

Toyota RAV4 — SPOILER & SIDE MUDGUARD

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42010i200511-200808

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42010i200511-200808

76621DMUDGUARD, FRONT FENDER, RH

main76621-42090i200511-200808

PAPUA NEW GUINEA SPEC

main76621-42100i200511-200808

PAPUA NEW GUINEA SPEC

76622DMUDGUARD, FRONT FENDER, LH

main76622-42090i200812-201212

MUD GUARD-WITH(FRONT & REAR)

main76622-42100i200808-201212

PAPUA NEW GUINEA SPEC

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-42100i200808-201212

MUD GUARD-WITH(REAR ONLY); OVER FENDER-WITH&MUD GUARD-WITH(REAR ONLY)

main76625-42120i200511-200808

MUD GUARD-WITH(REAR ONLY)

main76625-42110i201002-201212

TIRE & DISK WHEEL-235/55R18H ALM 7.5J GRAY&MUD GUARD-WITH(REAR ONLY)

main76625-42130i200812-201212

MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-42160i200511-200808

OVER FENDER-WITH&MUD GUARD-WITH(REAR ONLY)

main76626-42180i200511-200808

MUD GUARD-WITH(REAR ONLY)

main76626-42170i200511-200812

MUD GUARD-WITH(REAR ONLY)

main76626-42190i200812-201212

MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)

76871SPOILER, REAR

main76085-42901-A0i200701-200812

SUPER WHITE 2,040

main76085-42901-A1i200701-200812

WHITE PEARL CS.,070

main76085-42901-B0i200701-200812

DK.GRAY MC.,1E0

main76085-42901-B1i200701-200812

SILVER ME.,1F7

main76085-42901-B2i200808-201212

GRAY ME.,1G3

main76085-42901-B3i201002-201212

DK. STEEL MC.,1H2

main76085-42901-C0i200701-200812

BLACK,202

main76085-42901-D0i200701-200812

RED M.M.,3R3

main76085-42901-D1i201002-201008

DK.RED.M.M.,3Q3

main76085-42901-E0i200701-200812

BEIGE ME.,4R4

main76085-42901-E1i200808-201212

BRONZE M.M.,4T3

main76085-42901-E2i200808-201212

BEIGE ME.,4T8

main76085-42901-G0i200808-201008

DK.GREEN MC.,6T3

main76085-42901-G1i200701-200812

LT.GREEN ME.,6T6

main76085-42901-J0i200701-200812

GRAYISH BLUE ME.,8R3; GRAYISH BLUE ME.,8R3 ,8S6

main76085-42901-J1i200701-200812

DK.BLUE MC.,8S6

main76085-42901-K0i200812-201002

DK.VIOLET M.M.,9AF

main76871-42060-A0i200511-200701

SUPER WHITE 2,040

main76871-42060-A1i200511-200701

WHITE PEARL CS.,070

main76871-42060-B0i200511-200701

DK.GRAY MC.,1E0

main76871-42060-B1i200511-200701

SILVER ME.,1F7

main76871-42060-C0i200511-200701

BLACK,202

main76871-42060-D0i200511-200701

RED M.M.,3R3

main76871-42060-E0i200511-200701

BEIGE ME.,4R4

main76871-42060-G0i200511-200701

DK.GREEN MC.,6T3

main76871-42060-G1i200511-200701

LT.GREEN ME.,6T6

main76871-42060-J0i200511-200701

GRAYISH BLUE ME.,8R3

main76871-42060-J1i200511-200701

DK.BLUE MC.,8S6

main76085-42902-A1i201112-201212

GRADE MARK-LIMITED,WHITE PEARL CS.,070

main76085-42902-B1i201112-201212

GRADE MARK-LIMITED,SILVER ME.,1F7

main76085-42902-B2i201112-201212

GRADE MARK-LIMITED,GRAY ME.,1G3

main76085-42902-B3i201112-201212

GRADE MARK-LIMITED,DK.STEEL MC.,1H2

main76085-42902-C0i201112-201212

GRADE MARK-LIMITED,BLACK,202

main76085-42902-D0i201112-201212

GRADE MARK-LIMITED,RED M.M.,3R3

main76085-42902-E1i201112-201212

GRADE MARK-LIMITED,BRONZE M.M.,4T3

8117CENTER STOP LAMP

→ Go to FIG 81-17

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-42010

9015960602

main90159-60602

9015960617

main90159-60617

9016460024

main90164-60024

9018305040

main90183-05040

9018906048

main90189-06048

9046709196

main90467-09196

17 parts on this diagram · 2 diagrams in section

SPOILER & SIDE MUDGUARD for Toyota RAV4

This section contains 53 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RAV4. Key components include: EXTENSION, FRONT BUMPER, RH, EXTENSION, FRONT BUMPER, LH, REAR BUMPER & BUMPER STAY, HOOD & FRONT FENDER, PAD, FRONT WHEEL OPENING EXTENSION, NO.1.
