Toyota RAV4 — SPOILER & SIDE MUDGUARD

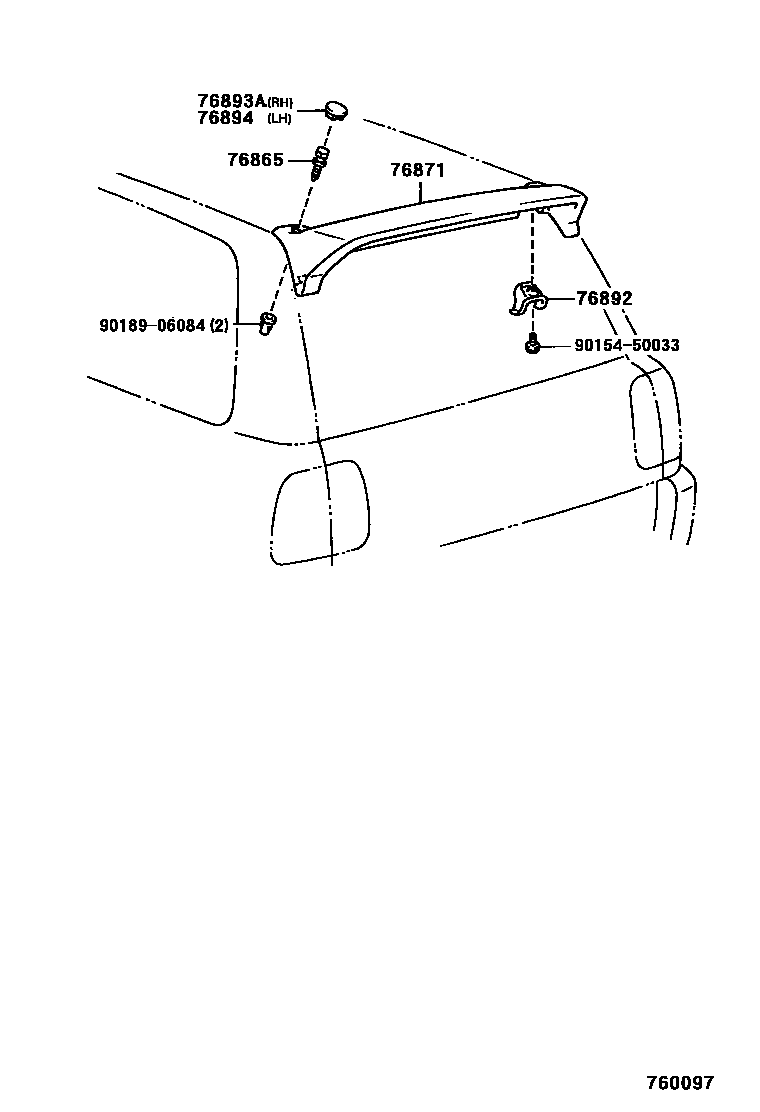

Parts diagram
76865RETAINER, REAR SPOILER, NO.1
main76865-42010×2i199704-199705
OASIS EDITION(AUSTRALIA)
76871SPOILER, REAR
main76871-42900i199704-199705
OASIS EDITION(AUSTRALIA)
76892SPOILER, REAR NO.2
main76892-42900i199704-199705
OASIS EDITION(AUSTRALIA)
76893ACOVER, REAR SPOILER, RH
main76893-42900i199704-199705
OASIS EDITION(AUSTRALIA)
76894COVER, REAR SPOILER, LH
main76894-42900i199704-199705
OASIS EDITION(AUSTRALIA)
9015450033
main90154-50033
9018906084
main90189-06084

7 parts on this diagram · 1 diagram in section

SPOILER & SIDE MUDGUARD for Toyota RAV4

This section contains 7 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RAV4. Key components include: RETAINER, REAR SPOILER, NO.1, SPOILER, REAR, SPOILER, REAR NO.2, COVER, REAR SPOILER, RH, COVER, REAR SPOILER, LH.
