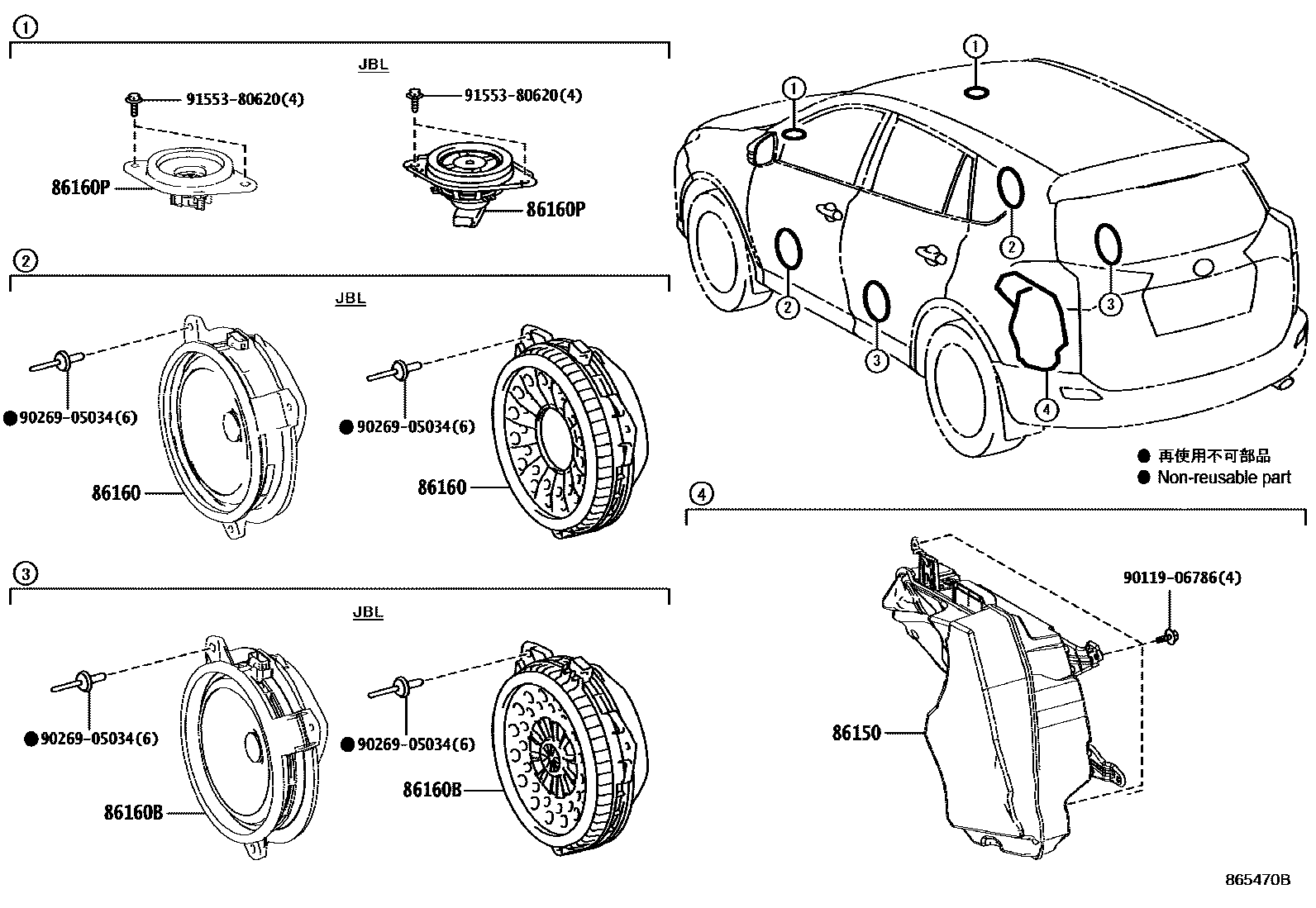

Toyota RAV4 — SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0R010iASA44,ZSA42..G..ARL201311-201510

AUDIO-13MM JBL *DA(*DLX) W(DAB)

main86150-0R030iALA49,ZSA42..6F..G..ARL201510-201608

AUDIO-JBL AVN DAB AUST

main86150-42060iASA44,ZSA42..G..ARL201802-201812

AUDIO-JBL AVN DAB AUST

86160SPEAKER ASSY, FRONT NO.1

main86160-52330×2iASA4#,ZSA4#201212-201506

main86160-52331×2iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

main86150-47010×2iALA49..G..ARL201802-201810

AUDIO-JBL AVN DAB AUST

main86160-0R110×2iASA44,ZSA42..G..ARL201311-201510

AUDIO-13MM JBL *DA(*DLX) W(DAB)

main86160-0WX80×2iALA49,ZSA42..6F..G..ARL201510-201608

AUDIO-JBL AVN DAB AUST

86160BSPEAKER ASSY, REAR

main86160-52330×2iASA4#,ZSA4#201212-201506

main86160-52331×2iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

main86160-0R140×2iASA44,ZSA42..G..ARL201311-201510

AUDIO-13MM JBL *DA(*DLX) W(DAB)

main86160-47270×2iALA49..G..ARL201802-201810

AUDIO-JBL AVN DAB AUST

86160PSPEAKER ASSY, FRONT NO.2

main86150-42010×2iASA4#..G..GCC;ASA44,ZSA42..ARL201212-201510

AUDIO-6SPEAKER(AUDIO LESS)

main86160-0WU50×2iASA44,ZSA42..G..ARL201311-201510

AUDIO-13MM JBL *DA(*DLX) W(DAB)

main86160-33840×2iALA49..G..ARL201802-201810

AUDIO-JBL AVN DAB AUST

9011906786

main90119-06786

9026905034

main90269-05034

9155380620

main91553-80620

7 parts on this diagram · 2 diagrams in section
