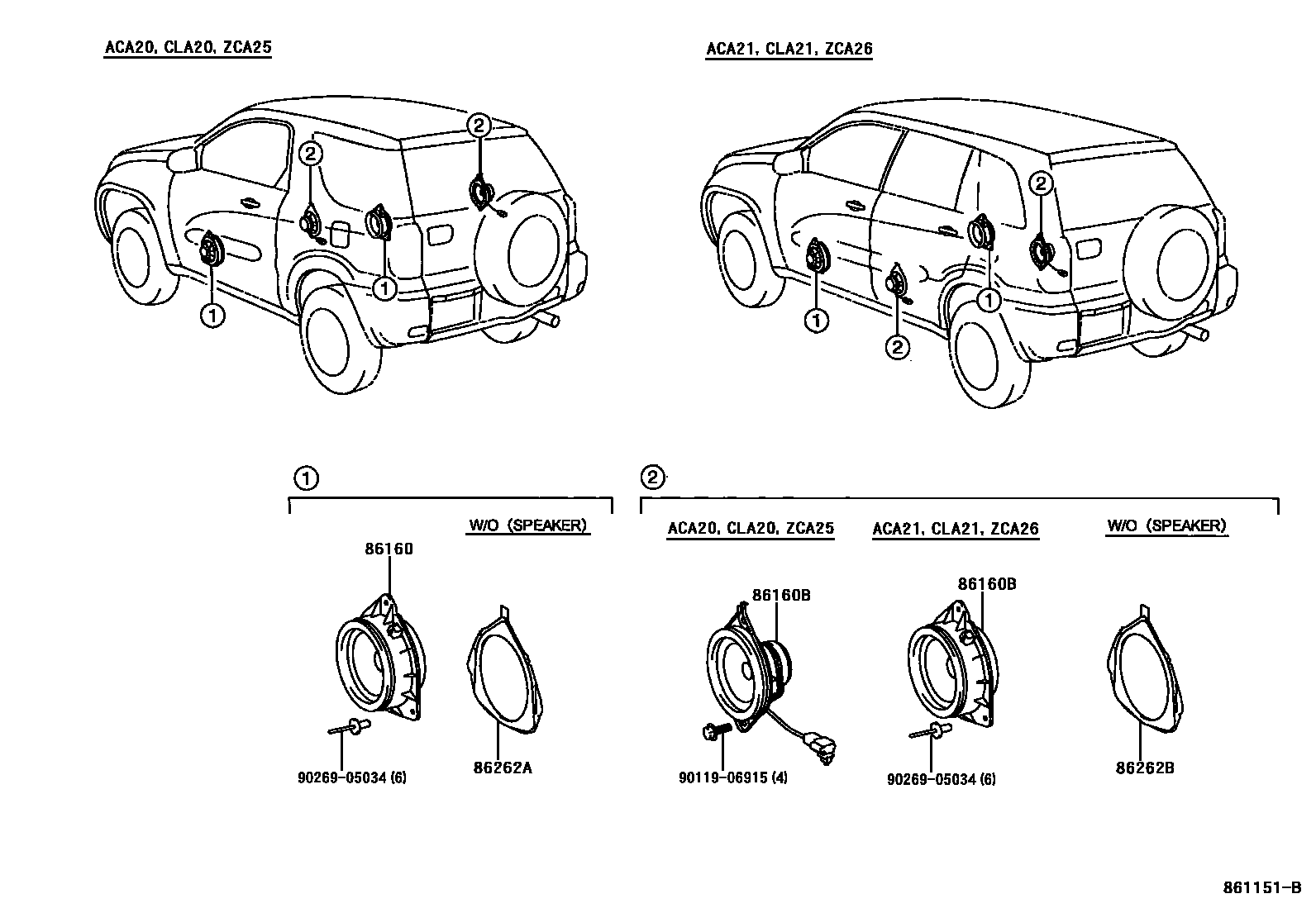

Toyota RAV4 — SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-42070×2iACA2#,CLA2#,ZCA2#200005-200307

main86160-42110×2iACA2#,CLA2#,ZCA2#200407

86160BSPEAKER ASSY, REAR

main86160-42070×2iACA21,23,CLA21,ZCA26200307-200407

main86160-42080×2iACA20,22,CLA20,ZCA25200307

main86160-42110×2iACA21,23,CLA21,ZCA26200407

86262ACOVER, SPEAKER, FRONT

main86262-17010×2iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200307

86262BCOVER, SPEAKER, REAR

main86262-17010×2iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

9011906915

main90119-06915

9026905034

main90269-05034

6 parts on this diagram · 2 diagrams in section
