Toyota RAV4 — SIDE WINDOW

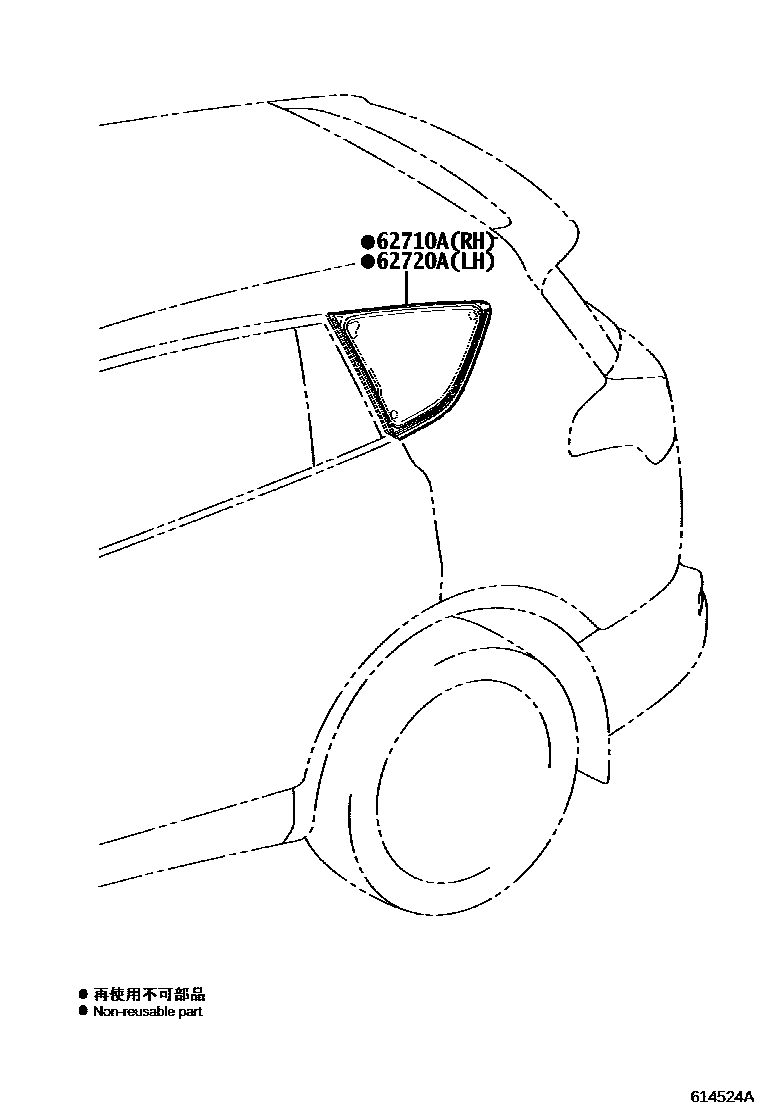

62710AWINDOW ASSY, QUARTER, RH

main62710-42310iASA44..X;ASA42..GCC;ASA44..G..GCC;ASA42,ZSA4#..X..(ARL,GEN)201212-201510

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62710-42320iASA4#..G..(ARL,GEN,SA);ALA49,ZSA4#..(CVT,MTM)..G201510-201812

REAR SIDE GLASS-REINFORCED(GRAY)

main62710-42400iZSA42..G..GEN201410-201510

*UVCT,T=3.1,GREEN,BRAZIL SPEC

sub62710-42401

62720AWINDOW ASSY, QUARTER, LH

main62720-42340iASA44..X;ASA42..GCC;ASA44..G..GCC;ASA42,ZSA4#..X..(ARL,GEN)201212-201510

*UVCT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main62720-42350iASA4#,ZSA4#..G..(ARL,GEN)201212-201510

*TEM,T=3.1,DARK.GRAY

main62720-42430iZSA42..G..GEN201410-201510

*UVCT,T=3.1,GREEN,BRAZIL SPEC

sub62720-42431

2 parts on this diagram · 1 diagram in section
