Toyota RAV4 — SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-42090iACA20,CLA20,ZCA25200005-200307

*UVCTT,T=3.5,GREEN

main62710-42130iACA21,CLA21,ZCA26200005-200307

*UVCTT,T=3.1,GREEN

main62710-42170iACA20,22,CLA20,ZCA25200307

*UVCT,T=3.5,GREEN

main62710-42190iACA20,CLA20,ZCA25..EUR200307

*TT,T=3.5,DARK GRAY

main62710-42210iACA21,23,CLA21,ZCA26200307

*UVCT,T=3.1,GREEN

main62710-42230iACA21,CLA21,ZCA26..EUR200307

*TT,T=3.1,DARK GRAY

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-42010iACA20,CLA20,ZCA25200005-200307

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62716-42010iACA20,CLA20,ZCA25200005-200307

62720AWINDOW ASSY, QUARTER, LH

main62720-42120iACA20,CLA20,ZCA25200005-200307

*UVCTT,T=3.5,GREEN

main62720-42160iACA21,CLA21,ZCA26200005-200307

*UVCTT,T=3.1,GREEN

main62720-42200iACA20,22,CLA20,ZCA25200307

*UVCT,T=3.5,GREEN

main62720-42220iACA20,CLA20,ZCA25..EUR200307

*TT,T=3.5,DARK GRAY

main62720-42240iACA21,23,CLA21,ZCA26200307

*UVCT,T=3.1,GREEN

main62720-42260iACA21,CLA21,ZCA26..EUR200307

*TT,T=3.1,DARK GRAY

62761JRETAINER, QUARTER WINDOW GLASS, FRONT RH

main62761-42010iACA20,CLA20,ZCA25200005-200307

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62762-42010iACA20,CLA20,ZCA25200005-200307

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-42020iACA20,CLA20,ZCA25200005-200307

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-42010iACA20,CLA20,ZCA25200005-200307

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-42010iACA20,CLA20,ZCA25200005-200307

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-42010iACA20,CLA20,ZCA25200005-200307

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62791-42010iACA20,CLA20,ZCA25200005-200307

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62792-42010iACA20,CLA20,ZCA25200005-200307

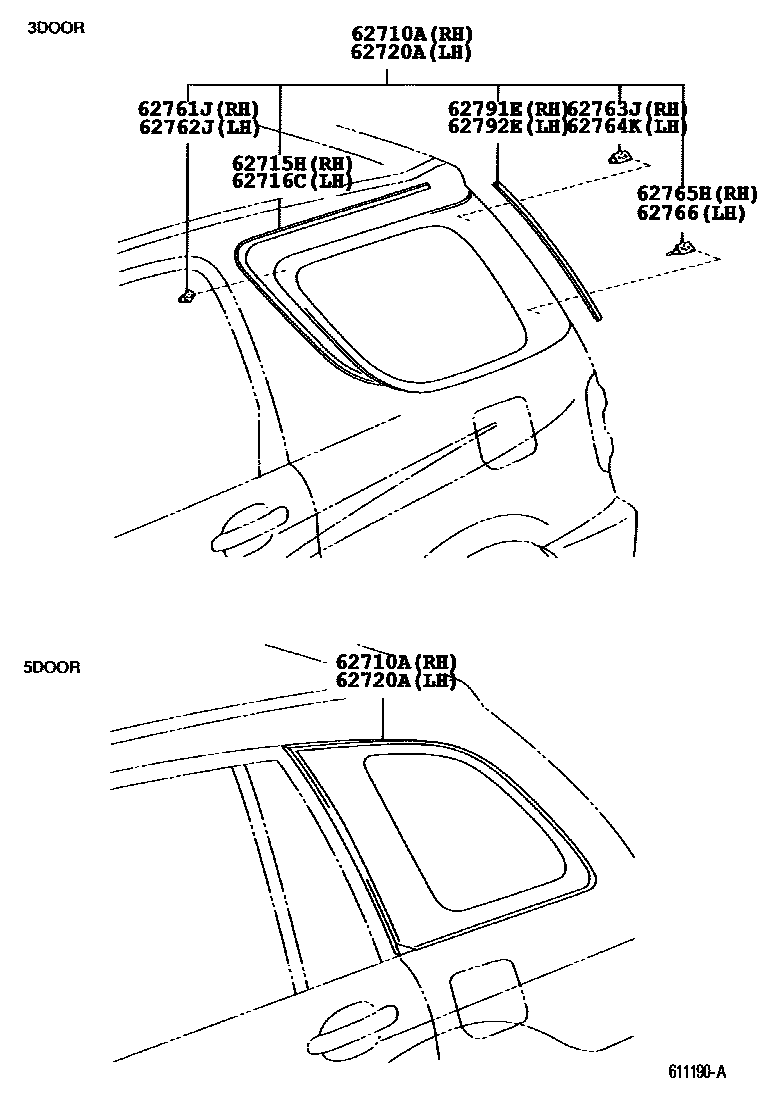

12 parts on this diagram · 1 diagram in section
