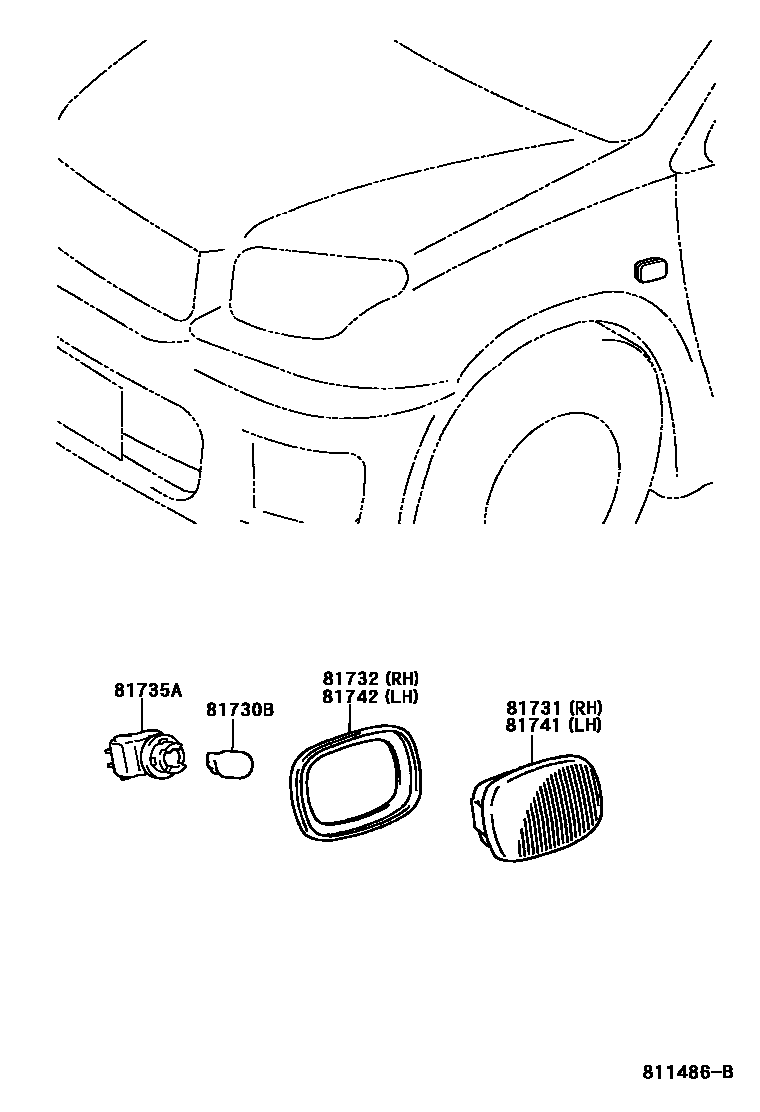

Toyota RAV4 — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-51010iACA2#,CLA2#,ZCA2#200307

sub81730-51011

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iACA2#,CLA2#,ZCA2#200005-200307

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17051iACA2#,CLA2#,ZCA2#200005-200307

main81731-51010iACA2#,CLA2#,ZCA2#200307

sub81731-51011

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-17050iACA2#,CLA2#,ZCA2#200005-200307

81735ASOCKET & WIRE, SIDE TURN SIGNAL LAMP

main90075-60005iACA2#,CLA2#,ZCA2#200307

main90075-99012iACA2#,CLA2#,ZCA2#200005-200307

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17051iACA2#,CLA2#,ZCA2#200005-200307

main81731-51010iACA2#,CLA2#,ZCA2#200307

sub81731-51011

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-17050iACA2#,CLA2#,ZCA2#200005-200307

7 parts on this diagram · 2 diagrams in section
