Toyota RAV4 — SHORT BLOCK ASSEMBLY

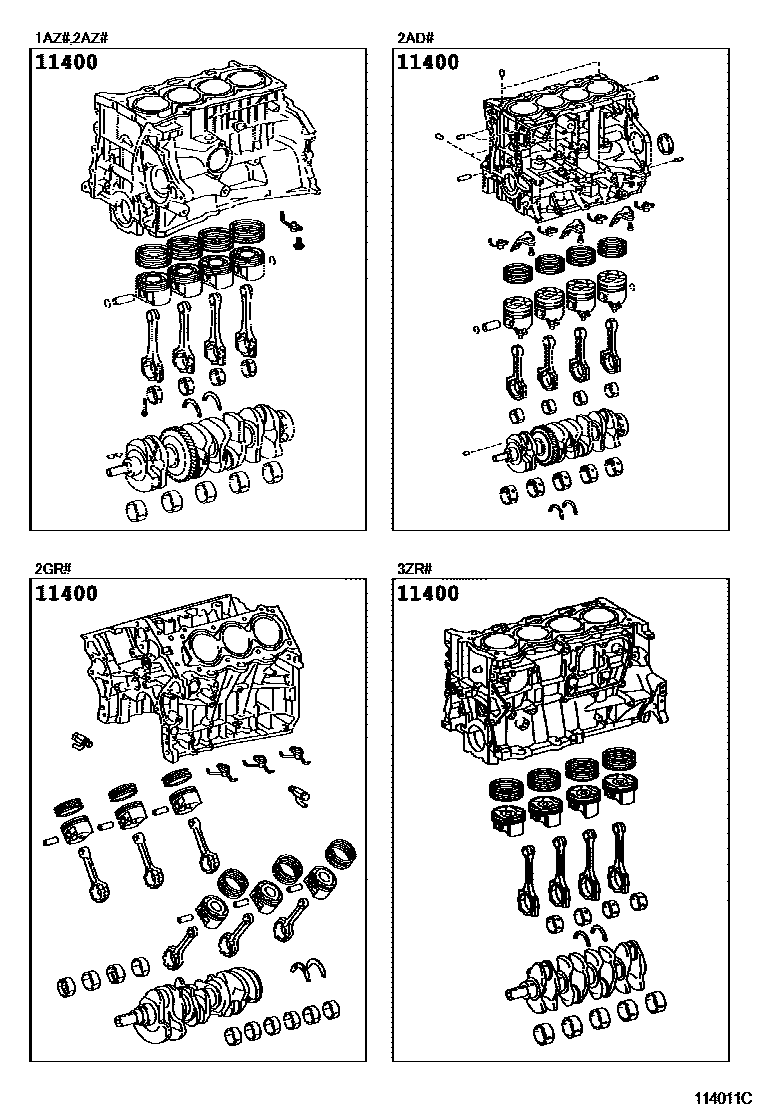

Parts diagram

11400BLOCK ASSY, SHORT

main11400-26090i200602-200807

main11400-26100i200602-200807

main11400-26110i200511-200602

main11400-26120i200511-200602

main11400-26151i200812-201212

main11400-26210i200807-200812

main11400-26220i200807-200812

ALGERIA SPEC; BERMUDA SPEC; SOUTH AFRICA SPEC

main11400-28070i200511-200608

main11400-28261i200608-200812

main11400-28400i200801-200812

main11400-28490i200511-200601

main11400-28510i200808-201212

main11400-31161i200708-200808

main11400-31163i200905-201210

main11400-31360i201210-201212

main11400-37090i200812-201212

main11400-28500i201008-201212

BRAZIL SPEC

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota RAV4

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota RAV4. Key components include: BLOCK ASSY, SHORT.
