Toyota RAV4 — SHORT BLOCK ASSEMBLY

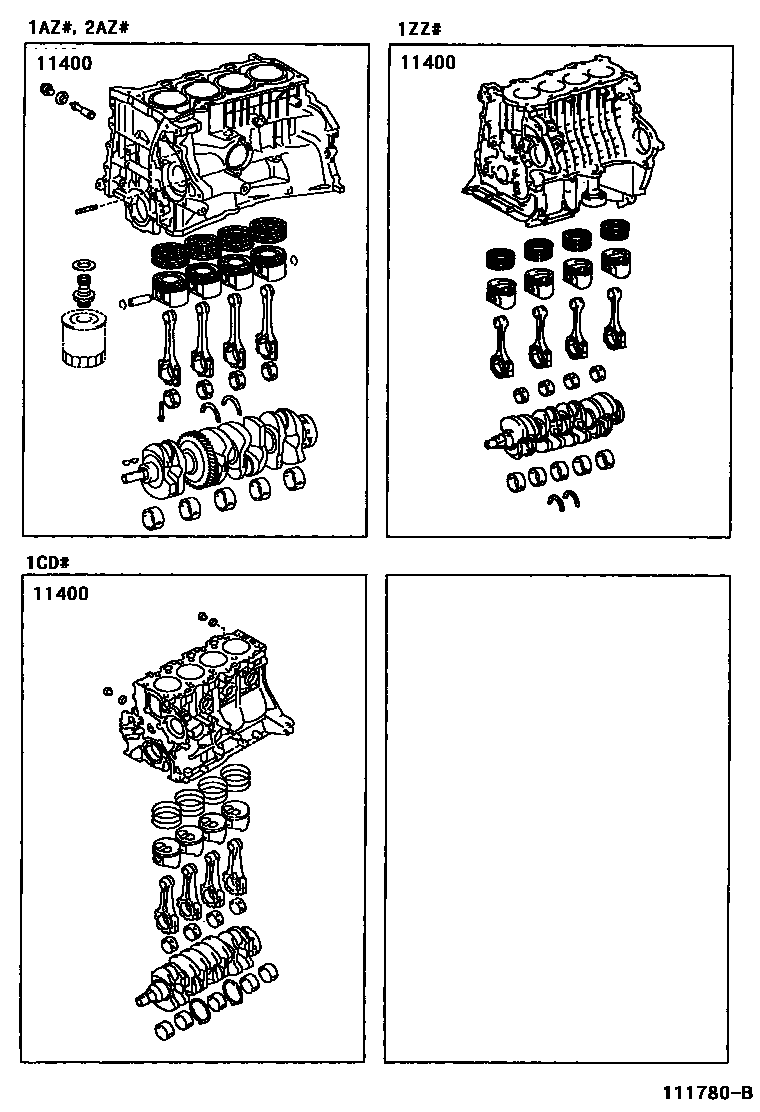

Parts diagram
11400BLOCK ASSY, SHORT
main11400-22060i200101-200202
main11400-22061i200202-200307
main11400-22100i200005-200101
main11400-22121i200307
main11400-27130i200105-200307
main11400-28050i200307
main11400-28070i200404
main11400-28080i200008-200108

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota RAV4

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota RAV4. Key components include: BLOCK ASSY, SHORT.
