Toyota RAV4 — SEAT & SEAT TRACK

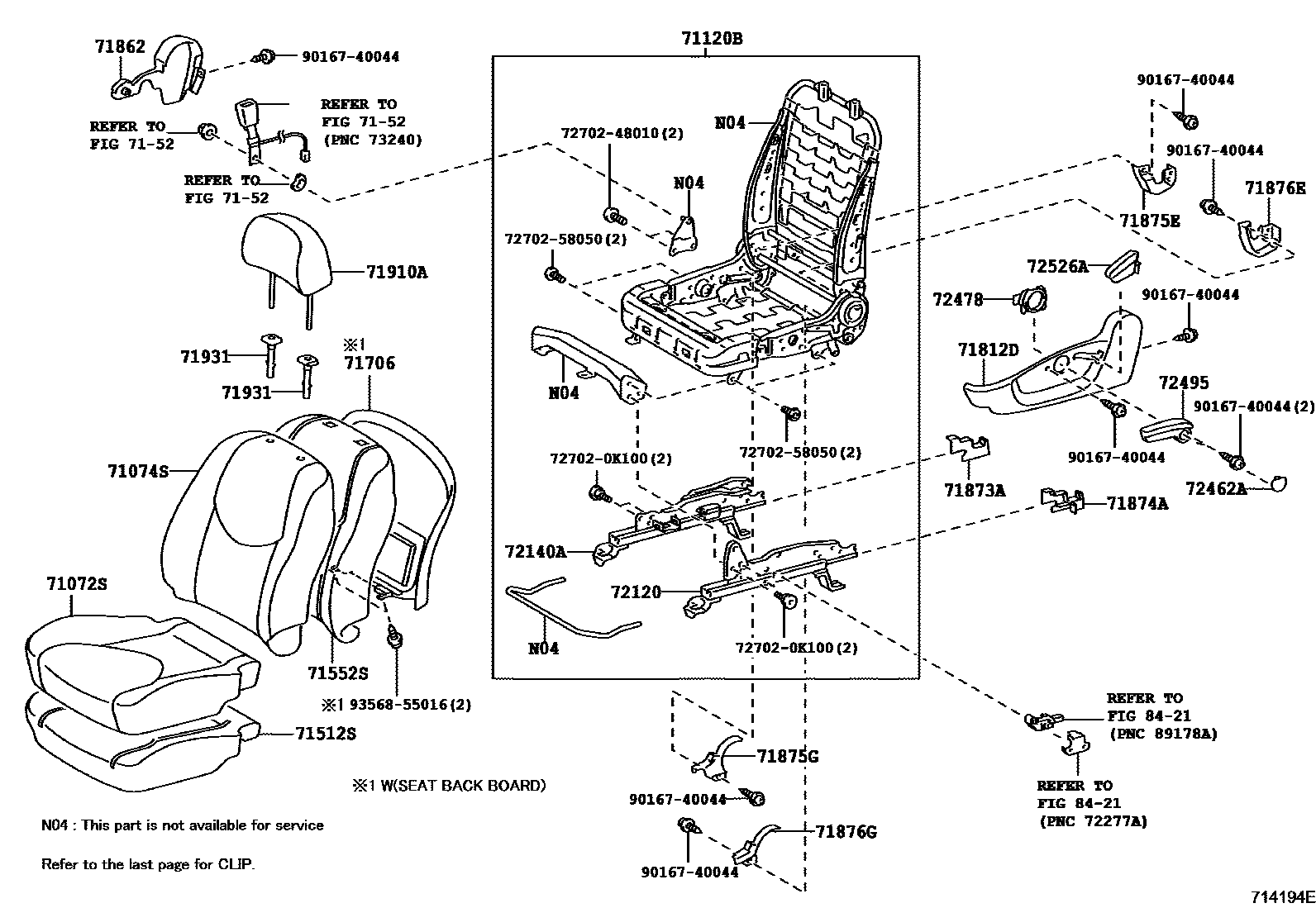

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-42180-B2i200511-200808
DK.GRAY,TRIM1#
sub71072-42181
main71072-42190-B1i200511-200808
GRAY,TRIM1#
sub71072-42191
main71072-42190-E0i200511-200808
FAWN,TRIM4#
sub71072-42191
main71072-42210-B3i200511-201002
DK.GRAY,TRIM1#
sub71072-42213
sub71072-42610
main71072-42210-E0i200511-200812
FAWN,TRIM4#
sub71072-42213
sub71072-42610
main71072-42210-E1i200812-201002
SAND BEIGE,TRIM4#
sub71072-42213
sub71072-42610
main71072-42213-B5i201002-201212
DK.GRAY,TRIM1#
main71072-42213-E3i201002-201212
SAND BEIGE,TRIM4#
main71072-42240-B1i200511-201002
GRAY,TRIM1#
sub71072-42243
sub71072-42640
main71072-42240-B3i200511-201002
DK.GRAY,TRIM1#
sub71072-42243
sub71072-42640
main71072-42240-E0i200511-200812
FAWN,TRIM4#
sub71072-42243
sub71072-42640
main71072-42240-E1i200808-201002
SAND BEIGE,TRIM4#
sub71072-42243
sub71072-42640
main71072-42243-B6i201002-201212
DK.GRAY,TRIM13
sub71072-42244
main71072-42243-B6i201002-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71072-42244
main71072-42243-B6i201002-201212
DK.GRAY,TRIM1#
sub71072-42244
main71072-42243-B7i201002-201212
GRAY,TRIM10
sub71072-42244
main71072-42243-B7i201002-201212
GRAY,TRIM1#
sub71072-42244
main71072-42243-E3i201002-201212
SAND BEIGE,TRIM4#
sub71072-42244
main71072-42243-E3i201002-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71072-42244
main71072-42250-B2i200511-201002
DK.GRAY,TRIM1#
sub71072-42650
main71072-42260-B3i200511-201002
DK.GRAY,TRIM1#
sub71072-42660
main71072-42300-B3i200701-200803
DK.GRAY,TRIM1#
sub71072-42301
main71072-42300-E1i200701-200803
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE,FAWN,TRIM4#
sub71072-42301
main71072-42300-E1i200701-200803
FAWN,TRIM4#
sub71072-42301
main71072-42300-E1i200701-200803
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71072-42301
main71072-42301-B3i200812-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B3i200804-201202
DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B3i200804-200812
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B3i200812-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B5i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B5i201202-201212
DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B5i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM13
sub71072-42301
main71072-42301-B5i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM13
sub71072-42301
main71072-42301-B5i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B5i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-B5i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71072-42301
main71072-42301-E1i200804-200812
FAWN,TRIM4#
sub71072-42301
main71072-42301-E1i200804-200812
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),FAWN,TRIM4#
sub71072-42301
main71072-42301-E2i200812-201202
SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E2i200812-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E2i200812-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42301-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71072-42301
main71072-42320-B0i200511-200812
DK.GRAY,TRIM1#
sub71072-42321
main71072-42330-B0i200511-200812
DK.GRAY,TRIM1#
sub71072-42331
main71072-42370-B1i200808-201009
DK.GRAY,TRIM1#
sub71072-42371
main71072-42371-B1i201010-201212
DK.GRAY,TRIM1#
main71072-42380-B0i200808-201009
GRAY,TRIM1#
sub71072-42381
main71072-42380-B0i200908-201009
GRAY,TRIM10
sub71072-42381
main71072-42380-B1i200908-201009
DK.GRAY,TRIM13
sub71072-42381
main71072-42380-E0i200808-201009
SAND BEIGE,TRIM4#
sub71072-42381
main71072-42381-B0i201010-201212
GRAY,TRIM10
main71072-42381-B0i201010-201212
GRAY,TRIM1#
main71072-42381-B1i201010-201212
DK.GRAY,TRIM13
main71072-42381-E0i201010-201212
SAND BEIGE,TRIM4#
main71072-42400-B1i200812-201009
DK.GRAY,TRIM1#
sub71072-42401
main71072-42401-B1i201010-201212
DK.GRAY,TRIM1#
main71072-42410-B1i200812-201009
DK.GRAY,TRIM1#
sub71072-42411
main71072-42411-B1i201010-201212
DK.GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-42100-B0i200511-200808
DK.GRAY,TRIM1#
sub71073-42101
main71073-42100-B1i200511-200808
GRAY,TRIM1#
sub71073-42101
main71073-42100-E0i200511-200808
FAWN,TRIM4#
sub71073-42101
main71073-42370-B0i200511-200808
DK.GRAY,TRIM1#
sub71073-42374
sub71073-42A80
main71073-42370-B1i200511-201002
GRAY,TRIM1#
sub71073-42374
sub71073-42A80
main71073-42370-E0i200511-200808
FAWN,TRIM4#
sub71073-42374
sub71073-42A80
main71073-42370-E1i200808-201002
SAND BEIGE,TRIM4#
sub71073-42374
sub71073-42A80
main71073-42374-B5i201002-201212
DK.GRAY,TRIM13
sub71073-42375
main71073-42374-B5i201002-201212
WITHOUT(CURTAIN & SIDE AIR BAG)&FRONT HEADREST-WITHOUT(ACTIV HEADREST),DK.GRAY,TRIM1#
sub71073-42375
main71073-42374-B6i201002-201212
GRAY,TRIM10
sub71073-42375
main71073-42374-B6i201002-201212
GRAY,TRIM1#
sub71073-42375
main71073-42374-E3i201002-201212
WITHOUT(CURTAIN & SIDE AIR BAG)&FRONT HEADREST-WITHOUT(ACTIV HEADREST),SAND BEIGE,TRIM4#
sub71073-42375
main71073-42374-E3i201002-201212
SAND BEIGE,TRIM4#
sub71073-42375
main71073-42530-B2i200808-201002
DK.GRAY,TRIM1#
sub71073-42533
main71073-42660-B0i200808-201002
GRAY,TRIM1#
sub71073-42663
main71073-42660-E0i200808-201002
SAND BEIGE,TRIM4#
sub71073-42663
main71074-42090-B0i200511-200808
DK.GRAY,TRIM1#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42090-B0i200511-200808
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42090-B3i200808-200812
DK.GRAY,TRIM1#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42090-E0i200511-200808
FAWN,TRIM4#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42090-E0i200511-200808
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42090-E2i200808-200812
FAWN,TRIM4#
sub71074-42090
sub71074-42095
sub71074-42550
main71074-42110-B0i200511-200808
DK.GRAY,TRIM1#
sub71074-42110
sub71074-42111
main71074-42110-B3i200808-200812
SEAT COVER MATERIAL-FABRIC C(CLEF),DK.GRAY,TRIM1#
sub71074-42110
sub71074-42111
main71074-42110-B3i200808-200812
DK.GRAY,TRIM1#
sub71074-42110
sub71074-42111
main71074-42130-B2i200701-200808
DK.GRAY,TRIM1#
sub71074-42130
sub71074-42132
main71074-42130-B4i200808-200812
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42130
sub71074-42132
main71074-42130-B4i200808-200812
DK.GRAY,TRIM1#
sub71074-42130
sub71074-42132
main71074-42130-B4i200808-200812
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42130
sub71074-42132
main71074-42130-E1i200701-200808
FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42130-E1i200701-200808
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42130-E1i200701-200808
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE,FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42130-E3i200808-200812
FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42130-E3i200808-200812
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42130-E3i200808-200812
SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
sub71074-42130
sub71074-42132
main71074-42150-B0i200511-200804
DK.GRAY,TRIM1#
sub71074-42150
sub71074-42151
main71074-42150-B2i200804-200808
DK.GRAY,TRIM1#
sub71074-42150
sub71074-42151
main71074-42150-B4i200808-200812
DK.GRAY,TRIM1#
sub71074-42150
sub71074-42151
main71074-42170-B0i201002-201009
DK.GRAY,TRIM13
sub71074-42171
main71074-42170-B1i201002-201009
GRAY,TRIM10
sub71074-42171
main71074-42170-B1i201002-201009
GRAY,TRIM1#
sub71074-42171
main71074-42170-E0i201002-201009
SAND BEIGE,TRIM4#
sub71074-42171
main71074-42171-B0i201010-201202
DK.GRAY,TRIM13
sub71074-42171
main71074-42171-B1i201010-201202
GRAY,TRIM1#
sub71074-42171
main71074-42171-B1i201010-201202
GRAY,TRIM10
sub71074-42171
main71074-42171-B2i201202-201212
DK.GRAY,TRIM13
sub71074-42171
main71074-42171-B3i201202-201212
GRAY,TRIM10
sub71074-42171
main71074-42171-B3i201202-201212
GRAY,TRIM1#
sub71074-42171
main71074-42171-E0i201010-201202
SAND BEIGE,TRIM4#
sub71074-42171
main71074-42171-E1i201202-201212
SAND BEIGE,TRIM4#
sub71074-42171
main71074-42192-B2i201008-201009
DK.GRAY,TRIM1#
sub71074-42193
main71074-42193-B2i201010-201202
DK.GRAY,TRIM1#
sub71074-42193
main71074-42193-B2i201010-201202
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1#
sub71074-42193
main71074-42193-B4i201202-201212
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1#
sub71074-42193
main71074-42193-B4i201202-201212
DK.GRAY,TRIM1#
sub71074-42193
main71074-42200i200908-201002
sub71074-42202
main71074-42200-B2i200812-201002
DK.GRAY,TRIM1#
sub71074-42202
main71074-42201-B2i201002-201009
DK.GRAY,TRIM1#
sub71074-42202
main71074-42202i201202-201207
main71074-42202-B2i201010-201202
DK.GRAY,TRIM1#
sub71074-42202
main71074-42202-B3i201202-201212
DK.GRAY,TRIM1#
sub71074-42202
main71074-42220i200908-201002
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT
sub71074-42225
main71074-42220-B0i200808-201002
DK.GRAY,TRIM1#
sub71074-42225
main71074-42220-E0i200812-201002
SAND BEIGE,TRIM4#
sub71074-42225
main71074-42224-B4i201002-201009
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71074-42225
main71074-42224-B4i201002-201009
DK.GRAY,TRIM1#
sub71074-42225
main71074-42224-E2i201002-201009
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71074-42225
main71074-42224-E2i201002-201009
SAND BEIGE,TRIM4#
sub71074-42225
main71074-42225i201202-201207
main71074-42225-B4i201010-201202
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71074-42225
main71074-42225-B4i201010-201202
DK.GRAY,TRIM1#
sub71074-42225
main71074-42225-B6i201202-201212
DK.GRAY,TRIM1#
sub71074-42225
main71074-42225-B6i201202-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71074-42225
main71074-42225-E2i201010-201202
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71074-42225
main71074-42225-E2i201010-201202
SAND BEIGE,TRIM4#
sub71074-42225
main71074-42225-E3i201202-201212
SAND BEIGE,TRIM4#
sub71074-42225
main71074-42225-E3i201202-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71074-42225
main71074-42240-B0i200812-201002
DK.GRAY,TRIM1#
sub71074-42560
main71074-42260-B1i200812-201002
DK.GRAY,TRIM1#
sub71074-42262
main71074-42260-B1i200812-201002
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42260-B1i200812-201002
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42260-E0i200812-201002
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42260-E0i200812-201002
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42260-E0i200812-201002
SAND BEIGE,TRIM4#
sub71074-42262
main71074-42261-B1i201002-201009
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42261-B1i201002-201009
DK.GRAY,TRIM1#
sub71074-42262
main71074-42261-B1i201002-201009
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42261-B1i201002-201009
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42261-B1i201002-201009
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42261-E0i201002-201009
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42261-E0i201002-201009
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42261-E0i201002-201009
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42261-E0i201002-201009
SAND BEIGE,TRIM4#
sub71074-42262
main71074-42261-E0i201002-201009
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-B1i201010-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B1i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B1i201010-201202
DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B1i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B1i201010-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B3i201202-201212
DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B3i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-B3i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71074-42262
main71074-42262-E0i201010-201202
SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E0i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E0i201010-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E0i201010-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E0i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E1i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E1i201202-201212
SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E1i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E1i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42262-E1i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71074-42262
main71074-42360-B0i201002-201009
DK.GRAY,TRIM1#
sub71074-42361
main71074-42361-B0i201010-201202
DK.GRAY,TRIM1#
sub71074-42361
main71074-42361-B4i201202-201212
DK.GRAY,TRIM1#
sub71074-42361
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-42020i200511-200812
main71120-42030i200511-200808
main71120-42060i200511-200812
sub71120-42400
main71120-42070i200511-201002
main71120-42080i201002-201212
sub71120-42450
main71120-42090i200701-200812
main71120-42130i200511-200808
main71120-42170i200511-201010
main71120-42190i201010-201212
sub71120-42420
main71120-42220i200812-201212
main71120-42230i200808-201010
main71120-42250i200808-201212
main71120-42260i201008-201212
main71120-42280i200812-201212
sub71120-42430
main71120-42290i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-42040i200511-201212
main71052-42050i200511-201212
main71052-42070i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71052-42070i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71052-42070i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71052-42070i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71512-42030i200511-201212
main71512-42040i200511-201212
7152
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-42060i200511-201212
main71551-42080i200808-201212
main71551-42080i200511-200812
WITH(FRONT WHEEL SPLASH SHIELD)
main71551-42080i200511-200812
WITHOUT(CURTAIN & SIDE AIR BAG)
main71551-42140i200808-201212
main71552-42030i200511-200812
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71552-42050i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71552-42050i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71552-42060i201008-201212
main71552-42070i200808-201212
main71552-42080i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71771-42010-B2i200511-201202
DK.GRAY,TRIM1#
sub71771-42010
main71771-42010-B2i200808-201202
DK.GRAY,TRIM13
sub71771-42010
main71771-42010-B3i200511-200803
GRAY,TRIM1#
sub71771-42010
main71771-42010-B4i200511-200804
DK.GRAY,TRIM1#
sub71771-42010
main71771-42010-B7i200511-200808
DK.GRAY,TRIM13
sub71771-42010
main71771-42010-B9i200803-200812
CHINA SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71771-42010
main71771-42010-B9i200803-200812
BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71771-42010
main71771-42010-B9i200803-200908
GRAY,TRIM1#
sub71771-42010
main71771-42010-E1i200511-200812
FAWN,TRIM4#
sub71771-42010
main71771-42010-E2i200812-201202
SAND BEIGE,TRIM4#
sub71771-42010
main71771-42010-E4i200808-200908
SAND BEIGE,TRIM4#
sub71771-42010
main71771-42010-E6i200511-200808
FAWN,TRIM4#
sub71771-42010
main71771-42010-E7i200908-201202
SAND BEIGE,TRIM4#
sub71771-42010
main71771-42010-E8i201202-201212
SAND BEIGE,TRIM4#
sub71771-42010
main71771-42010-P2i201003-201202
DK.GRAY,TRIM1#
sub71771-42010
main71771-42010-P3i200908-201202
GRAY,TRIM1#
sub71771-42010
main71771-42010-P4i201202-201212
DK.GRAY,TRIM13
sub71771-42010
main71771-42010-P4i201202-201212
DK.GRAY,TRIM1#
sub71771-42010
main71771-42010-P5i201202-201212
GRAY,TRIM1#
sub71771-42010
main71771-42010-P5i201202-201212
GRAY,TRIM10
sub71771-42010
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-42090-B0i200511-201212
DK.GRAY,TRIM1#
sub71812-42090
main71812-42090-E0i200511-200812
FAWN,TRIM4#
sub71812-42090
main71812-42090-E3i200812-201212
SAND BEIGE,TRIM4#
sub71812-42090
main71812-42100-B0i200511-201212
DK.GRAY,TRIM1#
sub71812-42100
main71812-42100-B1i200511-201212
GRAY,TRIM1#
sub71812-42100
main71812-42100-E0i200511-200812
FAWN,TRIM4#
sub71812-42100
main71812-42100-E2i200808-201212
SAND BEIGE,TRIM4#
sub71812-42100
main71812-42110-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71812-42110
main71812-42110-B0i200701-201212
DK.GRAY,TRIM1#
sub71812-42110
main71812-42110-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71812-42110
main71812-42110-E0i200701-200812
FAWN,TRIM4#
sub71812-42110
main71812-42110-E1i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71812-42110
main71812-42110-E1i200812-201212
SAND BEIGE,TRIM4#
sub71812-42110
main71812-42110-E1i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71812-42110
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-42060-B0i200511-201212
DK.GRAY,TRIM1#
sub71862-42060
main71862-42060-B1i200511-201212
GRAY,TRIM1#
sub71862-42060
main71862-42060-E0i200511-200812
FAWN,TRIM4#
sub71862-42060
main71862-42060-E2i200808-201212
SAND BEIGE,TRIM4#
sub71862-42060
main71862-60100-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71862-60100
main71862-60100-B0i200701-201212
DK.GRAY,TRIM1#
sub71862-60100
main71862-60100-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71862-60100
main71862-60100-E0i200701-200812
FAWN,TRIM4#
sub71862-60100
main71862-60100-E3i200812-201212
SAND BEIGE,TRIM4#
sub71862-60100
main71862-60100-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71862-60100
main71862-60100-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71862-60100
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-42030i200511-201212
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-30070i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71873-30070i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71873-30070i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71873-30070i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71873-42030i200511-201212
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-42020i200511-201212
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-30020i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71874-30020i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71874-30020i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71874-30020i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71874-42020i200511-201212
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58060i200511-201212
main71875-60140i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71875-60140i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71875-60140i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71875-60140i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-42050-B0i200511-201212
DK.GRAY,TRIM1#
sub71875-42050
main71875-42050-B1i200511-201212
GRAY,TRIM1#
sub71875-42050
main71875-42050-E0i200511-200812
FAWN,TRIM4#
sub71875-42050
main71875-42050-E2i200808-201212
SAND BEIGE,TRIM4#
sub71875-42050
main71876-60150-B0i200701-201212
DK.GRAY,TRIM1#
sub71876-60150
main71876-60150-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71876-60150
main71876-60150-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71876-60150
main71876-60150-E0i200701-200812
FAWN,TRIM4#
sub71876-60150
main71876-60150-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71876-60150
main71876-60150-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71876-60150
main71876-60150-E3i200812-201212
SAND BEIGE,TRIM4#
sub71876-60150
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58060i200511-201212
main71876-60140i200701-200812
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE
main71876-60140i200701-200812
CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main71876-60140i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
main71876-60140i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE)
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-42050-B0i200511-201212
DK.GRAY,TRIM1#
sub71876-42050
main71876-42050-B1i200511-201212
GRAY,TRIM1#
sub71876-42050
main71876-42050-E0i200511-200812
FAWN,TRIM4#
sub71876-42050
main71876-42050-E2i200808-201212
SAND BEIGE,TRIM4#
sub71876-42050
main71876-60170-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71876-60170
main71876-60170-B0i200701-201212
DK.GRAY,TRIM1#
sub71876-60170
main71876-60170-B0i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71876-60170
main71876-60170-E0i200701-200812
FAWN,TRIM4#
sub71876-60170
main71876-60170-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71876-60170
main71876-60170-E3i200812-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71876-60170
main71876-60170-E3i200812-201212
SAND BEIGE,TRIM4#
sub71876-60170
71910AHEADREST ASSY, FRONT SEAT
main71910-42110-B0i200511-200812
DK.GRAY,TRIM1#
sub71910-42190
main71910-42110-B1i200511-200808
GRAY,TRIM1#
sub71910-42190
main71910-42110-E0i200511-200808
FAWN,TRIM4#
sub71910-42190
main71910-42120-B0i200511-200812
DK.GRAY,TRIM1#
sub71910-42121
sub71910-42280
main71910-42120-B1i200511-201001
GRAY,TRIM1#
sub71910-42121
sub71910-42280
main71910-42120-E0i200511-200812
FAWN,TRIM4#
sub71910-42121
sub71910-42280
main71910-42120-E1i200808-201001
SAND BEIGE,TRIM4#
sub71910-42121
sub71910-42280
main71910-42121-B5i201002-201212
GRAY,TRIM1#
sub71910-42350
main71910-42121-B5i201002-201212
GRAY,TRIM10
sub71910-42350
main71910-42121-B6i201002-201212
FRONT HEADREST-WITHOUT(ACTIV HEADREST),DK.GRAY,TRIM1#
sub71910-42350
main71910-42121-B6i201002-201212
FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42350
main71910-42121-B6i201002-201212
DK.GRAY,TRIM13
sub71910-42350
main71910-42121-B6i201002-201212
WITHOUT(CURTAIN & SIDE AIR BAG)&FRONT HEADREST-WITHOUT(ACTIV HEADREST),DK.GRAY,TRIM1#
sub71910-42350
main71910-42121-E3i201002-201212
FRONT HEADREST-WITHOUT(ACTIV HEADREST)&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42350
main71910-42121-E3i201002-201212
WITHOUT(CURTAIN & SIDE AIR BAG)&FRONT HEADREST-WITHOUT(ACTIV HEADREST),SAND BEIGE,TRIM4#
sub71910-42350
main71910-42121-E3i201002-201212
FRONT HEADREST-WITHOUT(ACTIV HEADREST),SAND BEIGE,TRIM4#
sub71910-42350
main71910-42121-E3i201002-201212
SAND BEIGE,TRIM4#
sub71910-42350
main71910-42130-B2i200701-200812
DK.GRAY,TRIM1#
sub71910-42131
main71910-42130-E1i200701-200812
FAWN,TRIM4#
sub71910-42131
main71910-42160-B0i200808-200908
DK.GRAY,TRIM1#
sub71910-42161
main71910-42161i201202-201207
main71910-42161-B0i200908-201202
DK.GRAY,TRIM1#
sub71910-42161
main71910-42161-B2i201202-201212
DARK GRAY,TRIM1#
sub71910-42161
main71910-42170-B0i200808-200908
DK.GRAY,TRIM1#
sub71910-42172
main71910-42170-E0i200812-200908
SAND BEIGE,TRIM4#
sub71910-42172
main71910-42171-B0i200908-201002
DK.GRAY,TRIM1#
sub71910-42172
main71910-42171-B0i200908-201001
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71910-42172
main71910-42171-B0i200908-201001
SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71910-42172
main71910-42171-E0i200908-201001
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42171-E0i200908-201001
SAND BEIGE,TRIM4#
sub71910-42172
main71910-42171-E0i200908-201001
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172i201202-201207
main71910-42172-B0i201002-201202
DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-B0i201002-201202
SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-B0i201002-201202
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-B3i201202-201212
DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-B3i201202-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-B3i201202-201212
SEAT COVER MATERIAL-FABRIC,DK.GRAY,TRIM1#
sub71910-42172
main71910-42172-E0i201002-201202
SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172-E0i201002-201202
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172-E0i201002-201202
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172-E2i201202-201212
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172-E2i201202-201212
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITHOUT,SAND BEIGE,TRIM4#
sub71910-42172
main71910-42172-E2i201202-201212
SAND BEIGE,TRIM4#
sub71910-42172
main71910-42180-B0i200812-200908
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42181
main71910-42180-B0i200812-200908
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71910-42181
main71910-42180-B0i200812-200908
DK.GRAY,TRIM1#
sub71910-42181
main71910-42180-E0i200812-200908
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42181
main71910-42180-E0i200812-200908
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71910-42181
main71910-42180-E0i200812-200908
SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-B0i200908-201202
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B0i200908-201202
DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B0i200908-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B0i200908-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
SEAT COVER MATERIAL-LEATHER+ALCANTARA&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
SEAT COVER MATERIAL-LEATHER+ALCANTARA,DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-B2i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
sub71910-42181
main71910-42181-E0i200908-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E0i200908-201202
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E0i200908-201202
SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
SEAT COVER MATERIAL-LEATHER+ALCANTARA,SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
WITH(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42181
main71910-42181-E2i201202-201212
SEAT COVER MATERIAL-LEATHER+ALCANTARA&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),SAND BEIGE,TRIM4#
sub71910-42181
main71910-42190-B1i200808-201212
GRAY,TRIM1#
main71910-42190-E0i200808-201212
SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B4i200511-200711
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B7i200511-200711
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-E0i200511-200711
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-E0i200511-200711
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE& PASSENGER SIDE),FAWN,TRIM4#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-E0i200511-200711
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-52030-B0i200712-201212
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
sub71930-52030
main71930-52030-B0i201002-201212
W(LOCK)&W(BUTTON),DK.GRAY,TRIM13
sub71930-52030
main71930-52030-B1i200712-200812
W(LOCK)&W(BUTTON),CHINA SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71930-52030
main71930-52030-B1i201002-201212
W(LOCK)&W(BUTTON),GRAY,TRIM10
sub71930-52030
main71930-52030-B1i200712-201212
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-52030
main71930-52030-B1i200712-200812
W(LOCK)&W(BUTTON),CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71930-52030
main71930-52030-B1i200712-200812
W(LOCK)&W(BUTTON),BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71930-52030
main71930-52030-B1i200712-200812
W(LOCK)&W(BUTTON),BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71930-52030
main71930-52030-E3i200712-200812
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200808
W(LOCK)&W(BUTTON),BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200812
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200808
W(LOCK)&W(BUTTON),CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200808
W(LOCK)&W(BUTTON),CHINA SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200808
W(LOCK)&W(BUTTON),BEIJING SPEC&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71930-52030
main71930-52030-E3i200712-200812
W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE& PASSENGER SIDE),FAWN,TRIM4#
sub71930-52030
main71930-52030-E4i200808-201212
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
sub71930-52030
main71931-42020-B4i201002-201212
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13
sub71931-42020
main71931-42020-B4i200511-201212
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#
sub71931-42020
main71931-42020-B7i200511-201212
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
sub71931-42020
main71931-42020-B7i201002-201212
W(LOCK)&W/O(BUTTON),GRAY,TRIM10
sub71931-42020
main71931-42020-E0i200511-200812
W(LOCK)&W/O(BUTTON),FAWN,TRIM4#
sub71931-42020
main71931-42020-E0i200511-200812
W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
sub71931-42020
main71931-42020-E0i200511-200812
W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),FAWN,TRIM4#
sub71931-42020
main71931-42020-E3i200808-201212
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
sub71931-42020
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-42010i200812-201212
main72120-42020i200808-201212
main72120-42030i200812-201212
main72120-42040i200511-201212
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-42010i200812-201212
main72140-42020i200808-201212
main72140-42030i200812-201212
main72140-42040i200511-201212
72462COVER, VERTICAL ADJUSTER RH
main72462-42010-B0i200511-201212
DK.GRAY,TRIM1#
sub72462-42010
main72462-42010-E0i200511-200812
FAWN,TRIM4#
sub72462-42010
main72462-42010-E2i200812-201212
SAND BEIGE,TRIM4#
sub72462-42010
72462ACOVER, VERTICAL ADJUSTER LH
main72462-42010-B0i200511-201212
DK.GRAY,TRIM1#
sub72462-42010
main72462-42010-B1i200511-201212
GRAY,TRIM1#
sub72462-42010
main72462-42010-E0i200511-200812
FAWN,TRIM4#
sub72462-42010
main72462-42010-E2i200808-201212
SAND BEIGE,TRIM4#
sub72462-42010
72478BUSH, VERTICAL ADJUSTER
main72478-60010i200511-201212
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-42010-B0i200511-201212
DK.GRAY,TRIM1#
sub72495-42010
main72495-42010-B1i200511-201212
GRAY,TRIM1#
sub72495-42010
main72495-42010-E0i200511-200812
FAWN,TRIM4#
sub72495-42010
main72495-42010-E2i200808-201212
SAND BEIGE,TRIM4#
sub72495-42010
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-42010-B0i200511-201212
DK.GRAY,TRIM1#
sub72526-42010
main72526-42010-E0i200511-200812
FAWN,TRIM4#
sub72526-42010
main72526-42010-E2i200812-201212
SAND BEIGE,TRIM4#
sub72526-42010
main72526-42020-B0i200511-201212
DK.GRAY,TRIM1#
sub72526-42020
main72526-42020-B1i200511-201212
GRAY,TRIM1#
sub72526-42020
main72526-42020-E0i200511-200812
FAWN,TRIM4#
sub72526-42020
main72526-42020-E2i200808-201212
SAND BEIGE,TRIM4#
sub72526-42020
8421
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48010
7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-58050
9016740044
main90167-40044
9356855016
main93568-55016

32 parts on this diagram · 32 diagrams in section
