Toyota RAV4 — SEAT & SEAT TRACK

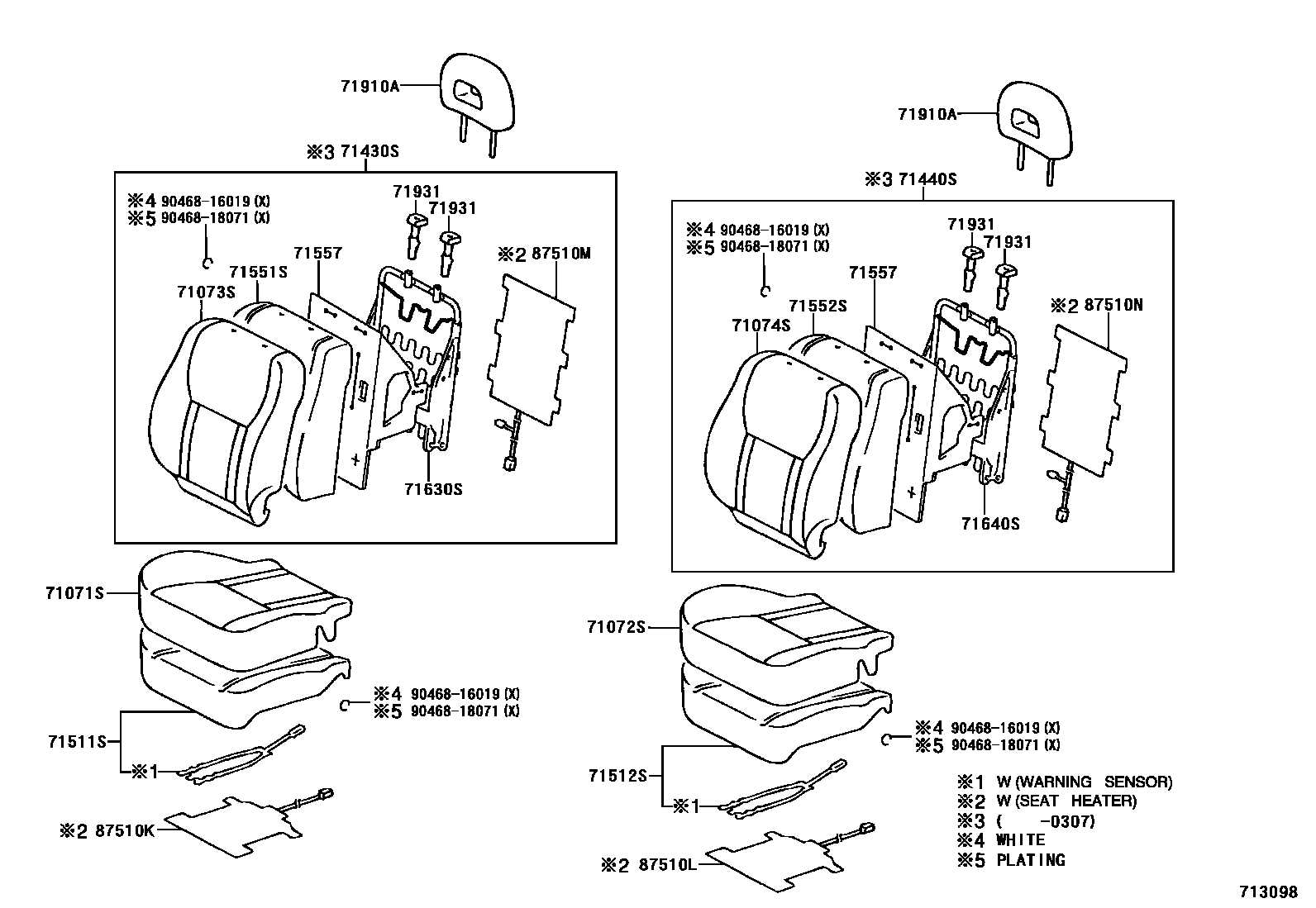

0001 1 0002 1W(SRS SIDE AIR BAG) 0003 1RH 0004 1LH 0005 1 0006 1 0007 1 0008 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-42210-B2iACA21..GCC,GEN;ACA20..ARL,GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

BLUE GRAY,TRIM15

sub71071-42211

main71071-42210-B3iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DARKGRAY,TRIM1#

sub71071-42211

main71071-42210-J2iACA21..GCC,GEN;ACA20..ARL,GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

DARK BLUE,TRIM14

sub71071-42211

main71071-42220-B2iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

W(VERTICAL SEAT AJDUSTER),BLUE GRAY,TRIM15

sub71071-42220

sub71071-42221

main71071-42220-B4iACA2#,CLA2#,ZCA2#..RHD200307-200511

W(VERTICAL SEAT AJDUSTER),DARKGRAY,TRIM1#

sub71071-42220

sub71071-42221

main71071-42220-J2iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

W(VERTICAL SEAT AJDUSTER),DARK BLUE,TRIM14

sub71071-42220

sub71071-42221

main71071-42230-B2iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),BLUE GRAY,TRIM15

main71071-42230-J2iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),DARK BLUE,TRIM14

main71071-42240-B2iACA21..ARL200008-200307

BLUE GRAY,TRIM1#

main71071-42250-B2iACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

W(LEATHER SEAT),DARK GRAY,TRIM1#

main71071-42250-B3iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

main71071-42260-B2iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

DARK GRAY,TRIM1#

main71071-42260-B3iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

main71071-42270-B2iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(LEATHER SEAT) & W(SEAT HEATER),DARK GRAY,TRIM1#

main71071-42280-B1iACA21..ARL200005-200307

W(VERTICAL SEAT AJDUSTER),BLUE GRAY,TRIM1#

sub71071-42281

main71071-42330-B0iACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)200307-200511

W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

main71071-42340-B0iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

main71071-42350-B0iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

W(SEAT HEATER),DARKGRAY,TRIM1#

main71071-42360-B0iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

LEATHER SEAT & W(SEAT HEATER OR SRS SIDE AIR BAG),DARKGRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-42030-B2iACA2#..LHD..(GCC,GEN);ACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

BLUE GRAY,TRIM15

sub71072-42031

main71072-42030-B4iACA2#,CLA2#,ZCA2#..RHD200307-200511

DARKGRAY,TRIM1#

sub71072-42031

main71072-42030-J2iACA2#..LHD..(GCC,GEN);ACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

DARK BLUE,TRIM14

sub71072-42031

main71072-42040-B2iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

W(VERTICAL SEAT AJDUSTER),BLUE GRAY,TRIM15

sub71072-42041

main71072-42040-B3iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DARKGRAY,TRIM1#

sub71072-42041

main71072-42040-J2iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

W(VERTICAL SEAT AJDUSTER),DARK BLUE,TRIM14

sub71072-42041

main71072-42060-B2iACA2#,ZCA2#..LHD..EUR200005-200307

W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE B-*104,BLUE GRAY,TRIM15

main71072-42060-B2iCLA2#..LHD200105-200307

W(SEAT HEATER & VERTICAL SEAT AJDUSTER),BLUE GRAY,TRIM15

main71072-42060-J2iACA2#,ZCA2#..LHD..EUR200005-200307

W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE B-*104,DARK BLUE,TRIM14

main71072-42060-J2iCLA2#..LHD200105-200307

W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DARK BLUE,TRIM14

main71072-42080-B2iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

DARK GRAY,TRIM1#

main71072-42080-B3iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

main71072-42090-B2iACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

W(LEATHER SEAT & VERTICAL SEAT AJDUSTER),DARK GRAY,TRIM1#

sub71072-42091

main71072-42090-B3iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

sub71072-42091

main71072-42100-B2iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(LEATHER SEAT & VERTICAL SEAT AJDUSTER & SEAT HEATER),DARK GRAY,TRIM1#

main71072-42110-B1iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

main71072-42140-B0iACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)200307-200511

W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

main71072-42150-B0iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

main71072-42160-B0iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

W(SEAT HEATER & SRS SIDE AIR BAG),DARKGRAY,TRIM1#

sub71072-42161

main71072-42170-B0iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

LEATHER SEAT & W(SEAT HEATER OR SRS SIDE AIR BAG),DARKGRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-42260-B2iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM15

sub71073-42260

main71073-42260-B6iACA2#,CLA2#,ZCA2#200307-200511

DARK GRAY,TRIM1#

sub71073-42260

main71073-42260-J2iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

DARK BLUE,TRIM14

sub71073-42260

main71073-42280-B2iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub71073-42281

main71073-42290-B2iACA2#,CLA2#,ZCA2#..EUR,GCC200005-200307

LEATHER,DARK GRAY,TRIM1#

main71073-42290-B3iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

main71073-42320-B1iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),DK. GRAY,TRIM11

main71073-42340-B0iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-42260-B2iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM15

sub71073-42260

main71073-42260-B6iACA2#,CLA2#,ZCA2#200307-200511

DARK GRAY,TRIM1#

sub71073-42260

main71073-42260-J2iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

DARK BLUE,TRIM14

sub71073-42260

main71073-42280-B2iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub71073-42281

main71073-42290-B2iACA2#,CLA2#,ZCA2#..EUR,GCC200005-200307

LEATHER,DARK GRAY,TRIM1#

main71073-42290-B3iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT,DARKGRAY,TRIM1#

main71074-42030-B1iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),DARKGRAY,TRIM11

main71074-42050-B0iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARKGRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-42250-B4iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

DARK BLUE,TRIM14

main71430-42250-B5iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM15

main71430-42260-B4iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),DARK BLUE,TRIM14

main71430-42260-B5iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),BLUE GRAY,TRIM15

main71430-42270-B2iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

main71430-42280-B2iCLA2#;ACA2#..GCC200008-200307

LEATHER,BLUE GRAY,TRIM1#

main71430-42280-B2iACA2#,ZCA2#..EUR200005-200307

W(LEATHER SEAT),BLUE GRAY,TRIM1#

main71430-42290-B2iCLA2#..LHD200105-200307

LEATHER & W(SEAT HEATER),BLUE GRAY,TRIM1#

main71430-42290-B2iACA2#,ZCA2#..LHD..EUR200005-200307

W(LEATHER SEAT & SEAT HEATER),BLUE GRAY,TRIM1#

main71430-42340-B0iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71430-42350-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

W(SEAT HEATER & SRS AIR BAG),DARK GARY,TRIM1#

main71430-42380-B0iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71430-42450

main71430-42390-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-42250-B4iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

DARK BLUE,TRIM14

main71430-42250-B5iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM15

main71430-42260-B4iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),DARK BLUE,TRIM14

main71430-42260-B5iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(SEAT HEATER),BLUE GRAY,TRIM15

main71430-42270-B2iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

main71430-42280-B2iACA2#,ZCA2#..EUR200005-200307

W(LEATHER SEAT),BLUE GRAY,TRIM1#

main71430-42280-B2iCLA2#;ACA2#..GCC200008-200307

LEATHER,BLUE GRAY,TRIM1#

main71430-42290-B2iCLA2#..LHD200105-200307

LEATHER & W(SEAT HEATER),BLUE GRAY,TRIM1#

main71430-42290-B2iACA2#,ZCA2#..LHD..EUR200005-200307

W(LEATHER SEAT & SEAT HEATER),BLUE GRAY,TRIM1#

main71440-42030-B0iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-42040-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-42070-B0iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-42080-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71052-42010iACA2#..GCC200008-200104

main71052-42020iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

main71511-42030iACA2#..ARL,GCC,GEN200005-200307

sub71511-42050

main71511-42040iZCA26..LHD200104-200304

LEATHER SEAT

sub71511-42060

main71511-42050iACA2#,CLA2#,ZCA2#..ARL,EUR,GEN200304-200511

main71511-42060iACA20,21,CLA2#,ZCA2#..RHD..EUR200304-200511

LEATHER SEAT

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-42010iACA2#..ARL200005-200307

main71052-42020iACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)200307-200511

main71511-42030iZCA26..LHD200104-200304

LEATHER SEAT

sub71511-42050

main71511-42030iACA2#,ZCA2#..EUR,GCC,GEN200005-200104

sub71511-42050

main71511-42040iACA2#..GCC200104-200304

sub71511-42060

main71511-42050iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200304-200511

main71511-42060iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200304-200511

LEATHER SEAT

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-42030iACA2#,CLA2#,ZCA2#200005-200307

sub71551-42050

main71551-42050iACA2#,CLA2#,ZCA2#200307-200511

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-42030iACA2#,CLA2#,ZCA2#200005-200307

sub71551-42050

main71551-42050iACA2#,CLA2#,ZCA2#200307-200511

71557CLOTH, FRONT SEATBACK UNDER

main71557-44030iACA2#,CLA2#,ZCA2#200307-200511

main71578-42010iACA2#,CLA2#,ZCA2#200005-200307

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-42040iACA2#,CLA2#,ZCA2#200005-200511

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-42040iACA2#,CLA2#,ZCA2#200005-200511

71910AHEADREST ASSY, FRONT SEAT

main71910-42050-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

SEAT = TYPE A OR TYPE B-*104,BLUE GRAY,TRIM14,15

main71910-42060-B0iACA21..ARL200005-200307

SEAT = TYPE C-*104,BLUE GRAY,TRIM1#

main71910-42070-B0iACA2#,CLA2#,ZCA2#..EUR,GCC200005-200307

SEAT = TYPE D-*104,BLUE GRAY,TRIM1#

main71910-42080-B0iACA2#,CLA2#,ZCA2#200307-200511

W(WELCAB),BLUE GRAY,TRIM1#

main71910-42080-B0iACA21,CLA21,ZCA26..LHD..MTM..EUR200307-200511

BLUE GRAY,TRIM1#

main71910-42100-B0iACA20,21,CLA2#,ZCA2#..EUR,GCC200307-200511

LEATHER SEAT,DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-B0iACA21..ARL200005-200307

W(LOCK)&W(BUTTON),BLUE GRAY,TRIM1#

sub71930-52030

sub71930-42020

sub71930-44020

main71930-42020-B0iACA21..ARL200005-200307

W(LOCK)&W(BUTTON),BLUE GRAY,TRIM14,15

sub71930-52030

sub71930-42020

sub71930-44020

main71930-42020-B4iACA2#,CLA2#,ZCA2#200307-200511

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

sub71930-52030

sub71930-42020

sub71930-44020

main71931-42020-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

W(LOCK)&W/O(BUTTON),BLUE GRAY,TRIM14,15

sub71931-42020

main71931-42020-B0iACA21..ARL200005-200307

W(LOCK)&W/O(BUTTON),BLUE GRAY,TRIM1#

sub71931-42020

main71931-42020-B4iACA2#,CLA2#,ZCA2#200307-200511

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

sub71931-42020

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-42110iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200511

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-42110iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200511

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-42130iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200511

87510NHEATER ASSY, FRONT SEATBACK, LH

main87510-42130iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200511

9046816019

main90468-16019

9046818071

main90468-18071

21 parts on this diagram · 8 diagrams in section
