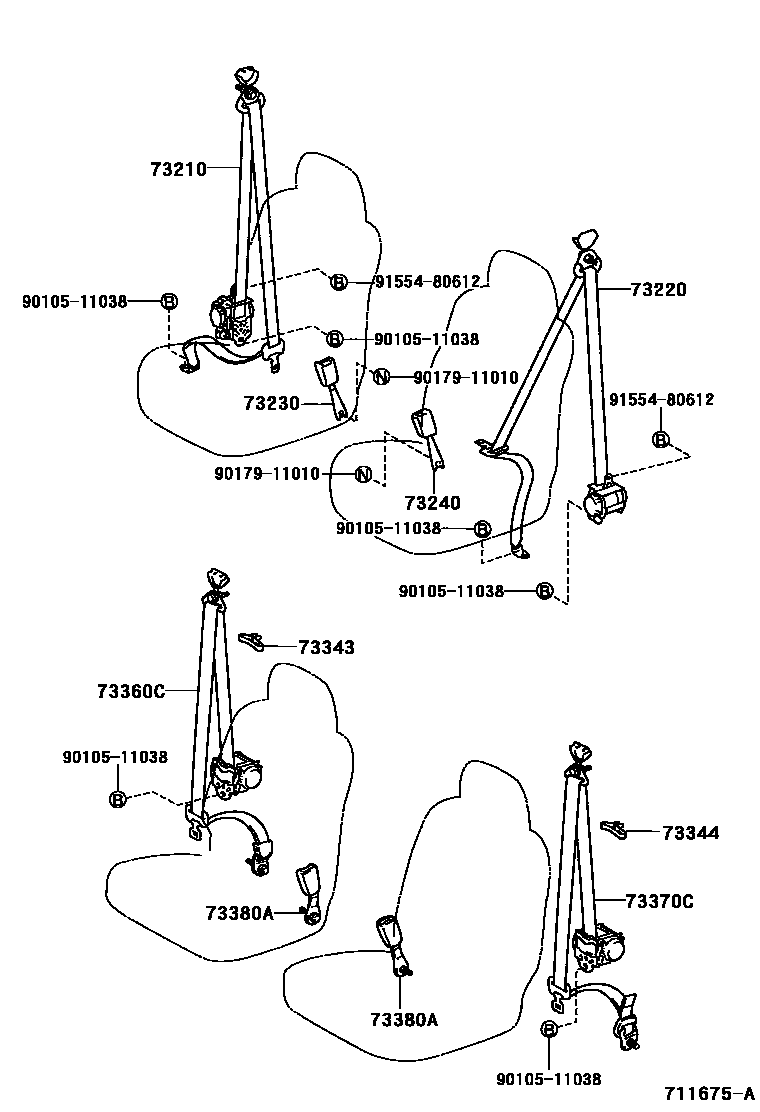

Toyota RAV4 — SEAT BELT

0001 1 0002 1 0003 1 0004 1

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-42220-B0iACA21..ARL200005-200104

BLUISH GRAY,TRIM1#

sub73210-42221

main73210-42220-B0iACA21..ARL200005-200104

BLUISH GRAY,TRIM14,15

sub73210-42221

main73210-42220-B0iACA21..GEN200008-200104

W(*80),BLUISH GRAY,TRIM14,15

sub73210-42221

main73210-42221-B0iACA21..ARL200104-200307

BLUISH GRAY,TRIM1#

sub73210-42221

main73210-42221-B0iACA21..ARL200104-200307

W(*80),BLUISH GRAY,TRIM14,15

sub73210-42221

main73210-42222-C1iACA21,23,CLA21,ZCA26..ARL,EUR200307-200511

BLACK,TRIM1#

main73210-42240-B0iACA21..GEN200008-200307

BLUISH GRAY,TRIM14,15

main73210-42260-B0iACA20..GEN200008-200104

W(*80),BLUISH GRAY,TRIM14,15

sub73210-42261

main73210-42260-B0iACA20,ZCA25..ARL,EUR,GCC200005-200104

BLUISH GRAY,TRIM14,15

sub73210-42261

main73210-42261-B0iACA20,CLA20,ZCA25200104-200307

W(*80),BLUISH GRAY,TRIM14,15

main73210-42262-C1iACA20,22,CLA20,ZCA25..ARL,EUR200307-200511

BLACK,TRIM1#

main73210-42270-B0iACA20..GEN200008-200307

BLUISH GRAY,TRIM14,15

main73210-42281-C1iACA21..RHD..MTM..EUR200307-200511

COLOMBIA SPEC,BLACK,TRIM1#

main73210-42281-C1iACA21..RHD..MTM..EUR200307-200511

HONG KONG OR SINGAPORE OR THAILAND SPEC,BLACK,TRIM1#

main73210-42281-C1iACA21..RHD..MTM..EUR200307-200511

HONG KONG OR TAIWAN SPEC,BLACK,TRIM1#

main73210-42281-C1iACA21..GCC,GEN200307-200511

BLACK,TRIM1#

main73210-42291-C1iACA20..RHD200307-200511

BLACK,TRIM1#

main73210-42291-C1iACA20..GCC200307-200511

HONG KONG SPEC,BLACK,TRIM1#

main73210-42291-C1iACA20..GCC200307-200511

COLOMBIA SPEC,BLACK,TRIM1#

main73210-42380-C1iACA21..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73210-42381

main73210-42381-C1iACA21..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

main73210-42390-C1iACA20..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73210-42391

main73210-42391-C1iACA20..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-42220-B0iACA21,ZCA26..EUR,GCC200005-200104

BLUISH GRAY,TRIM14,15

sub73220-42221

main73220-42220-B0iACA21..ARL200005-200104

BLUISH GRAY,TRIM1#

sub73220-42221

main73220-42220-B0iACA21..GEN200008-200104

W(*80),BLUISH GRAY,TRIM14,15

sub73220-42221

main73220-42221-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200104-200307

W(*80),BLUISH GRAY,TRIM14,15

sub73220-42221

main73220-42221-B0iACA21..ARL200104-200307

BLUISH GRAY,TRIM1#

sub73220-42221

main73220-42222-C1iACA21,23,CLA21,ZCA26..ARL,EUR200307-200511

BLACK,TRIM1#

sub73220-42222

main73220-42240-B0iACA21..GEN200008-200307

BLUISH GRAY,TRIM14,15

main73220-42260-B0iACA20,ZCA25..ARL,EUR,GCC200005-200104

BLUISH GRAY,TRIM14,15

sub73220-42261

main73220-42260-B0iACA20..GEN200008-200104

W(*80),BLUISH GRAY,TRIM14,15

sub73220-42261

main73220-42261-B0iACA20,CLA20,ZCA25200104-200307

W(*80),BLUISH GRAY,TRIM14,15

main73220-42262-C1iACA20,22,CLA20,ZCA25..ARL,EUR200307-200511

BLACK,TRIM1#

sub73220-42262

main73220-42270-B0iACA20..GEN200008-200307

BLUISH GRAY,TRIM14,15

main73220-42281-C1iACA21..RHD..ATM..EUR200307-200511

BLACK,TRIM1#

main73220-42281-C1iACA21..RHD..ATM..EUR200307-200511

HONG KONG OR THAILAND SPEC,BLACK,TRIM1#

main73220-42281-C1iACA21..RHD..ATM..EUR200307-200511

COLOMBIA SPEC,BLACK,TRIM1#

main73220-42281-C1iACA21..RHD..ATM..EUR200307-200511

HONG KONG OR SINGAPORE OR THAILAND SPEC,BLACK,TRIM1#

main73220-42291-C1iACA20..GCC200307-200511

HONG KONG SPEC,BLACK,TRIM1#

main73220-42291-C1iACA20..GCC200307-200511

BLACK,TRIM1#

main73220-42291-C1iACA20..GCC200307-200511

COLOMBIA SPEC,BLACK,TRIM1#

main73220-42360-C1iACA21..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73220-42361

main73220-42361-C1iACA21..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

main73220-42370-C1iACA20..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73220-42371

main73220-42371-C1iACA20..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-32280-B1iACA2#,CLA2#,ZCA2#..EUR,GEN200005-200307

BLUE GRAY,TRIM14,15

sub73230-32280

main73230-42070-B0iACA21..GCC;ACA20..ARL,GCC200005-200307

BLUE GRAY,TRIM1#

sub73230-42070

main73230-42070-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub73230-42070

main73230-42071-B1iACA21..RHD..ATM..EUR200307-200511

DK.GRAY,TRIM1#

main73230-42071-B1iACA21..RHD..ATM..EUR200307-200511

HONG KONG SPEC,DK.GRAY,TRIM1#

main73230-42071-B1iACA21..RHD..ATM..EUR200307-200511

HONG KONG OR THAILAND SPEC,DK.GRAY,TRIM1#

main73230-42071-B1iACA22,23200307-200511

HONG KONG OR SINGAPORE OR THAILAND SPEC,DK.GRAY,TRIM1#

main73230-42081-B1iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307-200511

DK.GRAY,TRIM1#

sub73230-42081

main73230-42150-B0iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

DK.GRAY,TRIM1#

main73230-42160-B0iACA21..GEN200307-200511

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-32280-B1iACA2#,CLA2#,ZCA2#..EUR,GEN200005-200307

BLUE GRAY,TRIM14,15

sub73230-32280

main73230-42071-B1iACA20,21..LHD..EUR200307-200511

COLOMBIA SPEC,DK.GRAY,TRIM1#

main73230-42071-B1iACA20,21..GCC200307-200511

DK.GRAY,TRIM1#

main73230-42080-B0iACA21..GCC;ACA20..ARL,GCC200005-200307

BLUE GRAY,TRIM14,15

sub73230-42080

main73230-42080-B0iACA21..GCC;ACA20..ARL,GCC200005-200307

BLUE GRAY,TRIM1#

sub73230-42080

main73230-42081-B1iACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)200307-200511

DK.GRAY,TRIM1#

sub73230-42081

main73230-42160-B0iACA21..GEN200307-200511

DK.GRAY,TRIM1#

main73240-42050-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

DK.GRAY,TRIM1#

sub73240-42050

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-42010iACA20,CLA20,ZCA25200005-200511

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73343-42010iACA20,CLA20,ZCA25200005-200511

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-42140-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM1#

sub73360-42140

main73360-42140-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM14,15

sub73360-42140

main73360-42141-C2iACA21,23,CLA21,ZCA26200307-200511

BLACK,TRIM1#

sub73360-42141

main73360-42150-B0iACA21..GEN200008-200307

BLUISH GRAY,TRIM1#,14,15

main73360-42150-B0iACA21..GEN200008-200307

BLUISH GRAY,TRIM14,15

main73360-42160-B0iCLA20;ACA20..ARL200005-200307

BLUISH GRAY,TRIM1#,14,15

main73360-42160-B0iCLA20;ACA20..ARL200005-200307

BLUISH GRAY,TRIM14,15

main73360-42161-C1iACA20,22,CLA20,ZCA25200307-200511

BLACK,TRIM1#

main73360-42170-B0iACA20..GCC200008-200307

BLUISH GRAY,TRIM14,15

main73360-42170-B0iACA20..GCC200008-200307

BLUISH GRAY,TRIM1#,14,15

main73360-42210-C1iACA21..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73360-42211

main73360-42211-C1iACA21..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

main73360-42220-C1iACA20..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73360-42221

main73360-42221-C1iACA20..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73360-42160-B0iCLA20;ACA20..ARL200005-200307

BLUISH GRAY,TRIM1#,14,15

main73360-42160-B0iACA20,ZCA25..EUR200005-200307

BLUISH GRAY,TRIM14,15

main73360-42161-C1iACA20,22,CLA20,ZCA25200307-200511

BLACK,TRIM1#

main73360-42170-B0iACA20..GCC200008-200307

BLUISH GRAY,TRIM14,15

main73360-42170-B0iACA20..GEN200008-200307

BLUISH GRAY,TRIM1#,14,15

main73360-42220-C1iACA20..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73360-42221

main73360-42221-C1iACA20..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

main73370-42100-C1iACA21..LHD..ATM..EUR200308-200408

CHINA SPEC,BLACK,TRIM1#

sub73370-42101

main73370-42101-C1iACA21..LHD..ATM..EUR200409-200511

CHINA SPEC,BLACK,TRIM1#

main73370-42140-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM1#

sub73370-42140

main73370-42140-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM14,15

sub73370-42140

main73370-42141-C2iACA21,23,CLA21,ZCA26200307-200511

BLACK,TRIM1#

sub73370-42141

main73370-42150-B0iACA21..GEN200008-200307

BLUISH GRAY,TRIM1#,14,15

main73370-42150-B0iACA21..GCC200008-200307

BLUISH GRAY,TRIM14,15

73380ABELT ASSY, REAR SEAT, INNER

main73380-42050-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

BLUISH GRAY,TRIM1#

sub73380-42050

main73380-42050-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

BLUISH GRAY,TRIM14,15

sub73380-42050

main73380-42051-C1iACA21,23,CLA21,ZCA26200307-200511

BLACK,TRIM1#

sub73380-42051

main73380-42060-B0iACA20,CLA20,ZCA25200005-200307

BLUE GRAY,TRIM14,15

main73380-42061-B1iACA20,22,CLA20,ZCA25200307-200511

DK.GRAY,TRIM1#

9010511038

main90105-11038

9017911010

main90179-11010

9155480612

main91554-80612

12 parts on this diagram · 4 diagrams in section
