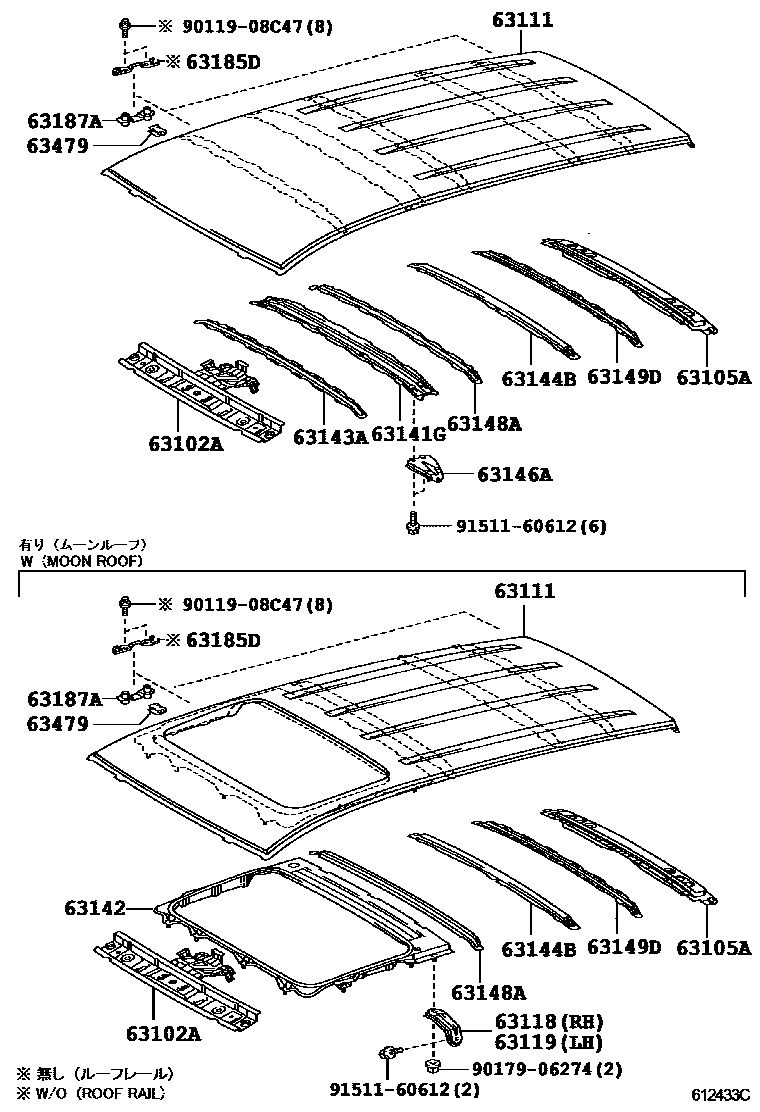

Toyota RAV4 — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42901iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main63102-42902iACA33,38..G..ARL200808-201212

MOON ROOF-WITH

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42030iACA3#,ALA30200511-200608

main63105-42031iACA33..G..GCC;ACA30,31,ALA30200608-200812

63111PANEL, ROOF

main63111-42160iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main63111-42180supersedes 63111-42160iACA33,38..LHD..G200808-201212

MOON ROOF-WITH

main63111-42190iACA30,31,ALA30200511-200812

main63111-42200iACA30,31,ALA30..G200511-200812

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-42060iGSA33..G200808-201212

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-42060iACA33,38..G..ARL200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42080iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42901iACA33,38..G..ARL200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

63143AREINFORCEMENT, ROOF PANEL

main63143-42050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-42010×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main63148-42040iACA33,38..G..ARL200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42060iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63185DBRACKET, ROOF RACK, FRONT

main63185-42020×4iACA33,38,GSA33..X200511-200808

63187ABRACKET, ROOF RACK, REAR

main63187-42010×4iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

63479RETAINER, ROOF INNER RACK

main63479-42010×4iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

9011908C47

main90119-08C47

9017906274

main90179-06274

9151160612

main91511-60612

18 parts on this diagram · 3 diagrams in section
