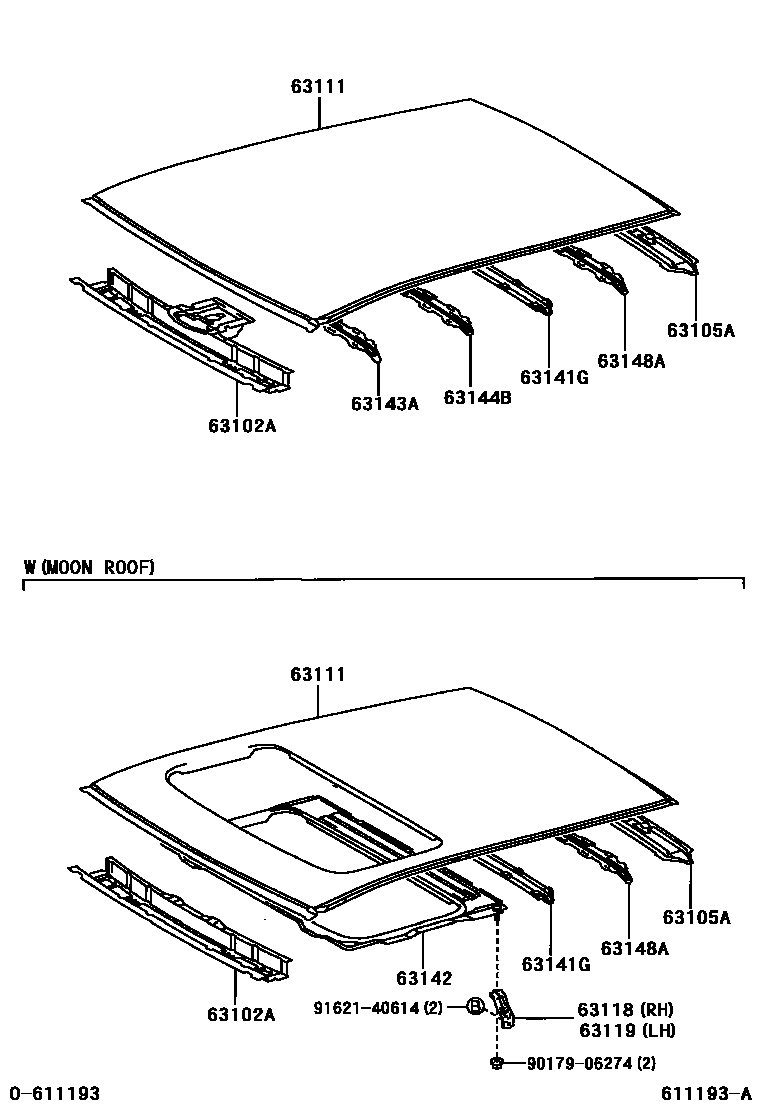

Toyota RAV4 — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42010i200005-200307

main63102-42020i200005-200307

W(MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42010i200005-200307

main63105-42020i200005-200307

W(3 POINT REAR SEAT BELT)

63111PANEL, ROOF

main63111-42070i200005-200307

main63111-42080i200005-200307

W(MOON ROOF)

main63111-42110i200005-200307

main63111-42120i200005-200307

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-42020i200005-200307

main63118-42030i200005-200307

main63118-42040i200307

main63118-42050i200307

63119SUPPORT, ROOF PANEL, LH

main63118-42020i200005-200307

main63118-42030i200005-200307

main63118-42040i200307

main63118-42050i200307

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42030i200005-200307

main63141-42040i200005-200307

W(MOON ROOF)

main63141-42050i200005-200303

main63141-42051i200303-200307

main63141-42060i200005-200307

W(MOON ROOF)

main63141-42070i200307

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-42010i200005-200307

main63142-42900i200005-200307

63143AREINFORCEMENT, ROOF PANEL

main63143-42040i200005-200307

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42020i200005-200303

main63144-42021i200303-200307

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42020i200005-200307

9017906274

main90179-06274

9162140614

main91621-40614

12 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK PANEL for Toyota RAV4

This section contains 61 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota RAV4. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, SUPPORT, ROOF PANEL, RH, SUPPORT, ROOF PANEL, LH.
