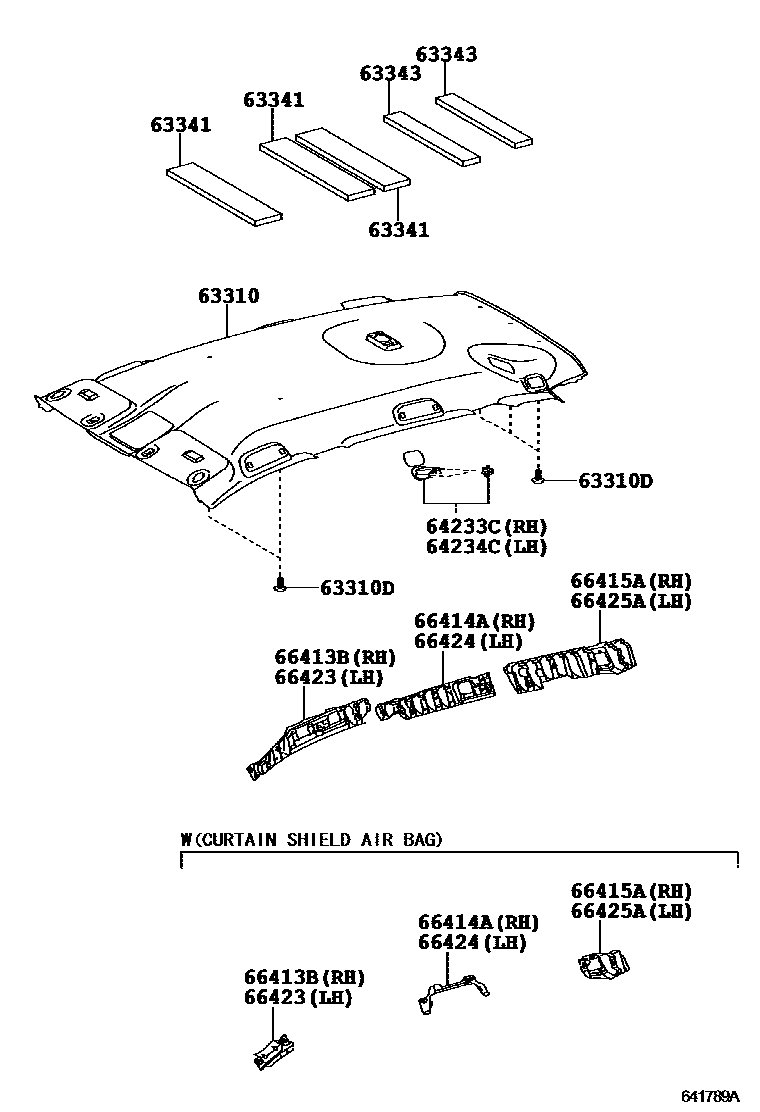

Toyota RAV4 — ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF) 0003 1 0004 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-42280-A1iACA30,ALA30..G200511-200603

IVORY,TRIM4#

sub63310-42281

main63310-42280-B0iACA30,ALA30200511-200603

GRAY,TRIM1#

sub63310-42281

main63310-42281-A1iACA30,31,ALA30..G200604-200812

IVORY,TRIM4#

sub63310-42282

main63310-42281-B0iACA30,31,ALA30200604-201211

GRAY,TRIM1#

sub63310-42282

main63310-42281-E0iACA30,ALA3#,ZSA3#..G200812-201211

SAND BEIGE,TRIM4#

sub63310-42282

main63310-42300-A1iACA33,38200511-200603

IVORY,TRIM4#

sub63310-42301

main63310-42300-B0iACA33,38200511-200603

GRAY,TRIM1#

sub63310-42301

main63310-42301-A1iACA33,38..LHD200604-200808

IVORY,TRIM4#

sub63310-42340

main63310-42301-B0iACA33,38;GSA33..X200604-201212

GRAY,TRIM1#

sub63310-42340

main63310-42301-E0iACA33,38..LHD200808-201212

SAND BEIGE,TRIM4#

sub63310-42340

main63310-42321-B0iACA33,38..G..ARL200808-201212

MOON ROOF-WITH,GRAY,TRIM1#

sub63310-42350

main63310-42321-B0iACA33,38..G..ARL200808-201212

MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

sub63310-42350

main63310-42321-B0iACA33,38..G..ARL200808-201212

MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#

sub63310-42350

main63310-42321-B0iACA33,38..G..ARL200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

sub63310-42350

main63310-42321-B0iGSA33..G200808-201212

GRAY,TRIM1#

sub63310-42350

63310DCLIP, ROOF HEADLINING

main90467-05164-A0iACA33,38..G200511-200808

MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#

sub90467-05164

main90467-05164-A0iACA33,38..G200511-200812

IVORY,TRIM4#

sub90467-05164

main90467-05164-A0iACA33,38200511-200812

MOON ROOF-WITH,IVORY,TRIM4#

sub90467-05164

main90467-05164-B6iACA33,38..LHD..G200808-201212

MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#

sub90467-05164

main90467-05164-B6iACA33,38..LHD..G200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

sub90467-05164

main90467-05164-B6iACA33,38..LHD..G200511-201212

GRAY,TRIM1#

sub90467-05164

main90467-05164-B6iACA33,38..G..GCC200511-201212

MOON ROOF-WITH,GRAY,TRIM1#

sub90467-05164

main90467-05164-B6iACA33,38..G..GCC200808-201212

MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

sub90467-05164

main90467-05164-B6iACA33,38,GSA33..G200511-200812

MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

sub90467-05164

main90467-05164-E4iACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

sub90467-05164

main90467-05164-E4iACA33,38..G..GEN200808-201212

MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER,SAND BEIGE,TRIM4#

sub90467-05164

main90467-05164-E4iACA33,38..G..GEN200808-201212

MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#

sub90467-05164

main90467-05164-E4iACA33,38..LHD200808-201212

MOON ROOF-WITH,SAND BEIGE,TRIM4#

sub90467-05164

63341PAD, ROOF SILENCER, NO.1

main63341-42020iACA33..G..GCC200511-200810

MOON ROOF-WITH

main63341-42020iACA33..G..GCC200808-200809

MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER

main63341-42020iACA33..G..GCC200808-200809

MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main63341-42020iACA33..G..GCC200808-200809

SEAT COVER MATERIAL-NATURAL LEATHER

main63341-42020iACA33,38,GSA33..G200511-200810

MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main63341-68030iACA33,38..LHD..G200810-201212

MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER

main63341-68030iACA33..G..GCC200810-201212

MOON ROOF-WITH

main63341-68030iACA33..G..GCC200811-200812

MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main63341-68030iGSA33..G200810-201212

MOON ROOF-WITH&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main63341-68030iGSA33..G200810-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main63341-68030iACA30,ALA3#,ZSA3#200812-201212

63343PAD, ROOF SILENCER, NO.3

main63343-42010iACA30,ALA3#,ZSA3#200511-201212

64233CHOOK, ROOM PARTITION NET, REAR RH

main64233-42030-A0iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main64233-42030-B0iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

GRAY,TRIM1#

main64233-42030-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

64234CHOOK, ROOM PARTITION NET, REAR LH

main64234-42030-A0iACA33,38;ACA30,31,ALA30..G200511-200812

IVORY,TRIM4#

main64234-42030-B0iACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

GRAY,TRIM1#

main64234-42030-E0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G200808-201212

SAND BEIGE,TRIM4#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-42120iACA30,ALA30..G200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main66413-42120iACA33,38..X;ACA33,38..G..(GCC,GEN)200511-201212

main66413-42120iACA33..G..GCC200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main66413-42130iACA33,38..G..GCC200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66413-42130iACA30,31,ALA30200511-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main66413-42130iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66413-42130iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66413-42130iGSA33..X201008-201212

66414ASPACER, SIDE RAIL, REAR RH

main66414-42120iACA33,38..X;ACA33,38..G..(GCC,GEN)200511-201212

main66414-42130iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66414-42130iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66414-42130iACA33,38..G..GCC200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66414-42130iGSA33..X201008-201212

main66414-42130iACA30,31,ALA30200511-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-42060iACA30,31,ALA30200511-201212

main66415-42070iACA33,38200511-200707

sub66415-42090

main66415-42090iACA33,38..X;ACA33,38..G..(GCC,GEN)200708-201212

main66415-42100iACA33,38..X..ARL200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66415-42100iACA33,38,GSA33..G..(ARL,EUR)200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66415-42100iACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66415-42100iGSA33..X201008-201212

66423SPACER, SIDE RAIL, FRONT LH

main66423-42120iACA33..G..GCC200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main66423-42120iACA30,ALA30..X200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main66423-42120iGSA33..X200511-201212

main66423-42130iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66423-42130iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66423-42130iACA33,38..X..ARL200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66423-42130iGSA33..X201008-201212

main66423-42130iACA30,31,ALA30200511-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

66424SPACER, SIDE RAIL, REAR LH

main66424-42100iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

main66424-42110iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66424-42110iACA30,31,ALA30200511-200812

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main66424-42110iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66424-42110iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR)200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66424-42110iGSA33..X201008-201212

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-42040iACA30,31,ALA30200511-201212

main66425-42050iACA33,38200511-200707

sub66425-42070

main66425-42070iACA33..G..GCC200708-201212

main66425-42080iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SEAT COVER MATERIAL-NATURAL LEATHER

main66425-42080iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)

main66425-42080iACA33,38..LHD..X;ACA33,38..G..GEN200808-201212

SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)

main66425-42080iGSA33..X201008-201212

12 parts on this diagram · 4 diagrams in section
