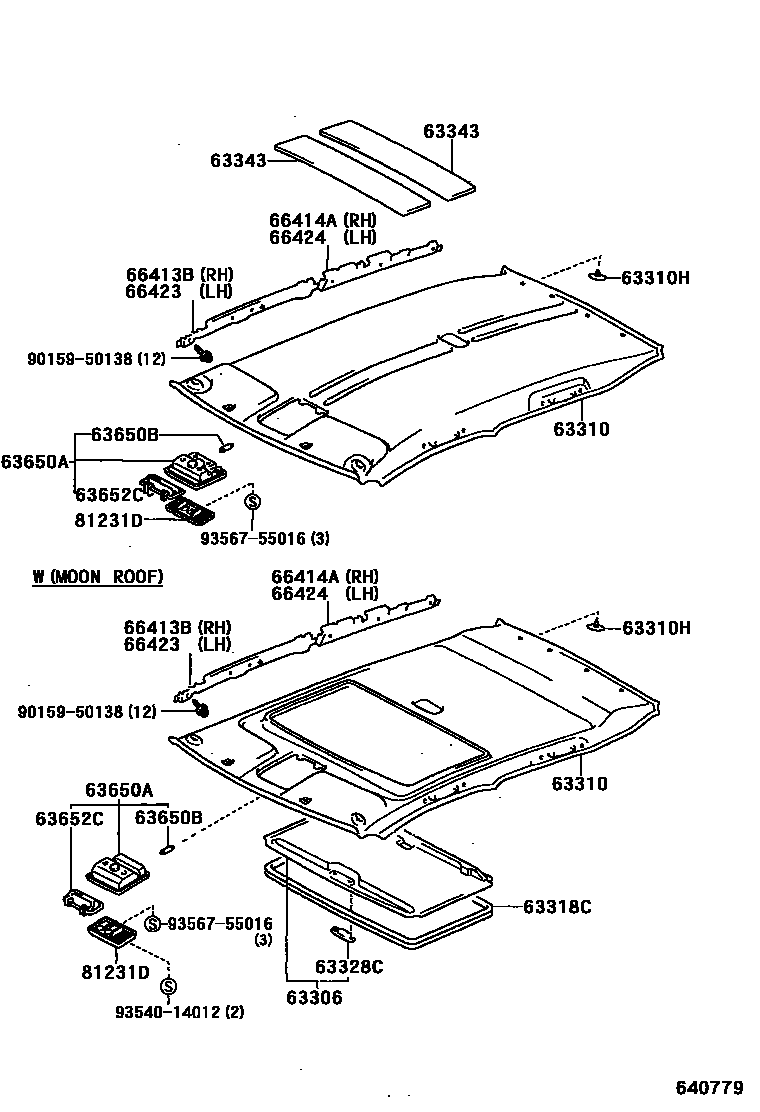

Toyota RAV4 — ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-42030-B0iACA2#,CLA2#,ZCA2#200307-200511

GRAY,TRIM1#

main63306-44020-B4iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

sub63306-44020

main63306-44020-B4iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

LT. BLUISH GRAY,TRIM14,15

sub63306-44020

63310HEADLINING ASSY, ROOF

main63310-42070-B0iACA21..ATM..GCC;ACA21,ZCA26..LHD..MTM..(EUR,GCC)200008-200104

LT. BLUISH GRAY,TRIM1#

sub63310-42130

main63310-42070-B0iACA21..LHD..MTM200005-200103

LT. BLUISH GRAY,TRIM14,15

sub63310-42130

main63310-42080-B0iACA21,ZCA26..EUR200005-200104

W(ROOM PARTITION NET & 3 POINT REAR SEAT BELT),LT. BLUISH GRAY,TRIM1#

sub63310-42140

main63310-42080-B0iACA21..ARL200005-200104

LT. BLUISH GRAY,TRIM1#

sub63310-42140

main63310-42090-B0iACA21..ATM..GCC;ACA21,ZCA26..LHD..MTM..(EUR,GCC)200005-200103

W(MOON ROOF),LT. BLUISH GRAY,TRIM14,15

sub63310-42150

main63310-42090-B0iACA21..ATM..GCC;ACA21,ZCA26..LHD..MTM..(EUR,GCC)200008-200104

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

sub63310-42150

main63310-42100-B0iACA21..ARL200005-200104

W(MOON ROOF & ROOM PARTITION NET & 3 POINT REAR SEAT BELT),LT. BLUISH GRAY,TRIM1#

sub63310-42160

main63310-42100-B0iACA21,ZCA26..EUR200005-200104

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

sub63310-42160

main63310-42110-B0iACA20,ZCA25200005-200104

LT. BLUISH GRAY,TRIM1#

sub63310-42170

main63310-42120-B0iACA20,ZCA25200005-200104

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

sub63310-42180

main63310-42130-B0iACA21..GCC,GEN;ACA21,CLA21,ZCA26..LHD..EUR200104-200307

LT. BLUISH GRAY,TRIM14,15

main63310-42140-B0iACA21..ARL200104-200307

W(ROOM PARTITION NET & 3 POINT REAR SEAT BELT),LT. BLUISH GRAY,TRIM14,15

main63310-42140-B0iACA21..ARL200104-200307

LT. BLUISH GRAY,TRIM1#

main63310-42150-B0iACA21..GCC,GEN;ACA21,CLA21,ZCA26..LHD..EUR200104-200307

W(MOON ROOF),LT. BLUISH GRAY,TRIM14,15

main63310-42160-B0iACA21..ARL200104-200307

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

main63310-42160-B0iACA21..ARL200104-200307

W(MOON ROOF & ROOM PARTITION NET & 3 POINT REAR SEAT BELT),LT. BLUISH GRAY,TRIM14,15

main63310-42170-B0iACA20,ZCA25200104-200307

LT. BLUISH GRAY,TRIM1#

main63310-42170-B0iCLA20200105-200307

LT. BLUISH GRAY,TRIM14,15

main63310-42180-B0iACA20,CLA20,ZCA25200104-200307

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

main63310-42200-B0iACA21..GCC,GEN;ACA21,CLA21,ZCA26..LHD..EUR200307-200308

GRAY,TRIM1#

sub63310-42201

main63310-42201-B0iACA21..GCC,GEN;ACA21,CLA21,ZCA26..LHD..EUR200308-200511

GRAY,TRIM1#

main63310-42210-B0iACA21,23,CLA21,ZCA26..ARL,EUR200307-200308

GRAY,TRIM1#

sub63310-42211

main63310-42211-B0iACA21,23,CLA21,ZCA26..ARL,EUR200308-200511

W(FR&RR ROOM PARTITION NET & 3 POINT REAR SEAT BELT),GRAY,TRIM1#

main63310-42220-B0iACA21,23,CLA21,ZCA26..RHD..(ARL,EUR)200307-200308

W(MOON ROOF & 3-POINT REAR SEAT BELT),GRAY,TRIM1#

sub63310-42221

main63310-42220-B0iACA21,23,CLA21,ZCA26..RHD..(ARL,EUR)200307-200308

W(MOON ROOF),GRAY,TRIM1#

sub63310-42221

main63310-42221-B0iACA21..GCC,GEN;ACA21,CLA21,ZCA26..LHD..EUR200308-200511

W(MOON ROOF),GRAY,TRIM1#

main63310-42230-B0iACA21,23,CLA21,ZCA26..ARL,EUR200307-200308

W(MOON ROOF & ROOM PARTITION NET),GRAY,TRIM1#

sub63310-42231

main63310-42231-B0iACA21,23,CLA21,ZCA26..ARL,EUR200308-200511

W(MOON ROOF & ROOM PARTITION NET & 3 POINT REAR SEAT BELT),GRAY,TRIM1#

main63310-42240-B0iACA20,22,CLA20,ZCA25200307-200511

GRAY,TRIM1#

main63310-42250-B0iACA20,22,CLA20,ZCA25200307-200511

W(MOON ROOF),GRAY,TRIM1#

main63310-42261-B0iACA21,23,CLA21,ZCA26..ARL,EUR200310-200511

W(3 POINT REAR SEAT BELT),GRAY,TRIM1#

main63310-42271-B0iACA21,23,CLA21,ZCA26..ARL,EUR200308-200511

W(MOON ROOF & 3-POINT REAR SEAT BELT),GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-06070-B1iACA21..ARL200005-200307

LT.BLUISH GRAY,TRIM1#

sub90467-06070

main90467-06070-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

LT.BLUISH GRAY,TRIM14,15

sub90467-06070

main90467-06070-B9iACA20,22,CLA20,ZCA25200307-200511

NEW GRAY,TRIM1#

sub90467-06070

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-42040-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

L=2384,LT. BLUISH GRAY,TRIM14,15

sub63318-42050

main63318-42040-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

L=2384,LT. BLUISH GRAY,TRIM1#

sub63318-42050

main63318-42050-B0iACA2#,CLA2#,ZCA2#200307-200511

L=2384,GRAY,TRIM1#

63328CKNOB, SUNSHADE TRIM

main63328-12030-B5iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

LT.BLUISH GRAY,TRIM14,15

main63328-12030-B5iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

LT.BLUISH GRAY,TRIM1#

main63328-12030-P1iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

63343PAD, ROOF SILENCER, NO.3

main63341-42010iACA21,CLA21,ZCA26200210-200307

FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC,L=400

main63341-42010iCLA21..LHD200210-200307

W(MOON ROOF),L=400

main63341-42010iCLA21..LHD200210-200307

FINLAND SPEC & W(MOON ROOF) OR NORWAY SPEC & W(MOON ROOF) OR SWEDEN SPEC & W(MOONROOF),L=400

main63341-42010iCLA21..LHD200210-200307

L=400

main63343-32070iACA20,CLA20,ZCA25200210-200307

FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC,L=800

main63343-32070iACA21..LHD..MTM200005-200210

W(MOON ROOF)

main63343-32070iACA20,CLA20,ZCA25200005-200210

main63343-32070iACA21,CLA21,ZCA26200210-200307

W(MOON ROOF),L=800

main63343-32070iACA21,CLA21,ZCA26200210-200307

L=800

main63343-32070iACA21,CLA21,ZCA26200210-200307

FINLAND SPEC & W(MOON ROOF) OR NORWAY SPEC & W(MOON ROOF) OR SWEDEN SPEC & W(MOONROOF),L=800

63650ABOX ASSY, ROOF CONSOLE

main63650-0W011-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

main63650-0W011-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

main63650-0W011-B5iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

main63660-0W011-B3iACA21..ARL200005-200307

W(MOON ROOF),LT. BLUISH GRAY,TRIM14,15

sub63660-0W011

main63660-0W011-B3iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

sub63660-0W011

main63660-0W011-B5iACA2#,CLA2#,ZCA2#200307-200511

W(MOON ROOF),NEW GRAY,TRIM1#

sub63660-0W011

63650BBULB, ROOF CONSOLE BOX

main90084-98049iACA2#,CLA2#,ZCA2#200005-200307

63652CCOVER, ROOF CONSOLE BOX

main63652-AA021-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

main63652-AA021-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

main63652-AA021-B6iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-42010iACA21,CLA21,ZCA26200005-200307

main66413-42020iACA21,CLA21,ZCA26200005-200307

W(MOON ROOF)

main66413-42030iACA20,CLA20,ZCA25200005-200307

main66413-42040iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main66413-42080iACA21,23,CLA21,ZCA26200307

main66413-42090iACA21,23,CLA21,ZCA26200307

W(MOON ROOF)

main66413-42100iACA20,22,CLA20,ZCA25200307

main66413-42110iACA20,22,CLA20,ZCA25200307

W(MOON ROOF)

66414ASPACER, SIDE RAIL, REAR RH

main66414-42010iACA21,CLA21,ZCA26200005-200307

main66414-42020iACA21,CLA21,ZCA26200005-200307

W(MOON ROOF)

main66414-42030iACA20,CLA20,ZCA25200005-200307

main66414-42040iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main66414-42070iACA21,23,CLA21,ZCA26200307

main66414-42080iACA21,23,CLA21,ZCA26200307

W(MOON ROOF)

main66414-42090iACA20,22,CLA20,ZCA25200307

main66414-42100iACA20,22,CLA20,ZCA25200307

W(MOON ROOF)

66423SPACER, SIDE RAIL, FRONT LH

main66423-42010iACA21,CLA21,ZCA26200005-200307

main66423-42020iACA21,CLA21,ZCA26200005-200307

W(MOON ROOF)

main66423-42030iACA20,CLA20,ZCA25200005-200307

main66423-42040iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main66423-42080iACA21,23,CLA21,ZCA26200307

main66423-42090iACA21,23,CLA21,ZCA26200307

W(MOON ROOF)

main66423-42100iACA20,22,CLA20,ZCA25200307

main66423-42110iACA20,22,CLA20,ZCA25200307

W(MOON ROOF)

66424SPACER, SIDE RAIL, REAR LH

main66424-42010iACA21,CLA21,ZCA26200005-200307

main66424-42020iACA21,CLA21,ZCA26200005-200307

W(MOON ROOF)

main66424-42030iACA20,CLA20,ZCA25200005-200307

main66424-42040iACA20,CLA20,ZCA25200005-200307

W(MOON ROOF)

main66424-42050iACA21,23,CLA21,ZCA26200307

main66424-42060iACA21,23,CLA21,ZCA26200307

W(MOON ROOF)

main66424-42070iACA20,22,CLA20,ZCA25200307

main66424-42080iACA20,22,CLA20,ZCA25200307

W(MOON ROOF)

81231DLENS, COURTESY

main81231-0W010iACA2#,CLA2#,ZCA2#200005-200307

main81231-AA010iACA2#,CLA2#,ZCA2#200005-200307

W(MOON ROOF)

9015950138

main90159-50138

9354014012

main93540-14012

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section
