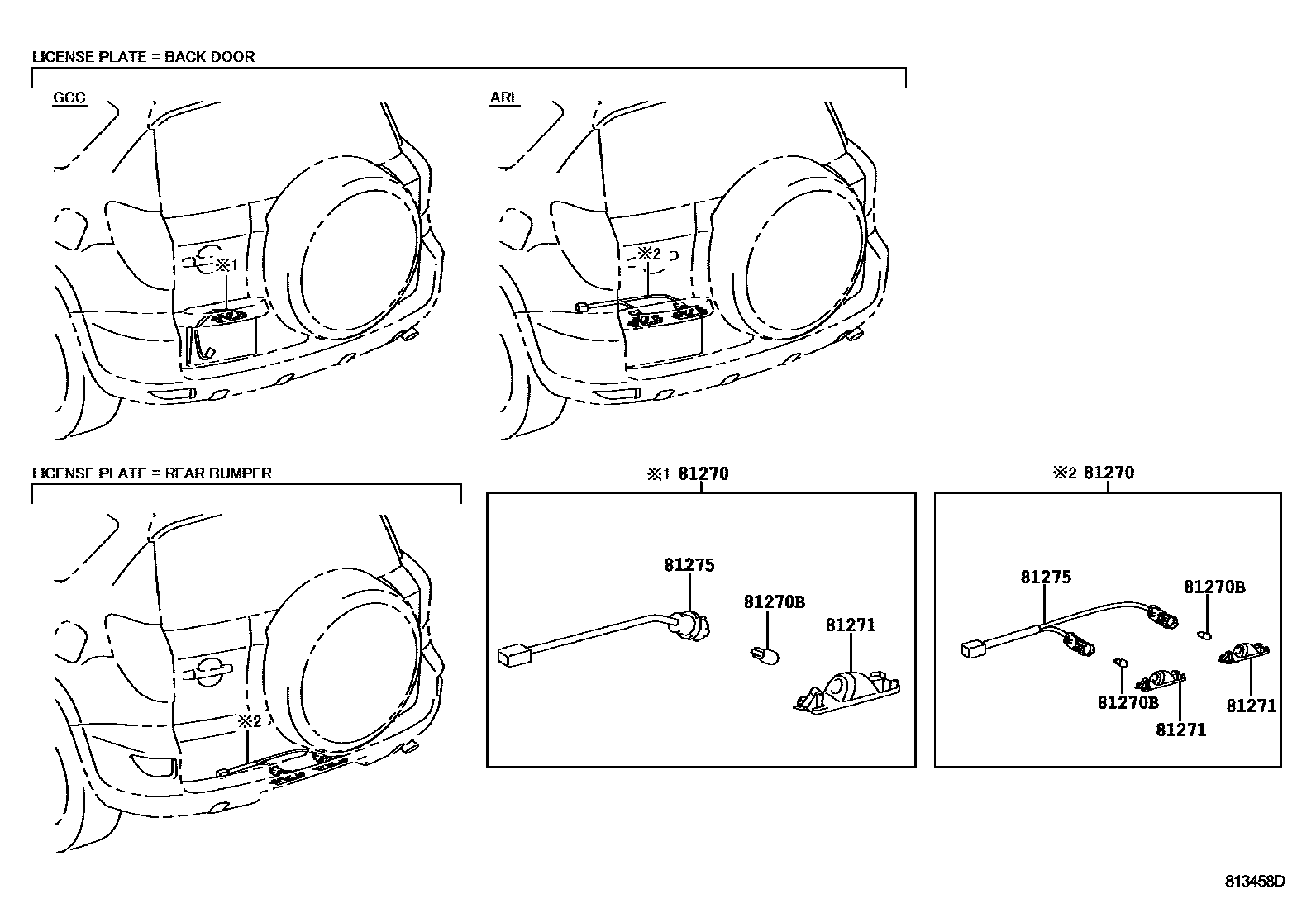

Toyota RAV4 — REAR LICENSE PLATE LAMP

0001 1W(BACK DOOR SPARE TIRE) 0005 1W/0(BACK DOOR SPARE TIRE)

81270LAMP ASSY, LICENSE PLATE

main81270-42060iALA30..6FC..ATYPE;ALA3#,ZSA3#..G..BTYPE200903-201212

main81270-42070iACA33..GCC200511-200807

sub81270-42100

main81270-42080iACA33..GCC200511-200701

LICENSE PLATE FRAME-WITH(REAR BUMPER),LONG BODY

sub81270-42081

main81270-42081iACA33..GCC200701-200812

LICENSE PLATE FRAME-WITH(REAR BUMPER),LONG BODY

main81270-42081iALA3#,ZSA3#..X..BTYPE;ACA30,33,38,ALA3#,GSA33,ZSA3#..(4FC,5F,5FC,6F,CVFC)..(ARL,EUR,GEN)..ATYPE200808-201212

main81270-42100iACA33..G..GCC200808-201212

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iACA33..X..GCC200511-200812

12V 5W,LICENSE PLATE FRAME-WITH(REAR BUMPER),LONG BODY

main99132-12050iACA33..X..GCC200511-201212

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-42050iACA33..X..GCC200511-200812

LICENSE PLATE FRAME-WITH(REAR BUMPER),LONG BODY

main81271-42050iALA3#,ZSA3#..X..BTYPE;ACA30,33,38,ALA3#,GSA33,ZSA3#..(4FC,5F,5FC,6F,CVFC)..(ARL,EUR,GEN)..ATYPE200808-201212

main81271-42070iACA33..X..GCC200511-201212

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-42060iALA30..6FC..ATYPE;ALA3#,ZSA3#..G..BTYPE200903-201212

main81275-42070iACA33..GCC200511-200808

main81275-42080iACA30,31,ALA30200511-200812

LICENSE PLATE FRAME-WITH(REAR BUMPER),LONG BODY

main81275-42080iALA3#,ZSA3#..X..BTYPE;ACA30,33,38,ALA3#,GSA33,ZSA3#..(4FC,5F,5FC,6F,CVFC)..(ARL,EUR,GEN)..ATYPE200808-201212

main81275-42100iACA33..G..GCC200808-201212

4 parts on this diagram · 2 diagrams in section
