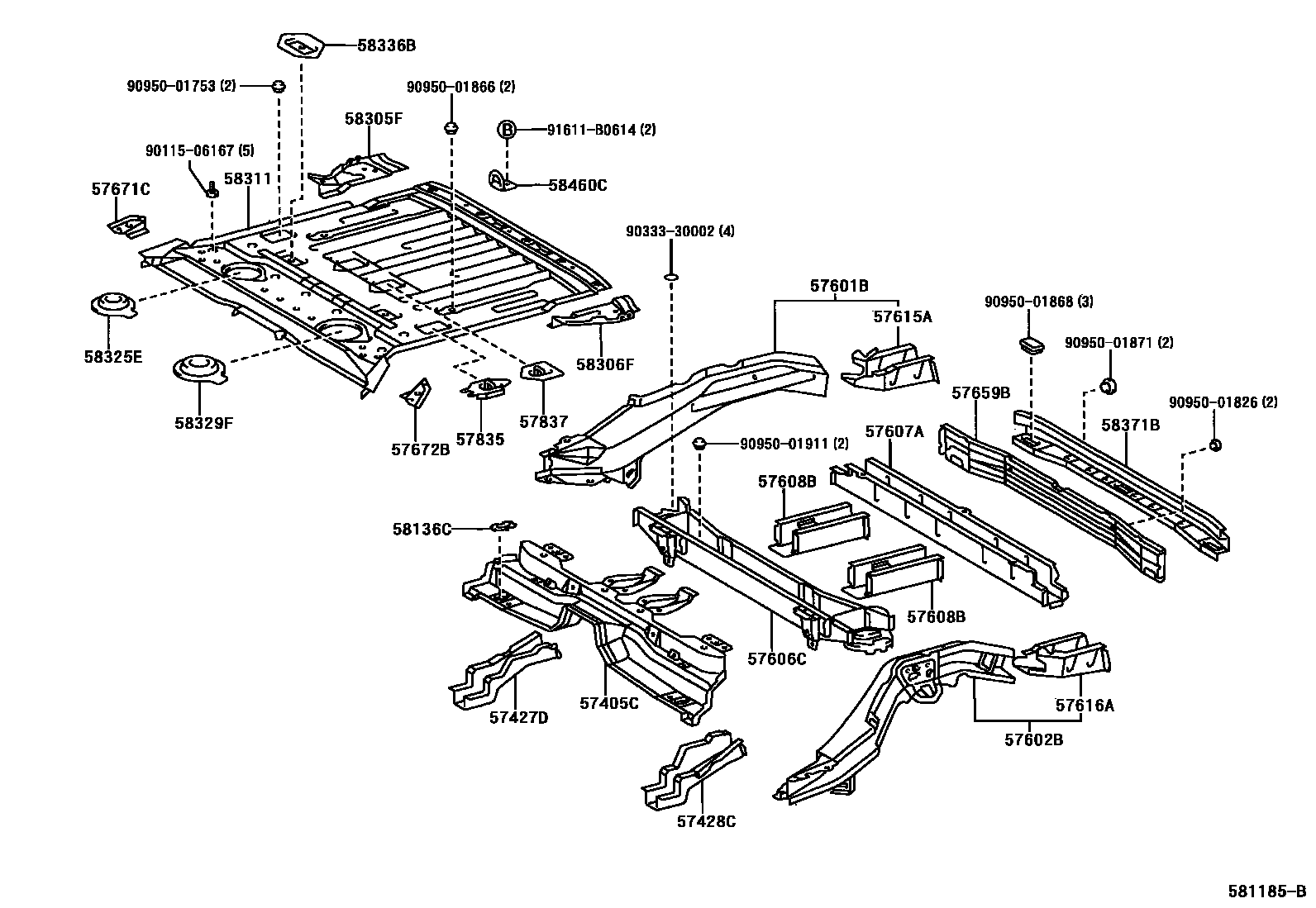

Toyota RAV4 — REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 13D 0002 15D

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-42010iACA20,CLA20,ZCA25200005-200307

main57405-42020iACA21,CLA21,ZCA26200005-200307

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-42050iACA20,CLA20,ZCA25200005-200307

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-42040iACA20,CLA20,ZCA25200005-200307

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42090iACA21,CLA21,ZCA26200005-200307

main57601-42100iACA20,CLA20,ZCA25200005-200307

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42090iACA21,CLA21,ZCA26200005-200307

main57602-42100iACA20,22,CLA20,ZCA25200005-200307

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42070iACA2#,CLA2#,ZCA2#200005-200307

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42050iACA2#,CLA2#,ZCA2#200005-200307

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-42020iACA2#,CLA2#,ZCA2#200005-200307

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-42903iACA21,23,CLA21,ZCA26200005-200307

main57615-42904iACA20,CLA20,ZCA25200005-200307

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-42903iACA21,CLA21,ZCA26200005-200307

main57616-42904iACA20,CLA20,ZCA25200005-200307

57659BMEMBER, REAR FLOOR CROSS, REAR INNER

main57659-42030iACA2#,CLA2#,ZCA2#200005-200307

57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

main57671-42030iACA20,CLA20,ZCA25200005-200307

57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57672-42030iACA20,CLA20,ZCA25200005-200307

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-42010iACA21,CLA21,ZCA26200005-200307

sub57835-42011

main57835-42020iACA20,CLA20,ZCA25200005-200307

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-42010iACA20,CLA20,ZCA25200005-200307

58136CCOVER, REAR FLOOR HOLE

main58136-30040iACA20,ZCA25200005-200009

main58136-51010iACA21,ZCA26200005-200307

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-42020iACA21,CLA21,ZCA26200005-200307

main58305-42030iACA20,22,CLA20,ZCA25200005-200307

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-42040iACA21,23,CLA21,ZCA26200005-200307

main58306-42050iACA20,22,CLA20,ZCA25200005-200307

58311PAN, REAR FLOOR

main58311-42900iACA21,23,CLA21,ZCA26200005-200401

sub58311-42902

main58311-42901iACA20,CLA20,ZCA25200005-200307

main58311-42902iACA21,23,CLA21,ZCA26200401

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-42030iACA2#,CLA2#,ZCA2#200005-200307

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-42030iACA2#,CLA2#,ZCA2#200005-200307

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-42040iACA2#,CLA2#,ZCA2#200005-200307

58371BPANEL, BODY LOWER BACK, OUTER

main58371-42030iACA2#,CLA2#,ZCA2#200005-200307

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012iACA20,CLA20,ZCA25200005-200307

9011506167

main90115-06167

9033330002

main90333-30002

9095001753

main90950-01753

9095001826

main90950-01826

9095001866

main90950-01866

9095001868

main90950-01868

9095001871

main90950-01871

9095001911

main90950-01911

91611B0614

main91611-B0614

33 parts on this diagram · 2 diagrams in section
