Toyota RAV4 — REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iACA3#,ALA30200511-200609

sub68750-20121

main68750-20121iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200610-201206

sub68750-20122

main68750-20122iACA3#,ALA3#,GSA33,ZSA3#201207-201212

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iACA3#,ALA30200511-200609

sub68760-20121

main68760-20121iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200610-201206

sub68760-20122

main68760-20122iACA3#,ALA3#,GSA33,ZSA3#201207-201212

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iACA3#,ALA30200511-200609

sub68770-52031

main68770-52031iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200610-201212

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iACA3#,ALA30200511-200609

sub68780-52031

main68780-52031iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200610-201212

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53010iACA3#,ALA30,GSA33200511-201212

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53010iACA3#,ALA30,GSA33200511-201212

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iACA3#,ALA30,GSA33200511-201212

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

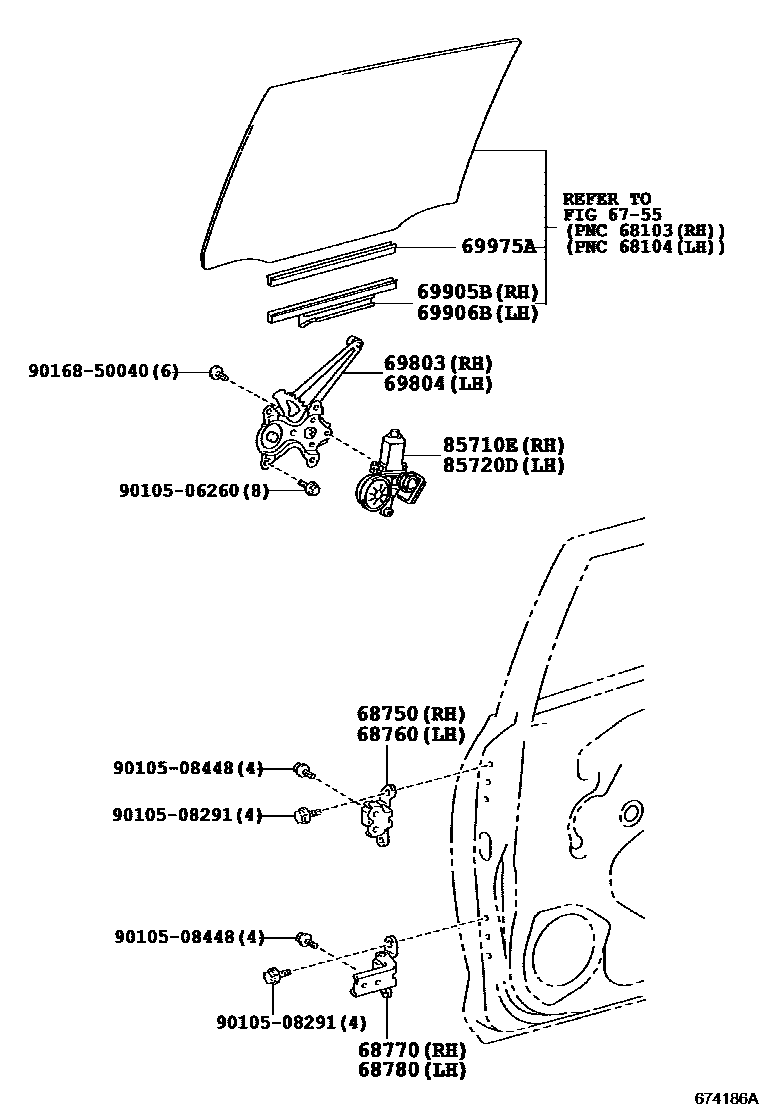

16 parts on this diagram · 1 diagram in section
