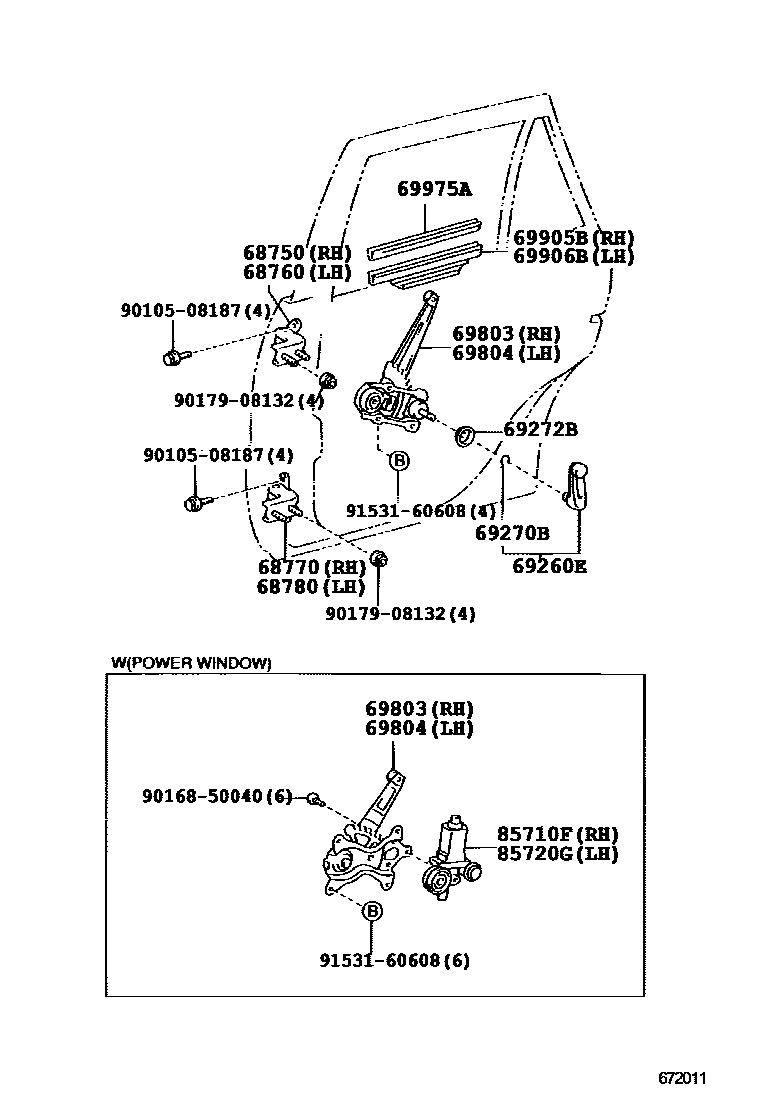

Toyota RAV4 — REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
W(POWER WINDOW)
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
W(POWER WINDOW)
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
9010508187
main90105-08187
9016850040
main90168-50040
9017908132
main90179-08132
9153160608
main91531-60608
18 parts on this diagram · 1 diagram in section
