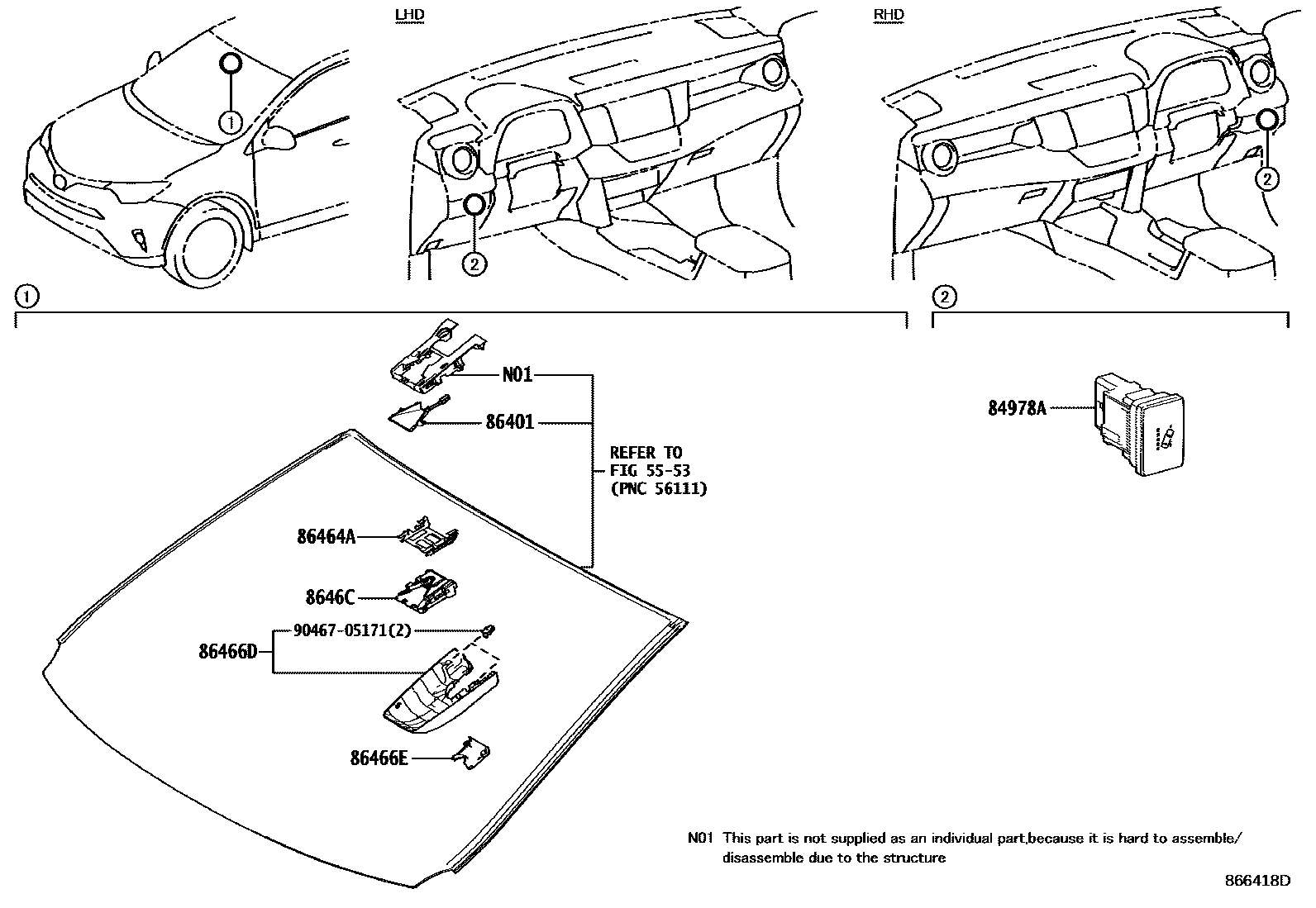

Toyota RAV4 — PRE-COLLISION SYSTEM

5553

84978ASWITCH, LANE-KEEPING ASSIST MAIN

main84978-42030iALA49,ZSA42..6F..G..ARL201510-201608

PRE-COLLISION SYSTEM-WITH

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48030iZSA42..6F..M..ARL201701-201707

PRE-COLLISION SYSTEM-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-48011iALA49,ZSA42..6F..G..ARL201510-201608

PRE-COLLISION SYSTEM-WITH

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42020iALA49,ZSA42..6F..G..ARL201510-201608

PRE-COLLISION SYSTEM-WITH

main86466-42080iZSA42..6F..M..ARL201701-201707

PRE-COLLISION SYSTEM-WITH

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42030iALA49,ZSA42..6F..G..ARL201510-201608

PRE-COLLISION SYSTEM-WITH

main86466-42090iZSA42..6F..M..ARL201701-201707

PRE-COLLISION SYSTEM-WITH

8646CCAMERA, FORWARD RECOGNITION

main8646C-42010iASA44..6FC..(G,M)..ARL;ALA49,ZSA42..(G,M)..ARL;ASA4#,AVA4#,ZSA42..LHD..(6FC,A)..G..GEN201510-201608

PRE-COLLISION SYSTEM-WITH

main8646C-42020iZSA42..A..G;ALA49,ASA44..6FC..ARL;ASA4#,AVA4#..LHD..G..GEN;ALA49,ZSA42..(M,X)..(DCRE,EFI)..ARL201608-201701

PRE-COLLISION SYSTEM-WITH

main8646C-42021iZSA42..6F..M..ARL201701-201707

PRE-COLLISION SYSTEM-WITH

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
