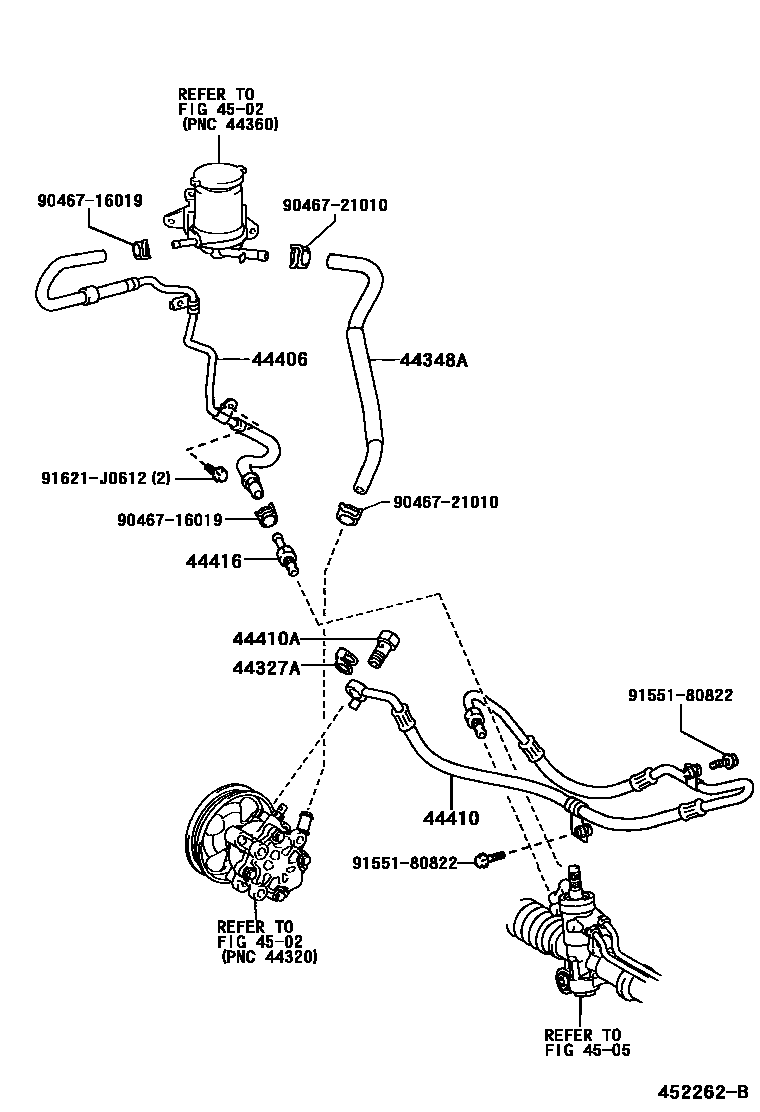

Toyota RAV4 — POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACA2#,CLA2#,ZCA2#200005-200307

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42050iACA2#200005-200307

main44348-42060iZCA2#200005-200307

main44348-42070iCLA2#200105-200307

44406TUBE SUB-ASSY, RETURN

main44406-42080iACA2#,ZCA2#200005-200307

main44406-42090iCLA2#200105-200307

main44406-42100iACA2#,ZCA2#200307

main44406-42110iCLA2#200307

sub44406-42111

44410TUBE ASSY, PRESSURE FEED

main44410-42060iACA2#..RHD200005-200307

main44410-42070iACA2#..LHD200005-200307

main44410-42080iZCA2#..RHD200005-200307

main44410-42090iZCA2#..LHD200005-200307

main44410-42101iCLA2#..RHD200105-200307

main44410-42111iCLA2#..LHD200105-200307

main44410-42120iACA2#..RHD200307

main44410-42130iACA20,21..LHD200307

main44410-42140iZCA2#..RHD200307

main44410-42150iCLA2#..RHD200307

main44410-42160iCLA2#..LHD200307

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iACA2#,CLA2#,ZCA2#200005-200307

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iACA2#,CLA2#,ZCA2#..RHD200005-200510

main44416-60370iACA2#,CLA2#,ZCA2#..RHD200511

4502

4505

9046716019

main90467-16019

9046721010

main90467-21010

9155180822

main91551-80822

91621J0612

main91621-J0612

12 parts on this diagram · 7 diagrams in section
