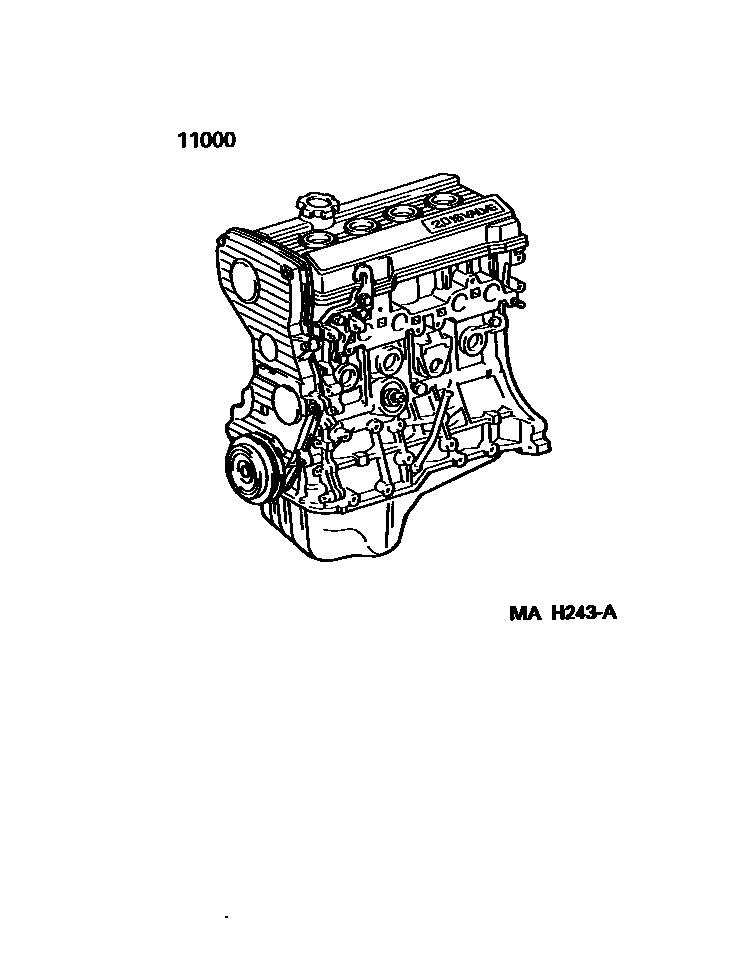

Toyota RAV4 — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-74780i199404-199503

main19000-74781i199503-199709

main19000-74790i199404-199503

main19000-74791i199503-199608

main19000-74800i199404-199503

main19000-74801i199503-199608

main19000-7A170i199608

main19000-7A180i199608

main19000-7A280i199709

1 parts on this diagram · 1 diagram in section
